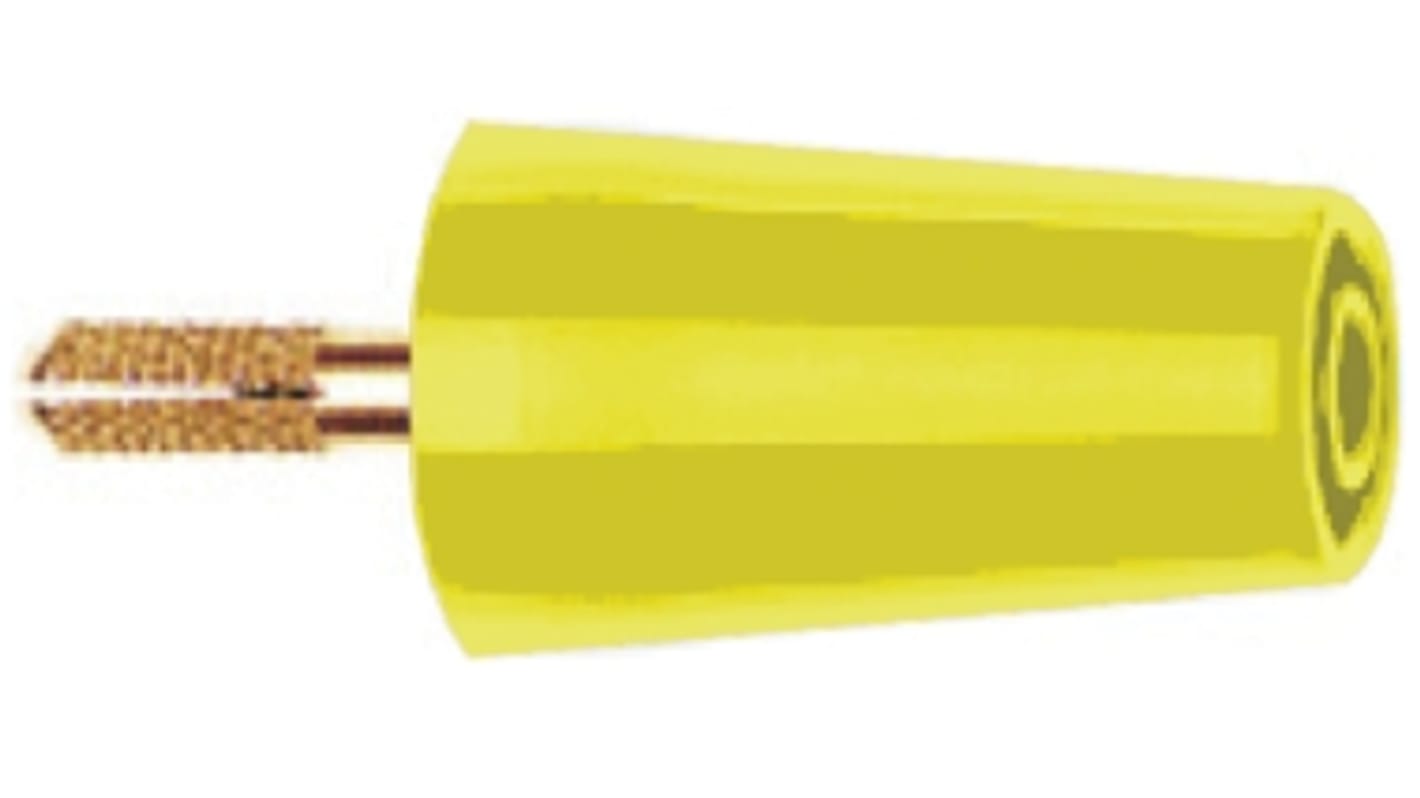

Staubli Yellow, Male to Female Test Connector Adapter With Brass contacts and Gold Plated - Socket Size: 4mm
- RS 제품 번호:
- 726-0644
- 제조사 부품 번호:
- 24.0160-24
- 제조업체:
- Staubli
일시 품절-다음 입고 날짜는 12/08/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩16,336.528
| 수량 | 한팩당 |
| 1 - 14 | ₩16,336.528 |
| 15 - 49 | ₩15,846.656 |
| 50 - 99 | ₩15,358.51 |
| 100 - 249 | ₩15,030.779 |
| 250 + | ₩14,703.048 |
- RS 제품 번호:
- 726-0644
- 제조사 부품 번호:
- 24.0160-24
- 제조업체:
- Staubli
제정법과 컴플라이언스
- COO (Country of Origin):
- CH
제품 세부 사항
4mm Screw-Clamping Adaptors, CAT II - A-SLK4 Series
4mm screw clamping adapters that can be screw mounted into 4mm diameter sockets. These screw mounting adapters have an expandable 4mm diameter plug that can be locked into the socket by tightening a grub screw. Once assembled, these screw mounting adapters offer complete touch-proof protection. The 4mm diameter socket accepts spring loaded 4mm diameter plugs.
사양
속성 | 값 |
|---|---|
| Colour | Yellow |
| Plug Size | 4mm |
| Socket Size | 4mm |
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 32A |
| Voltage Rating | 1kV |
| Gender | Male to Female |
