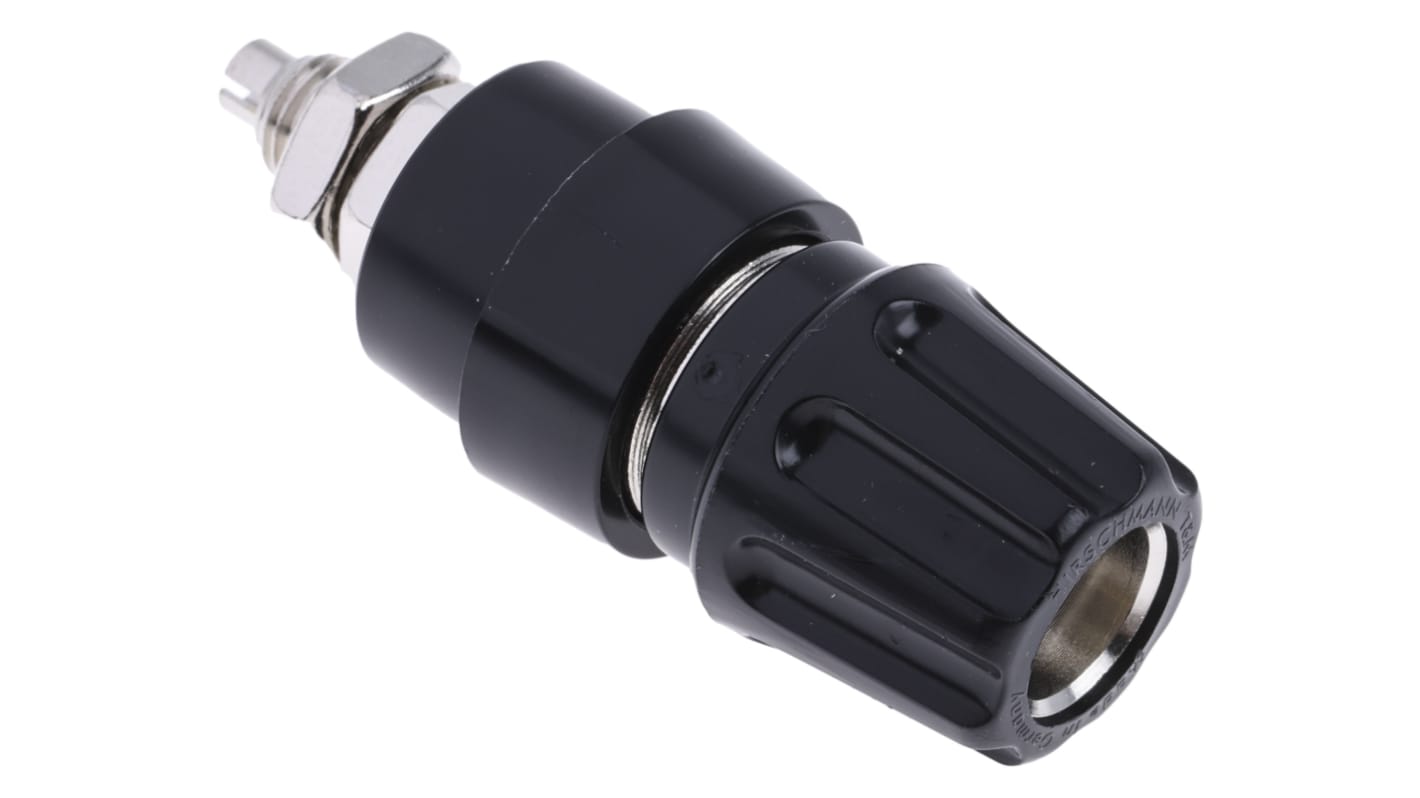

Hirschmann Test & Measurement 4mm Black Terminal Post, 60V dc, 63A, M6 x 0.75 Thread

RS 제품 번호:: 190-2593
제조사 부품 번호:: 930136100
제조업체:: Hirschmann Test & Measurement

Hirschmann Test & Measurement 4mm Black Terminal Post, 60V dc, 63A, M6 x 0.75 Thread

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

일시 품절-문의: krenquiry@rs-components.com

추가완료!

단가 1000 박스 1개

₩14,133,828.875

Box(es)	Per Box	한팩당*
1 - 1	₩14,133,828.875	₩14,133.831
2 - 3	₩13,822,886.327	₩13,823.349
4 +	₩13,526,075.884	₩13,526.666
*다른 단위에 대한 가격 표시

RS 제품 번호:: 190-2593
제조사 부품 번호:: 930136100
제조업체:: Hirschmann Test & Measurement

참조 문서

9301361xx Datasheet

제정법과 컴플라이언스

제품 세부 사항

PKNI 10 B, CAT I 4mm Chassis Mount Test Socket

Hirschmann Test and Measurement PKNI10 B, CAT I 4mm gold plated chassis mount test sockets with pole clamp-claw edge, captive-insulated head and insulating ring. Incorporates a 4mm socket and an M6 ´ 0.75mm threaded nickel plated brass bolt with 2.6mm diameter transverse hole for wire connection. For insulated non-rotating installation in equipment chassis and switch panels up to 3.5mm wall thickness.

Rated voltage 30 VAC/ 60 VDC
Rated Current 63A
CAT I
Screw mounting
M6 Termination Thread

Hirschmann Test & Measurement Test Socket

The Hirschmann Test & Measurement black chassis mount test socket has gold plating, a pole clamp-claw edge, captive-insulated head and an insulating ring. It incorporates a 4mm socket and an M6 x 0.75mm threaded nickel-plated brass bolt with a transverse hole of 2.6mm diameter for wire connection. It has a voltage rating of 30VAC/60VDC and a current rating of 63A.

Features and Benefits

Screw mounting
Hole diameter of 4mm
Body material is phenolic resin
Maximum panel thickness of 3.5mm
Contact resistance is 2mohm

Certifications

CAT I
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

사양

속성	값
Colour	Black
Hole Diameter	4mm
Current Rating	63A
Thread Size	M6 x 0.75
Voltage Rating	60V dc
Insulated	Yes
Body Material	Phenolic Resin
Maximum Panel Thickness	3.5mm
