- RS 제품 번호:
- 827-5432
- 제조사 부품 번호:
- 5343A
- 제조업체:
- PR Electronics
일시 품절-다음 입고 날짜는 05/06/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩229,587.64
수량 | 한팩당 |
1 + | ₩229,587.64 |
- RS 제품 번호:
- 827-5432
- 제조사 부품 번호:
- 5343A
- 제조업체:
- PR Electronics
제정법과 컴플라이언스
- COO (Country of Origin):
- DK
제품 세부 사항

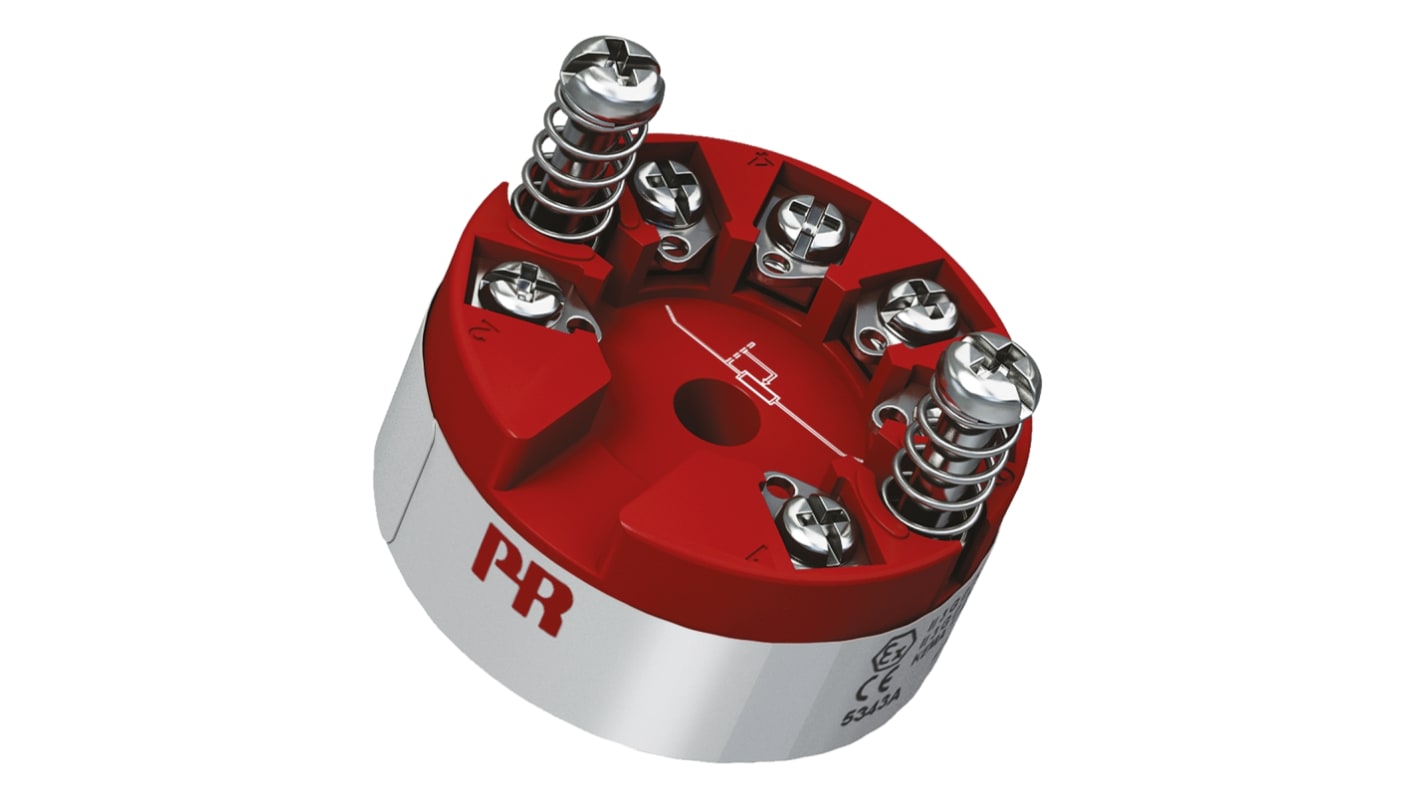

5343 Type - 2-wire Level Transmitter
5343A and 5343B is a 2-wire level transmitter and is for conversion of resistance variation to standard analog current signals, e.g. from ohmic level sensors or valve positions.
Features and Benefits
Two version of 5343 type:
- 5343A is the Standard type (stock-no. 827-5432)
- 5343B is the version with ATEX, FM, IECEx & INMETRO (stock-no. 796-7127)
Potentiometer or Ohmic input
Programmable sensor error value
High measurement accuracy
Unique process calibration function
User-defined linearization function can be activated
The transmitter is protected against polarity reversal
Programmable via standard PC, the PReset software and the communications interface Loop Link (stock-no. 796-7020)
Mounting into DIN form B sensor head
- 5343A is the Standard type (stock-no. 827-5432)
- 5343B is the version with ATEX, FM, IECEx & INMETRO (stock-no. 796-7127)
Potentiometer or Ohmic input
Programmable sensor error value
High measurement accuracy
Unique process calibration function
User-defined linearization function can be activated
The transmitter is protected against polarity reversal
Programmable via standard PC, the PReset software and the communications interface Loop Link (stock-no. 796-7020)
Mounting into DIN form B sensor head
PR Electronics DIN Rail Mounting
사양
속성 | 값 |
---|---|
Input Type | Potentiometer |
Supply Voltage | 8 → 35 V dc |
Diameter | 44 mm |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Series | 5300 |
Depth | 20.2mm |
