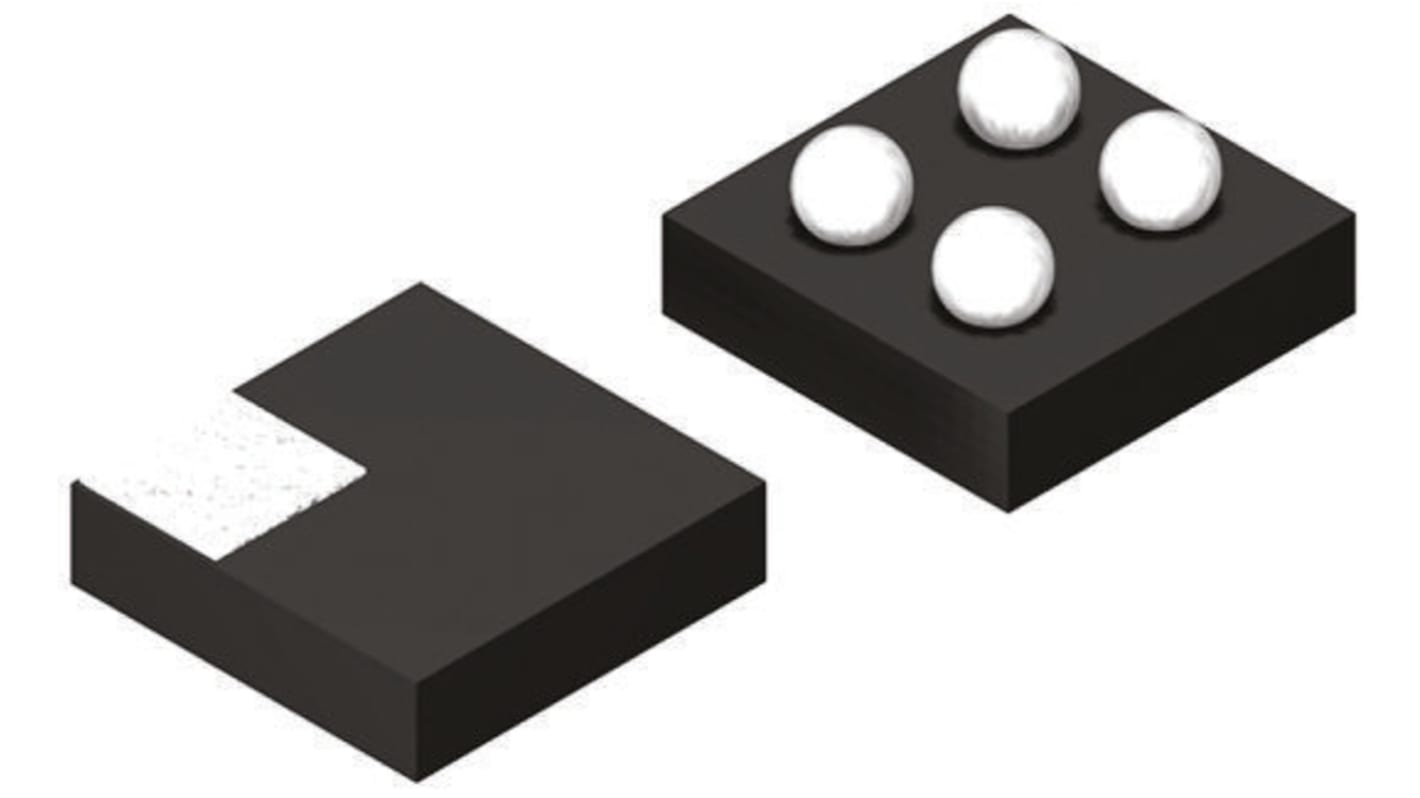

Texas Instruments Temperature Sensor, Digital Output, Surface Mount, Serial-I2C, SMBus, ±3°C, 4 Pins
- RS 제품 번호:
- 739-8036P
- 제조사 부품 번호:
- TMP103AYFFT
- 제조업체:
- Texas Instruments
20 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당(릴로 공급됨) 150pcs 이하는 STRIP 포장
₩2,218.221
수량 | 한팩당 |
65 - 120 | ₩2,218.221 |
125 + | ₩2,169.924 |
- RS 제품 번호:
- 739-8036P
- 제조사 부품 번호:
- TMP103AYFFT
- 제조업체:
- Texas Instruments
제정법과 컴플라이언스
제품 세부 사항
2-Wire Digital Temperature Sensors
Texas Instrument's range of 2-wire digital temperature sensors all come with an on-chip ADC. Many have the possibility to measure the temperature of multiple devices and feature SMBus and I²C compatible interfaces.
The sensors are suitable for a variety of applications such as mobile phones, notebook computers, thermal system management and environmental monitoring and HVAC.
The sensors are suitable for a variety of applications such as mobile phones, notebook computers, thermal system management and environmental monitoring and HVAC.
Features;
2-wire operation
Shutdown Mode
Programmable temperature resolution varying between 9 to 14 bits (device dependent)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Sensor Function | Temperature |
Output Type | Digital |
Interface Type | Serial-I2C, SMBus |
Accuracy | ±3°C |
Mounting Type | Surface Mount |
Pin Count | 4 |
Operating Temperature Range | -55 → +150 °C |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Minimum Operating Supply Voltage | 1.4 V |
Maximum Operating Supply Voltage | 3.6 V |
Package Type | DSBGA |
Length | 0.79mm |
Height | 0.33mm |
Width | 0.79mm |
Dimensions | 0.79 x 0.79 x 0.33mm |
Resolution | 8 bit |
