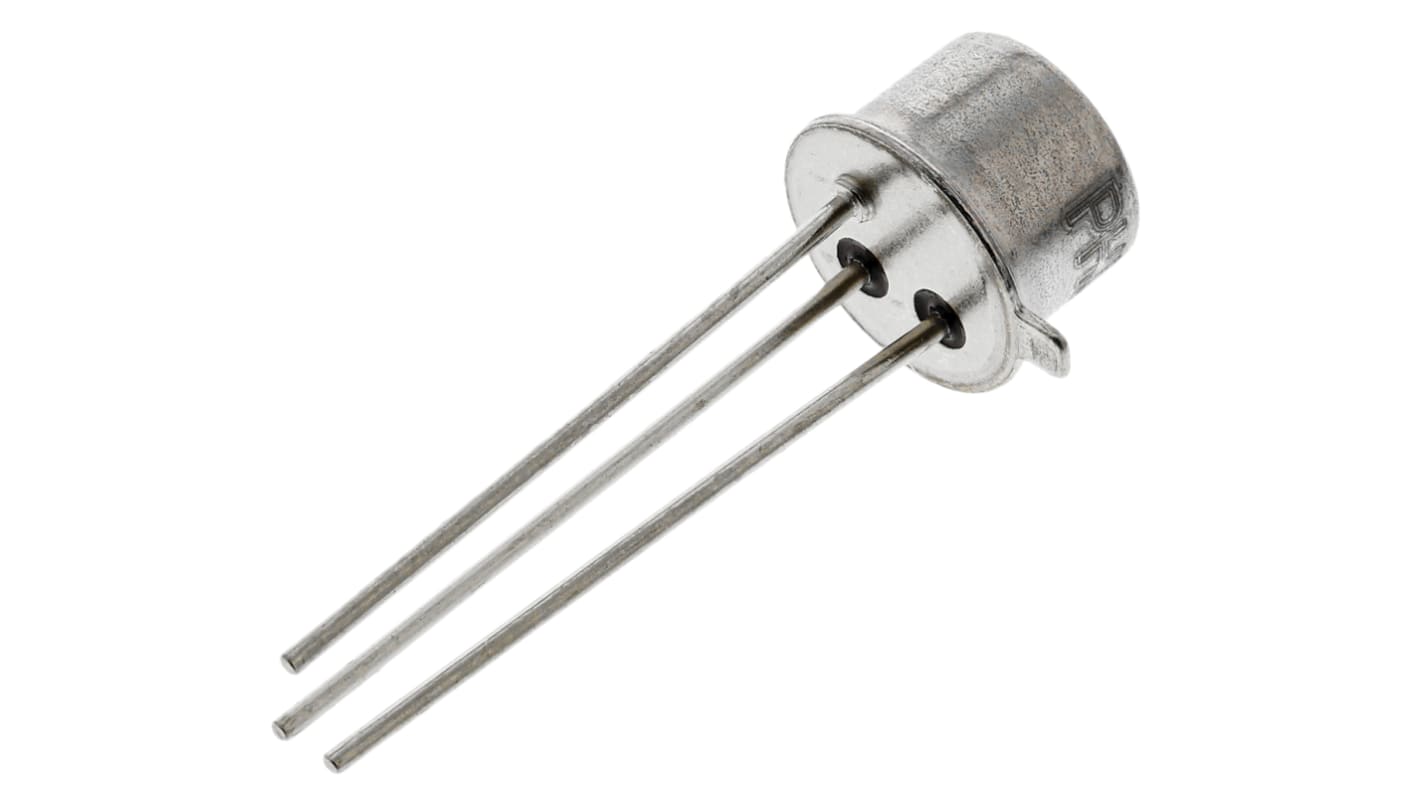

Analog Devices Temperature Sensor, Current Output, Through Hole Mount, ±1°C, 3 Pins
- RS 제품 번호:
- 709-2750P
- 제조사 부품 번호:
- AD590LH
- 제조업체:
- Analog Devices
단종
- RS 제품 번호:
- 709-2750P
- 제조사 부품 번호:
- AD590LH
- 제조업체:
- Analog Devices
제정법과 컴플라이언스
제품 세부 사항
AD590 Temperature Sensor
The AD590 temperature sensor is useful in remote sensing applications because the device is insensitive to voltage drops over long lines due to its high impedance current output. A twisted-pair cable is sufficient for operation many metres from the receiving circuitry. The AD590 acts as a constant-current source, producing an output current that is proportional to absolute temperature, requiring only a DC voltage supply.
Two-terminal device
Linear current output: 1μA/K
Measurement temperature range: -55 to +150°C
Power supply: +4V to +30Vdc
Linear current output: 1μA/K
Measurement temperature range: -55 to +150°C
Power supply: +4V to +30Vdc
Temperature & Humidity Sensors, Analog Devices
사양
속성 | 값 |
|---|---|
| Sensor Function | Temperature |
| Output Type | Current |
| Accuracy | ±1°C |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Minimum Operating Temperature | -55 °C |
| Operating Temperature Range | -55 → +150 °C |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Supply Voltage | 4 V |
| Maximum Operating Supply Voltage | 30 V |
| Package Type | TO-52 |
| Length | 5.84mm |
| Height | 3.81mm |
| Width | 5.84mm |
| Dimensions | 5.84 x 5.84 x 3.81mm |
