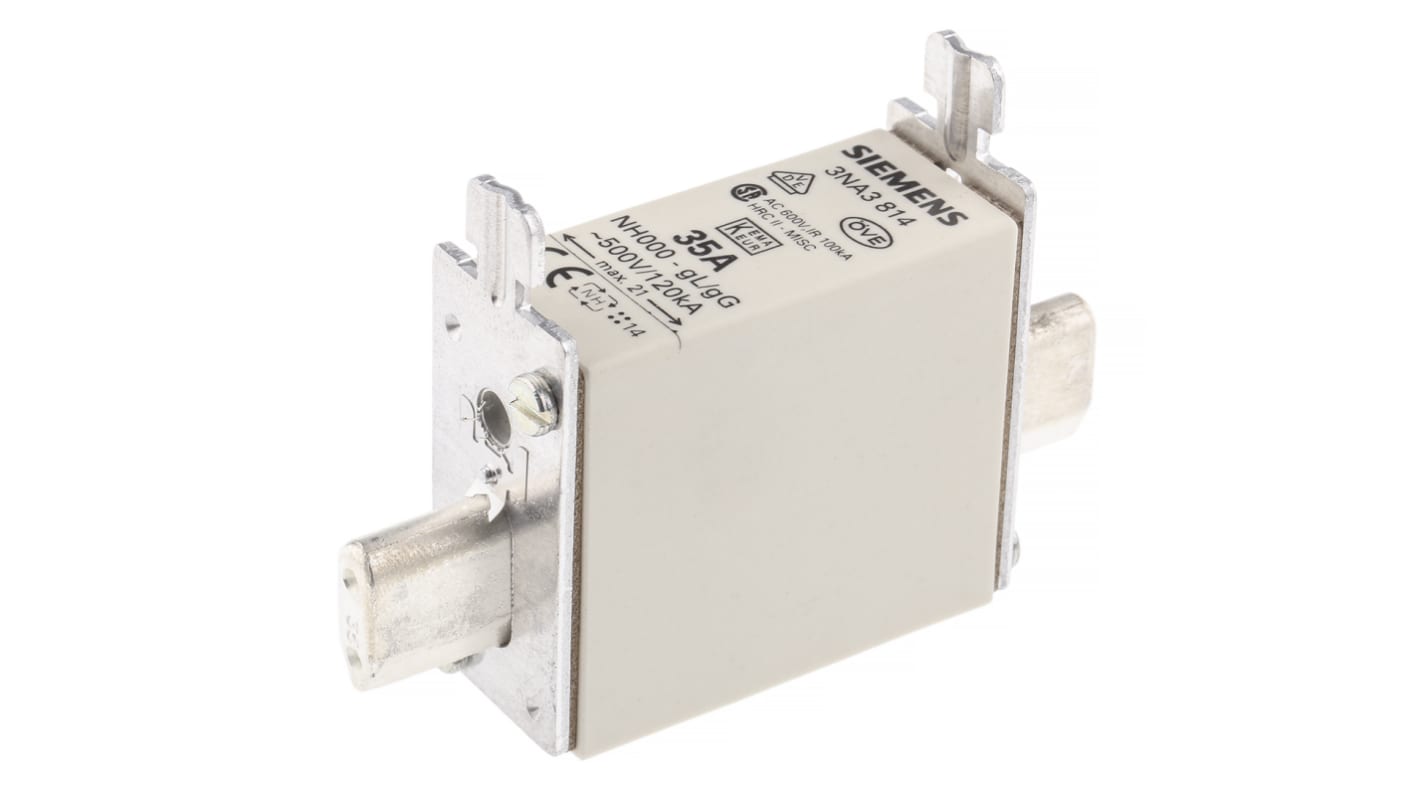

Siemens 35A NH Fuse, NH000, 500V ac
- RS 제품 번호:
- 395-913
- 제조사 부품 번호:
- 3NA3814
- 제조업체:
- Siemens
21 <재고있음> 5-9영업일내 홍콩 발송
87 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(3개가 1팩안에)
₩8,759.042
| 수량 | 한팩당 | 한팩당* |
| 3 - 147 | ₩8,759.042 | ₩26,277.127 |
| 150 - 747 | ₩8,408.888 | ₩25,226.663 |
| 750 + | ₩8,058.733 | ₩24,174.474 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 395-913
- 제조사 부품 번호:
- 3NA3814
- 제조업체:
- Siemens
참조 문서
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- GR
제품 세부 사항
NH Fuse Links, 3NA3 Series, Size 000, Type gG
NH fuse links with front indicator
The front-face red indicator signals when the fuse cuts out
Operating class gG (for cable and line protection)
For selective line protection and system protection in functional building, industry and power supply companies
The front-face red indicator signals when the fuse cuts out
Operating class gG (for cable and line protection)
For selective line protection and system protection in functional building, industry and power supply companies
Standards
IEC 60269-1, IEC 60269-2, EN 60269-1
Approvals
DIN VDE 0636, DIN VDE 0636-2, CSA 22.2 No. 106
Approvals
DIN VDE 0636, DIN VDE 0636-2, CSA 22.2 No. 106
Standards
IEC 60269-1, IEC 60269-2, EN 60269-1
사양
속성 | 값 |
|---|---|
| Current Rating | 35A |
| Fuse Size | NH000 |
| Voltage Rating | 500V ac |
| Fuse Standard | CSA 22.2 No.106 File No. 1710842, DINVDE 0636, DINVDE 0636-2, EN 60269-1, IEC 60269-1, IEC 60269-2 |
| Application Category | gG |
| High Rupture Capacity | Yes |
| Overall Length | 80mm |
| Tag Type | Blade |
| Tag Orientation | Centred |
| Body Length | 54mm |
| Body Width | 21mm |
