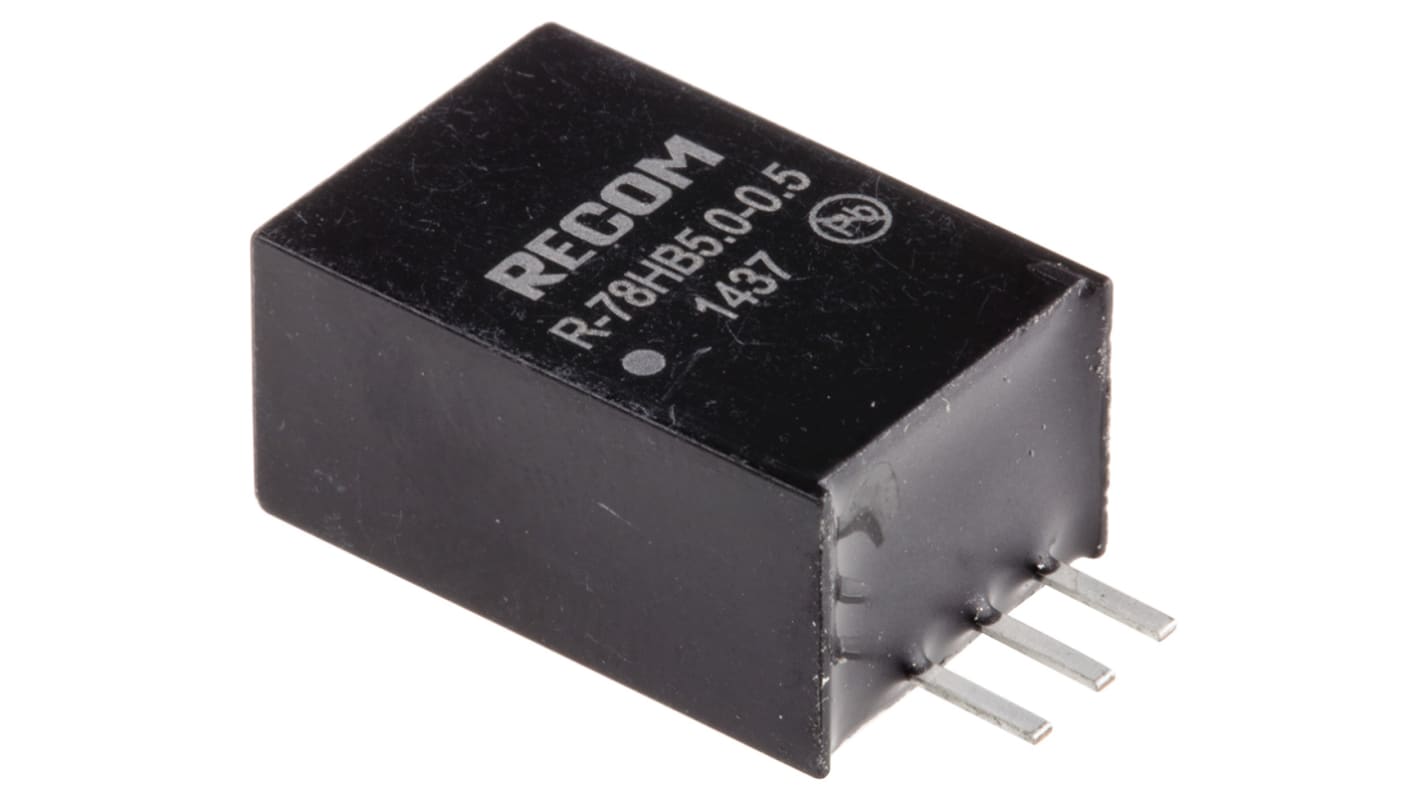

Recom Switching Regulator, Through Hole, 5V dc Output Voltage, 9 → 72V dc Input Voltage, 500mA Output Current, 1
- RS 제품 번호:
- 166-9046
- 제조사 부품 번호:
- R-78HB5.0-0.5
- 제조업체:
- Recom
- RS 제품 번호:
- 166-9046
- 제조사 부품 번호:
- R-78HB5.0-0.5
- 제조업체:
- Recom
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- TW
제품 세부 사항
R78HBxx-0.5 Series
Non-isolated
Medical safety approval EN-60601-1-2
High efficiency switching regulator, up to 96%
No need for heatsinks
Very wide input voltage range, up to 72V
Low ripple and noise
Thermal shutdown and continuous short circuit protection
Pin compatible with LM78xx Linears
Industry standard SIP-3 package
Medical safety approval EN-60601-1-2
High efficiency switching regulator, up to 96%
No need for heatsinks
Very wide input voltage range, up to 72V
Low ripple and noise
Thermal shutdown and continuous short circuit protection
Pin compatible with LM78xx Linears
Industry standard SIP-3 package
Note
Derate output when operating temperature above 71°C.
MTBF to MIL-HDBK-217F (25°C).
MTBF to MIL-HDBK-217F (25°C).
Standards
EN-55022, EN-55024, EN-60601-1-2, EN-60950-1
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Output Voltage | 5V dc |
Output Current | 500mA |
Input Voltage | 9 → 72V dc |
Mounting Type | Through Hole |
Number of Outputs | 1 |
Package | SIP |
Power Rating | 2.5W |
Efficiency | 81% |
Ripple And Noise | 20mV Pk-Pk |
Maximum Temperature | +85°C |
Minimum Temperature | -40°C |
Series | R-78HB-0.5 |
Line Regulation | ±1% |
Depth | 17.5mm |
Length | 11.5mm |
Weight | 4g |
MTBF | 7395000h |
Width | 8.5mm |
Load Regulation | ±0.6% |
