- RS 제품 번호:
- 843-0787
- 제조사 부품 번호:
- 28962
- 제조업체:
- Parallax Inc
일시 품절-다음 입고 날짜는 07/05/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩905,558.701
수량 | 한팩당 |
1 - 4 | ₩905,558.701 |
5 + | ₩815,003.176 |
- RS 제품 번호:
- 843-0787
- 제조사 부품 번호:
- 28962
- 제조업체:
- Parallax Inc
제정법과 컴플라이언스
- COO (Country of Origin):
- US
제품 세부 사항

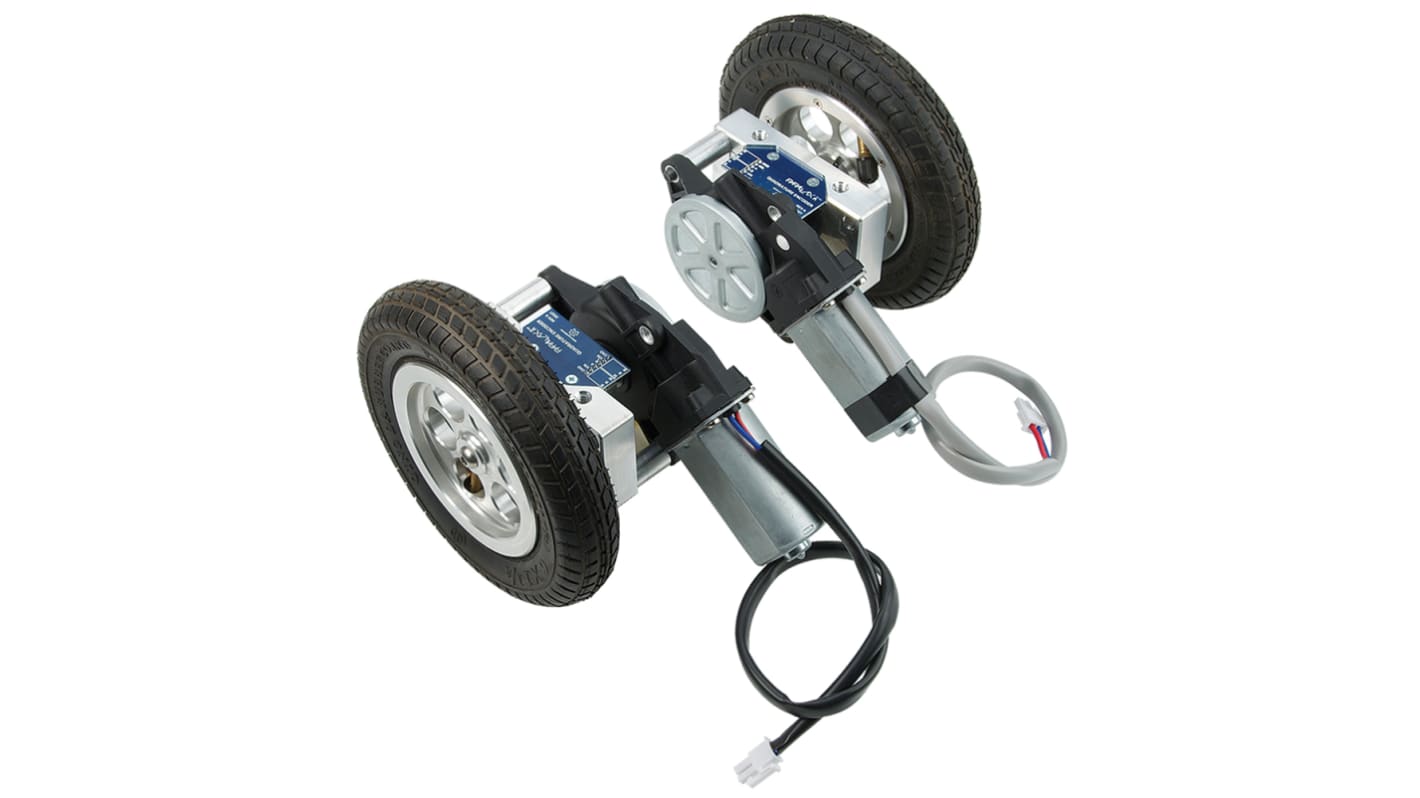

Arlo Mobile Robot Wheel Kit
The Parallax motor mount is the wheel kit for the other two kits. This motor is the aluminium version so it provides a toughened chassis over the plastic. It can hold a total of 27kg with rugged tyres. Two independent motors drive the wheels so you can get the odometry feedback of your choice.
The Arlo robot is a mobile robot design to carry payloads. It is an indoor robot and uses a microcontroller for control. It is highly customizable with sensors and computers.
The Arlo robot is a mobile robot design to carry payloads. It is an indoor robot and uses a microcontroller for control. It is highly customizable with sensors and computers.
Features and benefits:
Aluminium makes for a tough chassis with an increased payload support.
36-step optical slotted disk with quadrature output on each axle.
Rugged inner-tubed tyres pneumatic tyres
Maximum payload of 27KG
Torque of 85lbs per motor assembly
Wheel rotation with no load: 100rpm
36-step optical slotted disk with quadrature output on each axle.
Rugged inner-tubed tyres pneumatic tyres
Maximum payload of 27KG
Torque of 85lbs per motor assembly
Wheel rotation with no load: 100rpm
Whats in the kit?
Two 12 VDC Motors. (Left & Right)
36 Position quadrature encoder set
Two motor bearing blocks.
Two Main rims
Two rim rings
Two robot drive axles
Two 1/8 x 1 Roll Pink
Two Knobby tires with rubber tube
Two 0.5 ID x 1.125 OD Ball Bearing
Two Hex keys (5mm & 5/32)
All screws and spacers.
36 Position quadrature encoder set
Two motor bearing blocks.
Two Main rims
Two rim rings
Two robot drive axles
Two 1/8 x 1 Roll Pink
Two Knobby tires with rubber tube
Two 0.5 ID x 1.125 OD Ball Bearing
Two Hex keys (5mm & 5/32)
All screws and spacers.
Supplied with
All necessary screws and spacers
The Arlo Robotic System provides the basic hardware to build a mid-size robotics platform ideal for telepresence and autonomous robots. The format is one of a two-wheeled buggy with castors fore and aft. The user can then attach the processor board, motor control boards and sensor/actuator modules to suit their application.
사양
속성 | 값 |
---|---|
Series | Arlo |
Motion Component Type | Wheel Add-On Kit |
