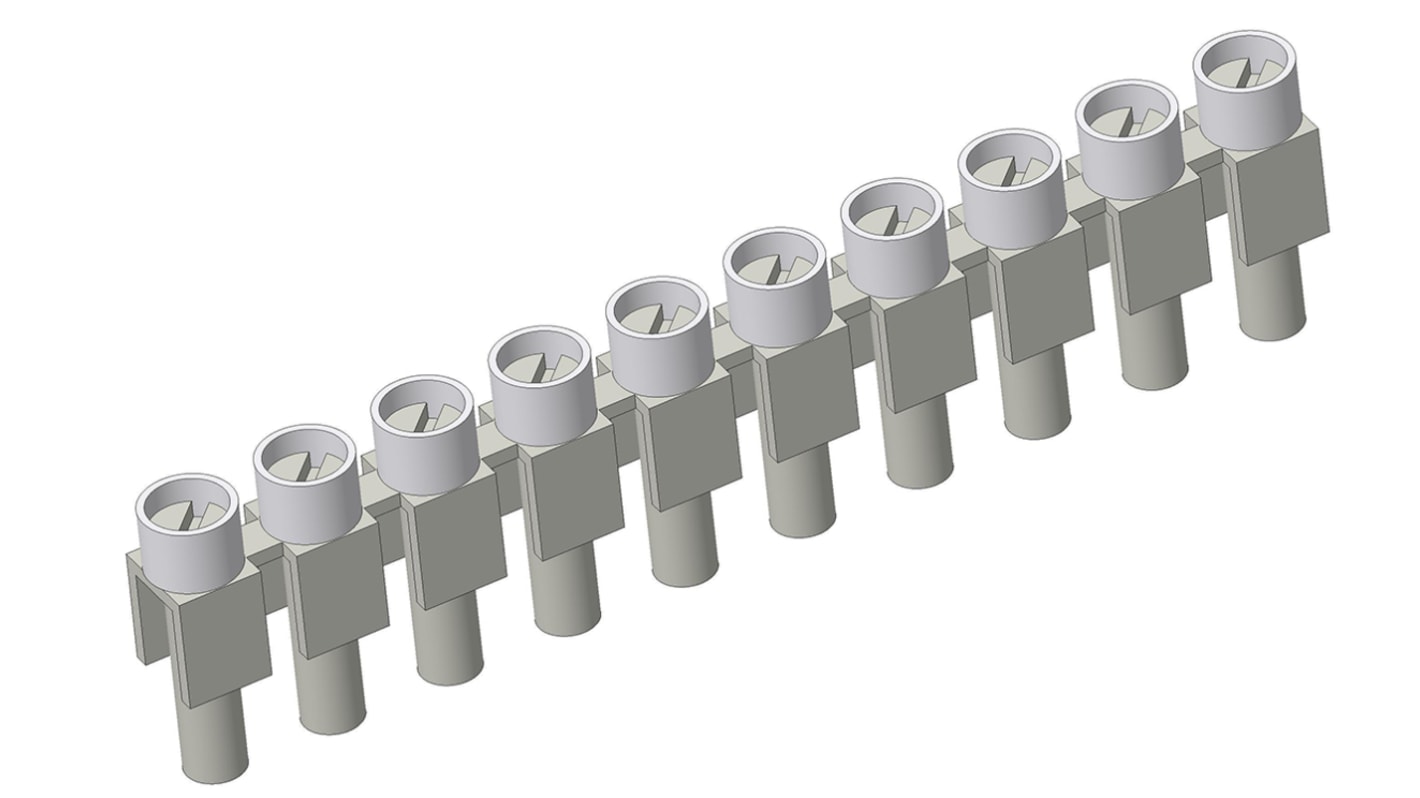

ETA X Series BUS Connector
- RS 제품 번호:
- 729-2861
- 제조사 부품 번호:
- X222.232.01 BUS CONNECTION
- 제조업체:
- ETA
18 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩31,112.021
| 수량 | 한팩당 |
| 1 - 99 | ₩31,112.021 |
| 100 - 499 | ₩29,868.368 |
| 500 + | ₩28,683.362 |
- RS 제품 번호:
- 729-2861
- 제조사 부품 번호:
- X222.232.01 BUS CONNECTION
- 제조업체:
- ETA
제정법과 컴플라이언스
제품 세부 사항
Thermal Automotive Circuit-Breaker, 1180 Series
IEC classification S/TO,Miniaturised single pole circuit breaker with switching (push-push) function. Reliable snap action and trip-free mechanism. The blade terminals fit into the optional DIN rail sockets. An optional DIN rail socket maybe used. The socket has screw terminals up to 6mm² cable. Sockets are 8·2mm wide, 64 x 42·5 x 8·2mm.
Breaking Capacity: 250Vac - 2000A, 60Vdc - 200A
Typical life 3000 (1xIN resistive); 500 (2xIN inductive) Operations
Typical life 3000 (1xIN resistive); 500 (2xIN inductive) Operations
Note
when several sockets are banked together each device should be de-rated to 80% of its rating or over rated accordingly.
Approvals
CSA, UL, VDE
Thermal Magnetic Convertible
All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).
사양
속성 | 값 |
|---|---|
| Series | X |
