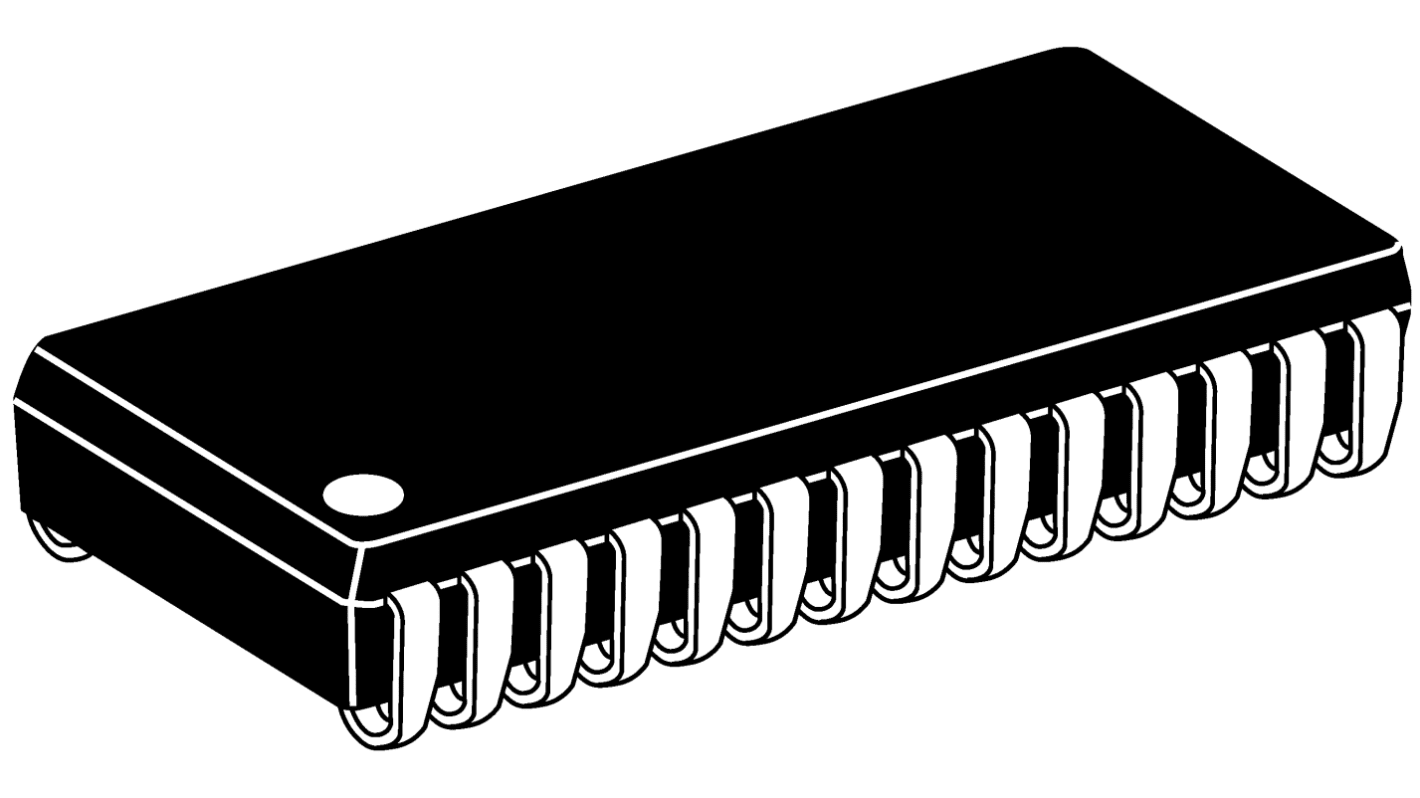

Alliance Memory SRAM, AS7C256A-12JIN- 256kbit
- RS 제품 번호:
- 538-287
- 제조사 부품 번호:
- AS7C256A-12JIN
- 제조업체:
- Alliance Memory
16 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(2개가 1팩안에)
₩4,377.796
| 수량 | 한팩당 | 한팩당* |
| 2 - 4 | ₩4,377.796 | ₩8,757.317 |
| 6 - 10 | ₩4,282.927 | ₩8,565.853 |
| 12 + | ₩4,191.507 | ₩8,383.014 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 538-287
- 제조사 부품 번호:
- AS7C256A-12JIN
- 제조업체:
- Alliance Memory
제정법과 컴플라이언스
제품 세부 사항
Static RAM, Alliance Memory
The AS6C1008 is well designed for very low power system applications, and particularly well suited for battery back-up non-volatile memory application. The AS6C62256 is a 262,144-bit low power CMOS static random access memory organized as 32,768 words by 8 bits. The AS6C62256 operates with wide range power supply 2.7 ∼ 5.5V. Package: 28-pin 600 mil PDIP
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
SRAM (Static Random Access Memory)
사양
속성 | 값 |
|---|---|
| Memory Size | 256kbit |
| Organisation | 32K words x 8 bit |
| Number of Words | 32k |
| Number of Bits per Word | 8bit |
| Maximum Random Access Time | 12ns |
| Address Bus Width | 15bit |
| Low Power | Yes |
| Timing Type | Asynchronous |
| Mounting Type | Surface Mount |
| Package Type | SOJ |
| Pin Count | 28 |
| Dimensions | 18.54 x 7.75 x 2.67mm |
| Height | 2.67mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Supply Voltage | 4.5 V |
| Width | 7.75mm |
| Maximum Operating Temperature | +85 °C |
| Length | 18.54mm |
| Minimum Operating Temperature | -40 °C |
