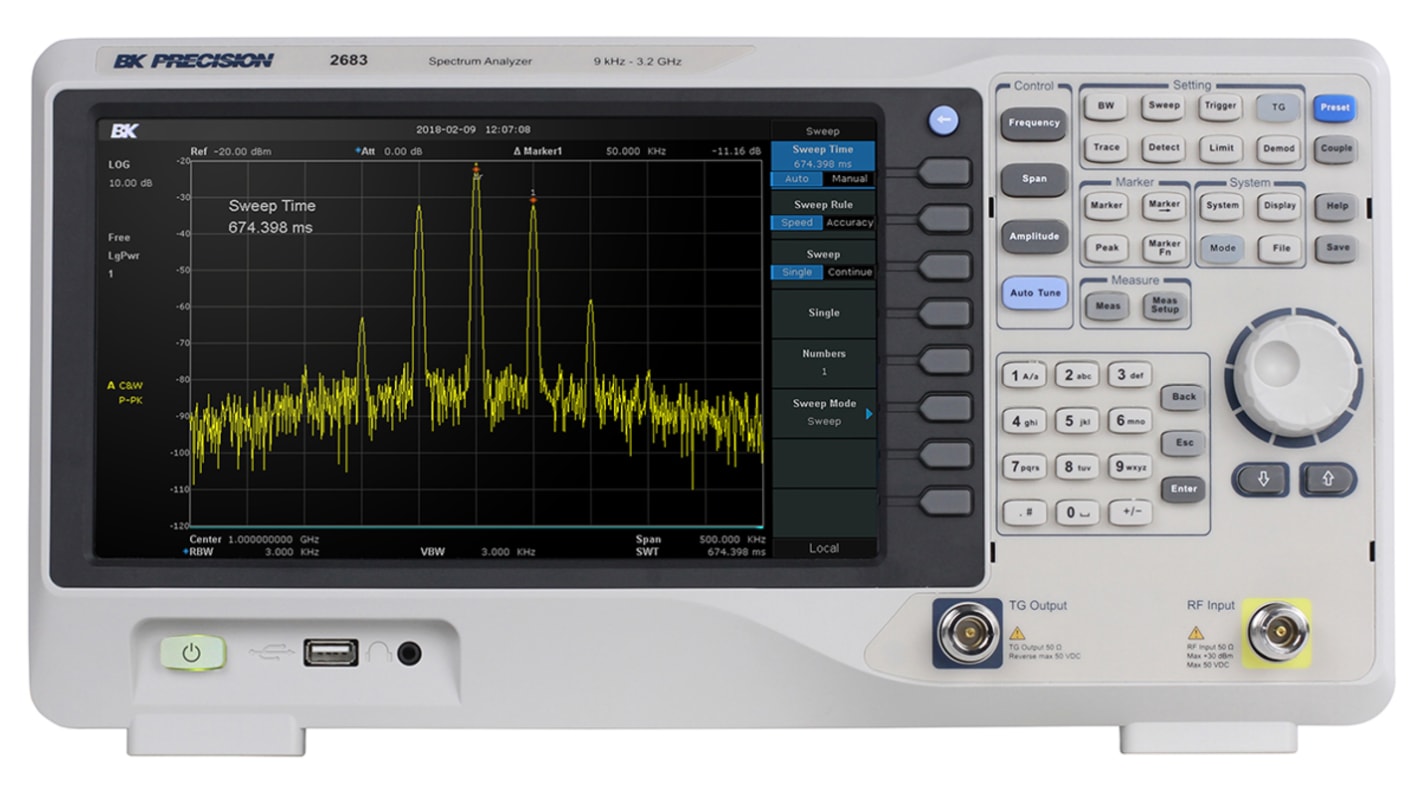

BK Precision BK2683 Spectrum Analyser, 9 KHz → 3.2 GHz
- RS 제품 번호:
- 192-4588
- 제조사 부품 번호:
- BK2683
- 제조업체:
- BK Precision
- RS 제품 번호:
- 192-4588
- 제조사 부품 번호:
- BK2683
- 제조업체:
- BK Precision
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항
Frequency range: 9 kHz to 3.2 GHz
High Sensitivity -161 dBm/Hz displayed average noise level (DANL)
Low phase noise of -98 dBc/Hz @ 10 kHz offset
Low level uncertainty of ±0.7 dB
1 Hz minimum resolution bandwidth (RBW)
Preamplifier and tracking generator standard
10.1” wide-screen 1024 x 600 colour display
LAN and USBTMC connectivity
USB host port to store and recall waveform data, setups, and screen captures
High Sensitivity -161 dBm/Hz displayed average noise level (DANL)
Low phase noise of -98 dBc/Hz @ 10 kHz offset
Low level uncertainty of ±0.7 dB
1 Hz minimum resolution bandwidth (RBW)
Preamplifier and tracking generator standard
10.1” wide-screen 1024 x 600 colour display
LAN and USBTMC connectivity
USB host port to store and recall waveform data, setups, and screen captures
사양
속성 | 값 |
|---|---|
| Bandwidth | 9 KHz → 3.2 GHz |
| Sweep Modes | Continuous, Single |
| Series | 2680 |
| Setting Modes | Span |
| Maximum Frequency | 3.2GHz |
| Minimum Frequency | 9 kHz |
| Frequency Stability | <1ppm |
| Screen Size | 1024 x 600pixel |
| RF Input | BNC |
| Dimensions | 393 x 116.5 x 207mm |
| Weight | 4.6kg |
| Model Number p | BK2683 |
| Length | 393mm |
| Width | 116.5mm |
| Minimum Operating Temperature | 0°C |
| Height | 207mm |
| Maximum Operating Temperature | +50°C |
