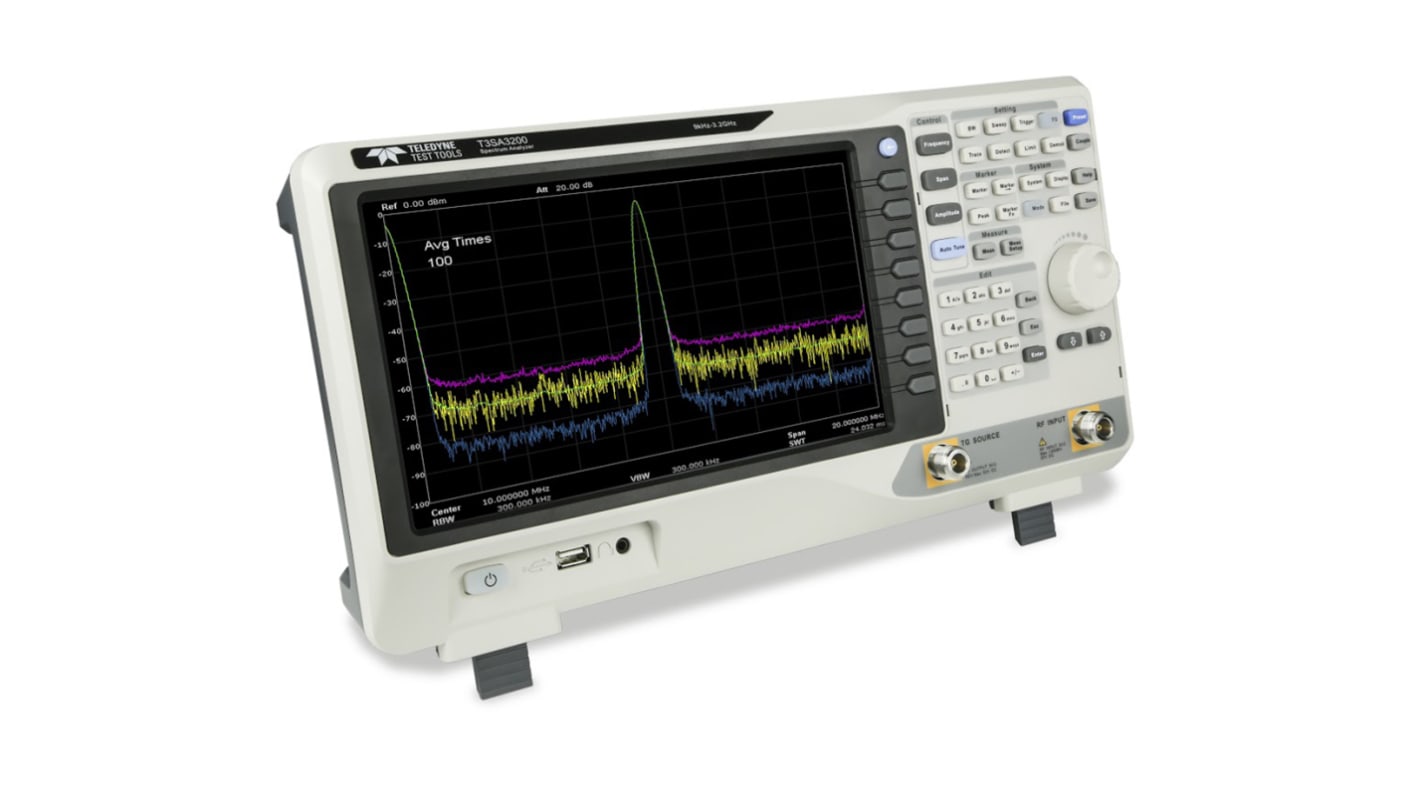

Teledyne LeCroy T3SA3100 Desktop Spectrum Analyser, 9 kHz → 2.1 GHz
- RS 제품 번호:
- 177-1297
- 제조사 부품 번호:
- T3SA3100
- 제조업체:
- Teledyne LeCroy
- RS 제품 번호:
- 177-1297
- 제조사 부품 번호:
- T3SA3100
- 제조업체:
- Teledyne LeCroy
제정법과 컴플라이언스
제품 세부 사항
Teledyne LeCroy T3SA3000 Series Spectrum Analysers
Spectrum Analysers are instruments used by engineers and technicians in the electronics industry to examine and analyze the frequency spectrum of RF (radio frequency) and audio signals. Spectrum analysers enable you to measure the input signals along with the frequency range. They are an indispensable tool in any workshop, laboratory or test station
T3SA3100 and T3SA3200 Spectrum Analysers
The Teledyne LeCroy T3SA3000 series of spectrum analysers offer a frequency range of 9KHz to 2.1 GHz (T3SA3100) or 9KHz to 3.2 GHz (T3SA3200). Robustly designed and highly reliable the T3SA3000 series of analysers boasts a wide range of advanced measurement functions. With an intuitive, easy to use menu and built-in front panel help system the Teledyne LeCroy T3SA3000 series of spectrum analysers are the perfect instrument for any laboratory.
Features and Benefits
- - 161 dBm/Hz displayed average noise level (Typ)
- - 98 dBc/Hz @ 10kHZ Offset Phase Noise (1 GHz, Typ)
- Total Amplitude Accuracy <0.7Db
- 1Hz Minimum Resolution Bandwidth (RBW)
- All-Digital IF Technology
- Standard Preamplifier
- 10.1-inch colour WVGA (1024 X 600 Display)
- Pre-set and Auto-Tune for quick set up
- File management (support for U-disc and local storage)
- Compact, lightweight and easy to transport
The T3SA3000’s high performing spectrum analysis capability can be enhanced further with additional options. These options (extras) are used to extend the instrument's measurement capacity.
Tracking Generator 177-1299
- Adds tracking generator capabilities to your spectrum analyser to make transmission measurements on backplanes, cables, filters and amplifiers.
EMI Pre-compliance Test Kit 177-1300
- Add EMI Receiver measurements following CISPR 16-1-1
Reflection Measurement Kit 177-1302
- Adds VSWR, Return Loss, and Reflection Coefficient measurements
Advanced Measurement Kit 177-1301
- Adds channel power, adjacent channel power ratio, time domain power, and occupied bandwidth and third-order intercept
Applications
Spectrum Analysers are used in a wide range of applications in a multitude of different industries. A spectrum analyser is a vital piece of equipment for any professional where RF testing is needed. Development, verification and validation testing, production, base service, and repair and field installation and service. Some of the most common areas are
- Research laboratories
- Development laboratories
- Repair and maintenance
- Calibration laboratories
- Automatic production testing
- General benchtop use
Why Teledyne LeCroy?
Teledyne LeCroy spectrum analysers have been designed, manufactured and tested to the highest standards. This ensures high reliability and quality. In the unlikely event, you experience any problems all Teledyne LeCroy spectrum analysers are covered by a 3-year manufacturer's warranty.
FAQ’S
Q: Are there any additional accessories available for the T3SA3100 and T3SA3200 Spectrum Analysers?
A: Yes, some additional accessories are available, they are
- 177-1303 is for the T3SA3000-UTL Utility Cable Kit.
- 177-1304 is for the T3SA3000-RLB VSWR Bridge Adaptor Kit.
- 177-1305 is for the T3SA3000-NFP Near Field Probe Set.
- 177-1265 is for the T3SA3000-RFM-Kit. Reflect Measurement Kit includes both software and hardware for the T3SA3000 Series Spectrum Analysers.
Teledyne LeCroy
사양
속성 | 값 |
|---|---|
| Bandwidth | 9 kHz → 2.1 GHz |
| Number of Channels | 1 |
| Series | T3SA3000 |
| Maximum Frequency | 2.1GHz |
| Minimum Frequency | 9 kHz |
| Display Type | WVGA |
| Screen Size | 10.1in |
| Desktop/Handheld | Desktop |
| Model Number p | T3SA3100 |
