TE Connectivity FASTON .250 Uninsulated Male Spade Connector, PCB Tab, 6.35 x 0.81mm Tab Size
- RS 제품 번호:
- 680-5911
- 제조사 부품 번호:
- 726386-2
- 제조업체:
- TE Connectivity
일시 품절-다음 입고 날짜는 23/05/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(100개가 1팩안에)
₩191.464
| 수량 | 한팩당 | 한팩당* |
| 100 - 1200 | ₩191.464 | ₩19,180.888 |
| 1300 - 2400 | ₩188.014 | ₩18,749.663 |
| 2500 + | ₩182.839 | ₩18,352.936 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 680-5911
- 제조사 부품 번호:
- 726386-2
- 제조업체:
- TE Connectivity
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항

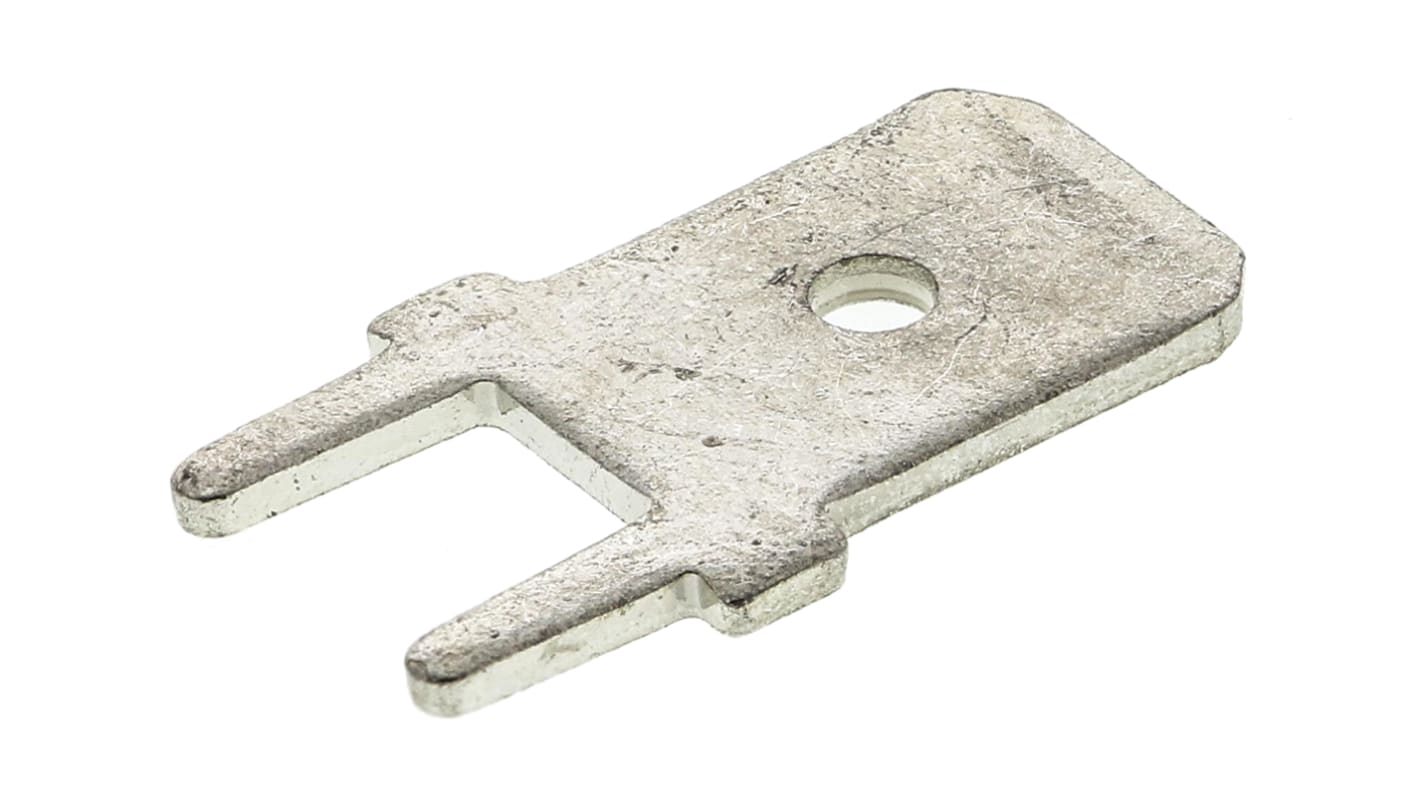

TE Connectivity FASTON 250 PCB Mount Tab Terminals
FASTON 250 PCB mount tab terminals designed specifically for a reliable and high performance quick connection with FASTON 250 series receptacles. These PCB mount tabs are inserted into holes on the PCB then soldered for a permanent attachment. Vertical and right angle configurations of these FASTON 250 PCB mount tab terminals are available
Features and Benefits
• Reliable, high performance connection
• Vertical and right angle mounting options for design flexibility
• Vertical and right angle mounting options for design flexibility
Applications
These FASTON 250 PCB mount tab terminals are commonly used in the appliance and automotive industry. Other applications include computer and peripheral equipment, industrial controllers, test equipment and telecommunications equipment.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Faston
사양
속성 | 값 |
|---|---|
| Type | PCB Tab |
| Series | FASTON .250 |
| Gender | Male |
| Tab Width | 6.35mm |
| Tab Size | 6.35 x 0.81mm |
| Tab Thickness | 0.81mm |
| Insulation | Uninsulated |
| Termination Method | Solder |
| Contact Material | Brass |
| Contact Plating | Tin |
| Orientation | Straight |
| Overall Length | 14mm |
