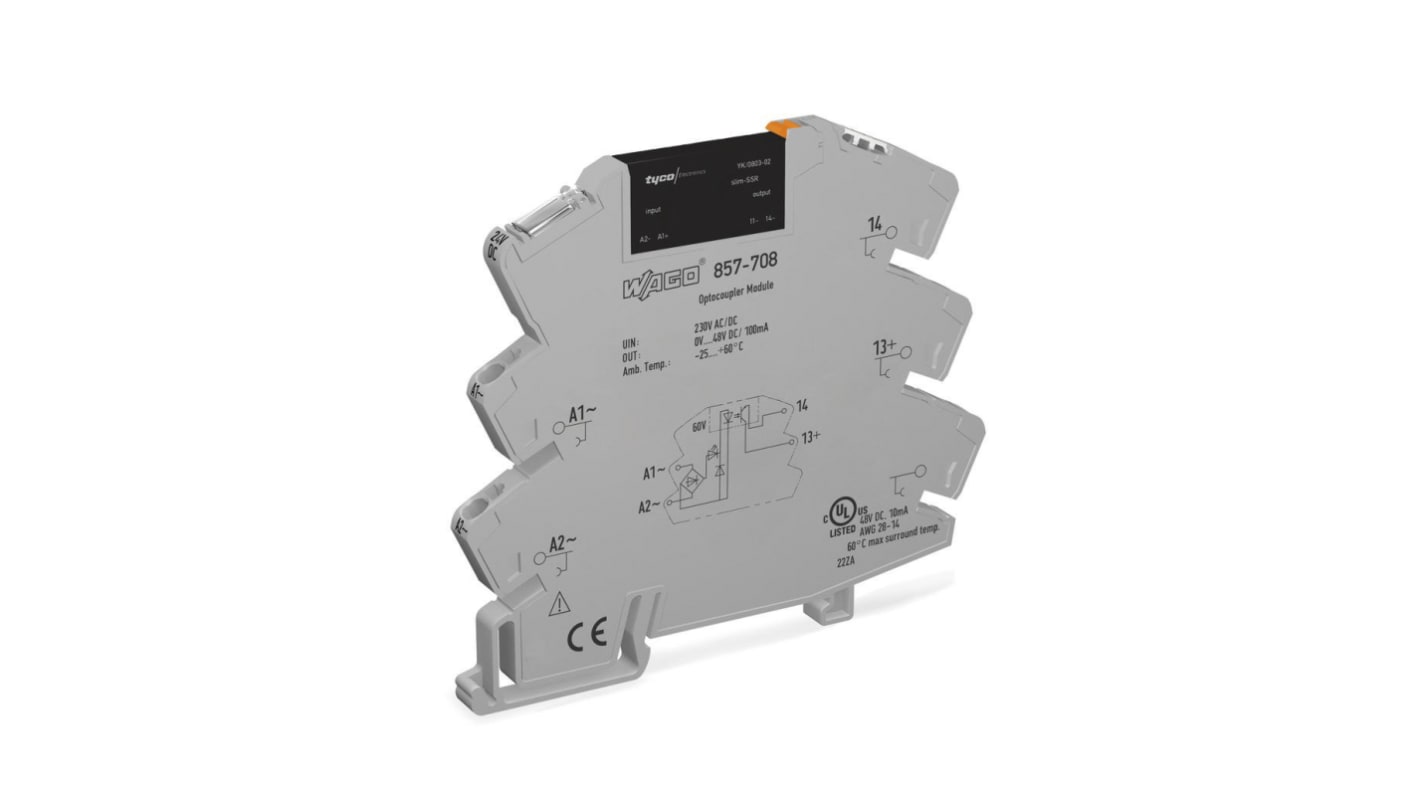

Wago 857 Series Solid State Relay, 0.1 A Load, DIN Rail Mount, 48 V dc Load, 253V ac/dc Control
- RS 제품 번호:
- 180-3048
- 제조사 부품 번호:
- 857-708
- 제조업체:
- Wago
- RS 제품 번호:
- 180-3048
- 제조사 부품 번호:
- 857-708
- 제조업체:
- Wago
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.
Solid-state relay module, Nominal input voltage: 230 V AC/DC, Output voltage range: 0 … 48 VDC, Limiting continuous current: 0.1 A, 2-wire connection, Yellow status indicator, Module width: 6 mm
사양
속성 | 값 |
|---|---|
| Maximum Load Current | 0.1 A |
| Mounting Type | DIN Rail |
| Maximum Load Voltage | 48 V dc |
| Minimum Load Voltage | 0 V dc |
| Minimum Control Voltage | 200V ac/dc |
| Maximum Control Voltage | 253V ac/dc |
| Switching Type | AC/DC |
| Control Voltage Range | 200 → 253 V dc |
| Terminal Type | Cage Clamp |
| Output Device | Transistor/Triac |
| Relay Type | Solid State Relay |
| Maximum Turn On Time | 0.1ms |
| Load Voltage Range | 0 → 48V dc |
| Series | 857 |
| Dimensions | 94 x 6 x 81mm |
| Minimum Operating Temperature | -20°C |
| Depth | 6mm |
| Length | 94mm |
| Maximum Operating Temperature | +60°C |
| Height | 81mm |
| Operating Temperature Range | -20 → +60°C |
| Special Features | 2-Conductor Technology, AC/DC Switching, DC Output |
