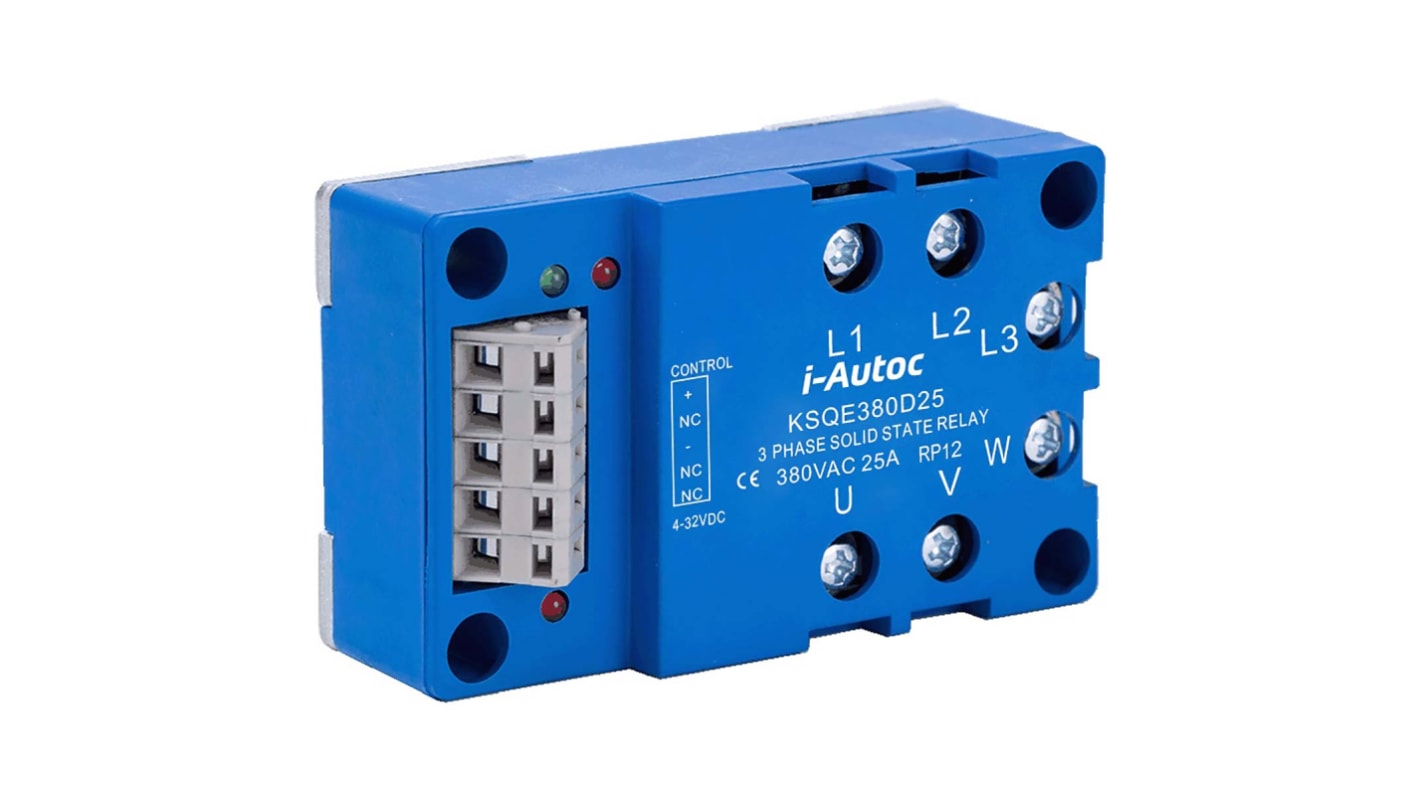

i-Autoc Solid State Relay, 25 A Load, Panel Mount, 440 V ac Load, 32 V dc Control
- RS 제품 번호:
- 102-5558
- 제조사 부품 번호:
- KSQE380D25
- 제조업체:
- i-Autoc
- RS 제품 번호:
- 102-5558
- 제조사 부품 번호:
- KSQE380D25
- 제조업체:
- i-Autoc
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항
KSQE Series 3-Phase SSR
I-Autoc KSQE series 3 phase AC output solid state relay. KSQE relays have various control voltage options with load currents at 10A, 15A or 25A available. Wide load voltage range of 48 V ac to 530 V ac.
Dielectric strength 4000 Vrms
Internal MOV/RC protection circuit
RoHS compliant
Internal MOV/RC protection circuit
RoHS compliant
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
사양
속성 | 값 |
|---|---|
| Maximum Load Current | 25 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 440 V ac |
| Minimum Load Voltage | 48 V ac |
| Maximum Control Voltage | 32 V dc |
| Minimum Control Voltage | 4 V dc |
| Switching Type | Zero Cross |
| Control Voltage Range | 4 → 32 V dc |
| Minimum Load Current | 100 mA |
| Terminal Type | Screw |
| Relay Type | Three Phase |
| Load Voltage Range | 48 → 440V ac |
| Maximum Turn On Time | 1/2 cycle + 1 ms |
| Dimensions | 80 x 50 x 30mm |
| Depth | 50mm |
| Length | 80mm |
| Special Features | Internal MOV/RC Protection Circuit |
| Operating Temperature Range | -30 → +80°C |
| Height | 30mm |
| Off State Leakage Current | 5 mA |
| Standards Met | CE |
