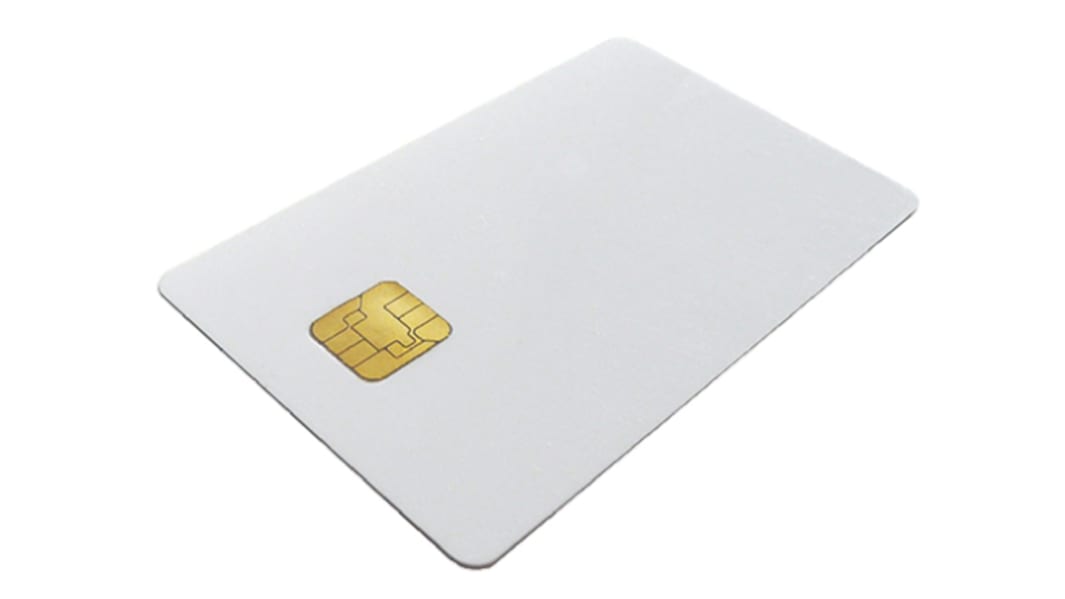

Seeit 2 KB Smart Card
- RS 제품 번호:
- 772-3167
- 제조사 부품 번호:
- ZCM16B
- 제조업체:
- Seeit
- RS 제품 번호:
- 772-3167
- 제조사 부품 번호:
- ZCM16B
- 제조업체:
- Seeit
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- DK
제품 세부 사항
ZCM16M, Smartcard EEPROM (Microchip, 24LC16B), 2KBytes
Serial I²C bus EEPROM Smartcard
Manufacturer: Microchip with part number reference: 24LC16B
Memory size: 16Kbits (2048 Bytes of 8-bits)
Blank Smartcard without any software to create a prototype
I²C standard 2-wires serial interface programming only
Read / Write mode: see datasheet of Microchip 24LC16B for details
Power supply: 2.5V to 5.5V
Erase / Write cycles: 1,000,000 times minimum
Data retention: 10 years minimum
Maximum Frequency: 400KHz
Temperature: -55°C to +125°C
Dimensions: 85 x 53 x 1 mm
Weight: 10g
Manufacturer: Microchip with part number reference: 24LC16B
Memory size: 16Kbits (2048 Bytes of 8-bits)
Blank Smartcard without any software to create a prototype
I²C standard 2-wires serial interface programming only
Read / Write mode: see datasheet of Microchip 24LC16B for details
Power supply: 2.5V to 5.5V
Erase / Write cycles: 1,000,000 times minimum
Data retention: 10 years minimum
Maximum Frequency: 400KHz
Temperature: -55°C to +125°C
Dimensions: 85 x 53 x 1 mm
Weight: 10g
사양
속성 | 값 |
|---|---|
| Capacity | 2 KB |
