AUER Signal PC7DMB Series Clear Steady Effect Beacon Module Top for Use with Modul-Perfect 70 LED Signal Towers, 24 V
- RS 제품 번호:
- 247-2619
- 제조사 부품 번호:
- 910140405
- 제조업체:
- AUER Signal
- RS 제품 번호:
- 247-2619
- 제조사 부품 번호:
- 910140405
- 제조업체:
- AUER Signal
제정법과 컴플라이언스
- COO (Country of Origin):
- AT
제품 세부 사항

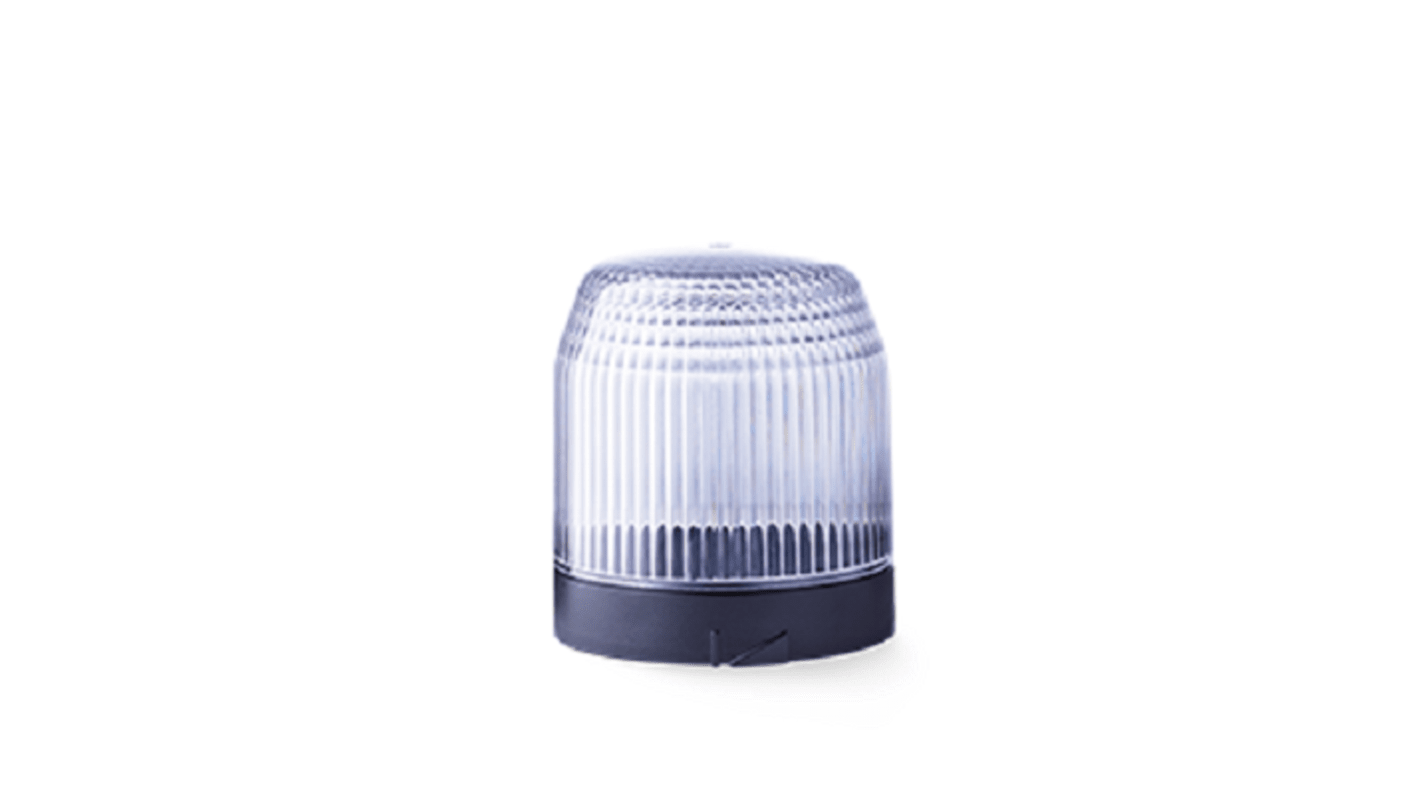

The AUER Signal PC7DMB Top LED multi colour module used for Module Perfect 70 modular signal tower. Almost double the amount of light compared to the LED multi colour module. Can be combined with an inline tone module to form a stand-alone visual-audible signalling device.
Leakage current 0.003 A
Beacon type LED multi colour module
Duty cycle 100 %
Operating temperature -30 °C / +70 °C
Degree of protection IP66, IP67 & UL Type 4/4x/13
Impact resistance IK08
Weight 89 g
Beacon type LED multi colour module
Duty cycle 100 %
Operating temperature -30 °C / +70 °C
Degree of protection IP66, IP67 & UL Type 4/4x/13
Impact resistance IK08
Weight 89 g
사양
속성 | 값 |
---|---|
Range | PC7 |
Series | PC7DMB |
Component Type | Beacon Module |
Multifunction | Yes |
Current Type | AC/DC |
Light Effect | Steady |
Lens Colour | Clear |
Bulb Type | LED |
Supply Voltage | 24 V ac/dc |
For Use With | Modul-Perfect 70 LED Signal Towers |
Base Diameter | 70mm |
