- RS 제품 번호:
- 214-4072
- 제조사 부품 번호:
- 07100.2-00
- 제조업체:
- STEGO
일시 품절-다음 입고 날짜는 17/06/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩350,860.184
수량 | 한팩당 |
1 + | ₩350,860.184 |
- RS 제품 번호:
- 214-4072
- 제조사 부품 번호:
- 07100.2-00
- 제조업체:
- STEGO
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항

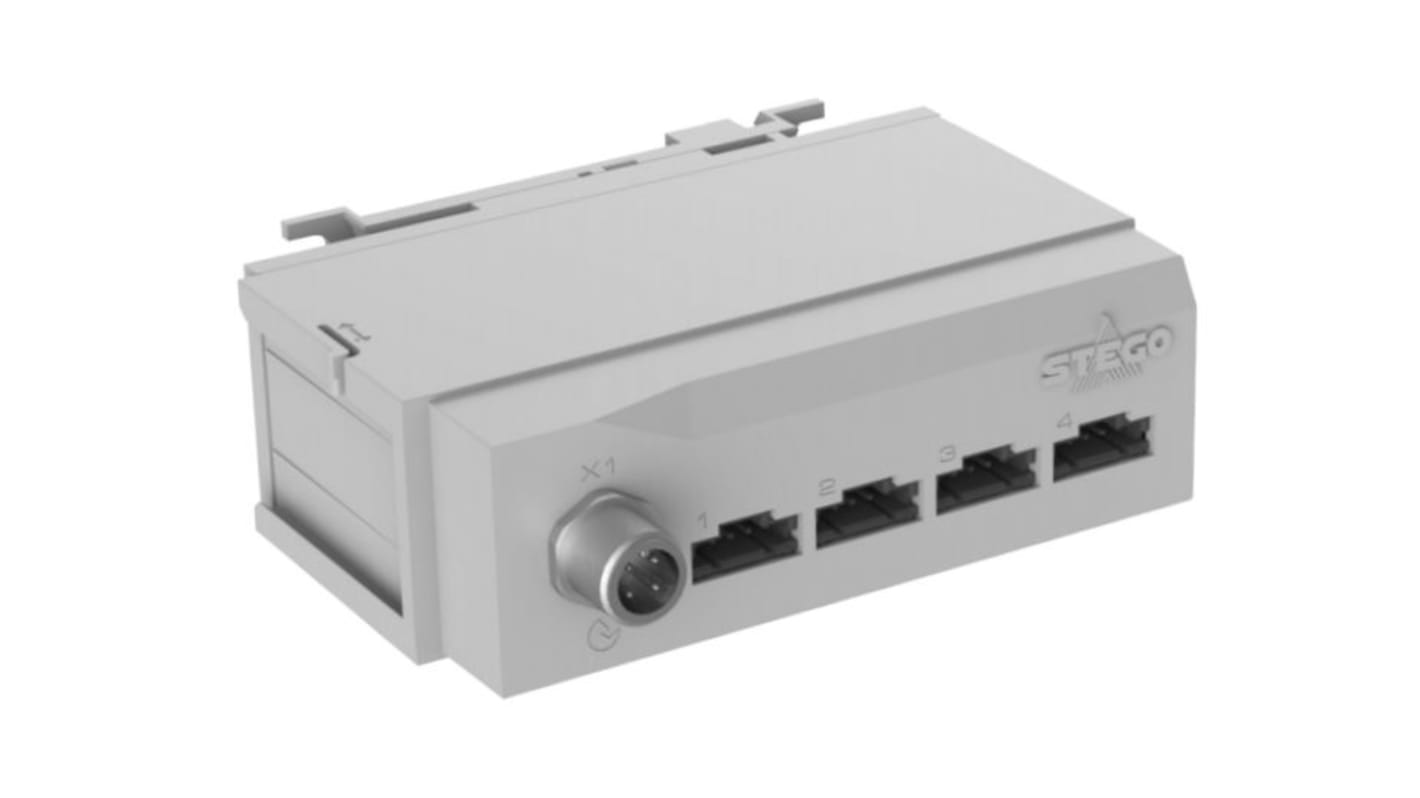

Sensor Hub, IO-LINK DC 24v, Digital IO-Link interface - for 1 to 4 I²C sensors
The STEGO IO-Link Sensor Hub SHC 071 records measuring data of up to four external, non IO-Link STEGO sensors on process level and transmits data via an IO-Link Master to a superior control and monitoring level: edge computer, cloud, PLC, etc. Standard IO-Link sensors, on the other hand, connect to one IO-Link Master slot each. By use of the sensor hub, up to four external sensors can be connected, but they only connect to one IO-Link Master slot and thus have a positive savings effect on the slot capacities of the IO-Link Master device.
Sensor connection 4 slots with strain relief for up to 4 STEGO sensors1
IO-Link connection M12 round plug connector, IEC 61076-2-101, 4-pin, A-coded
Electrical protection Reverse-polarity, short circuit, overvoltage protection
Mounting clip for 35 mm DIN rail, EN 60715 and screw mounting (M5)
Casing plastic according to UL94 V-0, light grey
Operating/Storage temperature -40 to +80 °C (-40 to +176 °F) / -40 to +85 °C (-40 to +185 °F)
Operating/Storage humidity max. 90 % RH (non-condensing)
Operating altitude ≤ 4,000 m above sea level
Protection type/Protection class IP40 / III (SELV)
IO-Link connection M12 round plug connector, IEC 61076-2-101, 4-pin, A-coded
Electrical protection Reverse-polarity, short circuit, overvoltage protection
Mounting clip for 35 mm DIN rail, EN 60715 and screw mounting (M5)
Casing plastic according to UL94 V-0, light grey
Operating/Storage temperature -40 to +80 °C (-40 to +176 °F) / -40 to +85 °C (-40 to +185 °F)
Operating/Storage humidity max. 90 % RH (non-condensing)
Operating altitude ≤ 4,000 m above sea level
Protection type/Protection class IP40 / III (SELV)
사양
속성 | 값 |
---|---|
Operating Voltage | 24V dc |
Series | SHC 071 |
Interface | IO-Link |
