- RS 제품 번호:
- 548-8720
- 제조사 부품 번호:
- 902020/25-402-1001-1-6-100-104/395
- 제조업체:
- Jumo
2 <재고있음> 5-9영업일내 홍콩 발송
7 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
Was ₩228,506.128
귀하의 지불
₩161,700.751
수량 | 한팩당 |
1 + | ₩161,700.751 |
- RS 제품 번호:
- 548-8720
- 제조사 부품 번호:
- 902020/25-402-1001-1-6-100-104/395
- 제조업체:
- Jumo
제정법과 컴플라이언스
- COO (Country of Origin):
- FR
제품 세부 사항

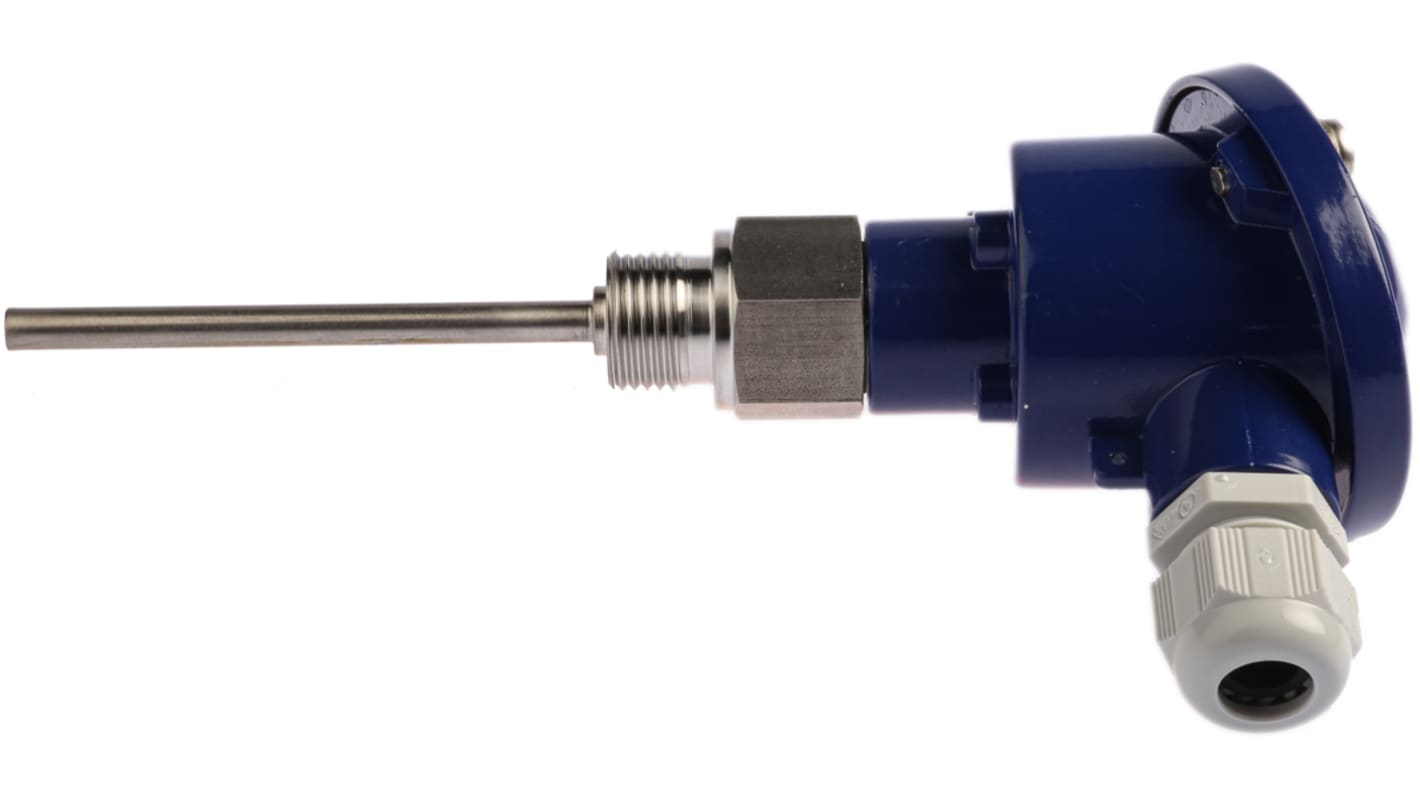

Pt100 probes with converter
Resistance probe with intermediary tube, smooth protective sheath.
Class B tolerance as per EN 60 751.
Integrated analogue measurement converter with 4 → 20 mA output.
Type B connection head in cast aluminium.
316Ti stainless steel protective sheath.
Interchangeable measuring element.
Class B tolerance as per EN 60 751.
Integrated analogue measurement converter with 4 → 20 mA output.
Type B connection head in cast aluminium.
316Ti stainless steel protective sheath.
Interchangeable measuring element.
사양
속성 | 값 |
---|---|
Sensor Type | PT100 |
Probe Length | 100mm |
Probe Diameter | 6mm |
Minimum Temperature Sensed | -40°C |
Maximum Temperature Sensed | +400°C |
Termination Type | Connection Head |
Probe Material | Stainless Steel |
Process Connection | G1/2 |
Cable Entry Size | M20 |
Number Of Wires | 3 |
Accuracy | Class B |
Response Time | 50 (Water) s |
