- RS 제품 번호:
- 327-4945
- 제조사 부품 번호:
- 902044/20-380-1003-1-8-50-104-26/000
- 제조업체:
- Jumo
- RS 제품 번호:
- 327-4945
- 제조사 부품 번호:
- 902044/20-380-1003-1-8-50-104-26/000
- 제조업체:
- Jumo
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- DE
제품 세부 사항

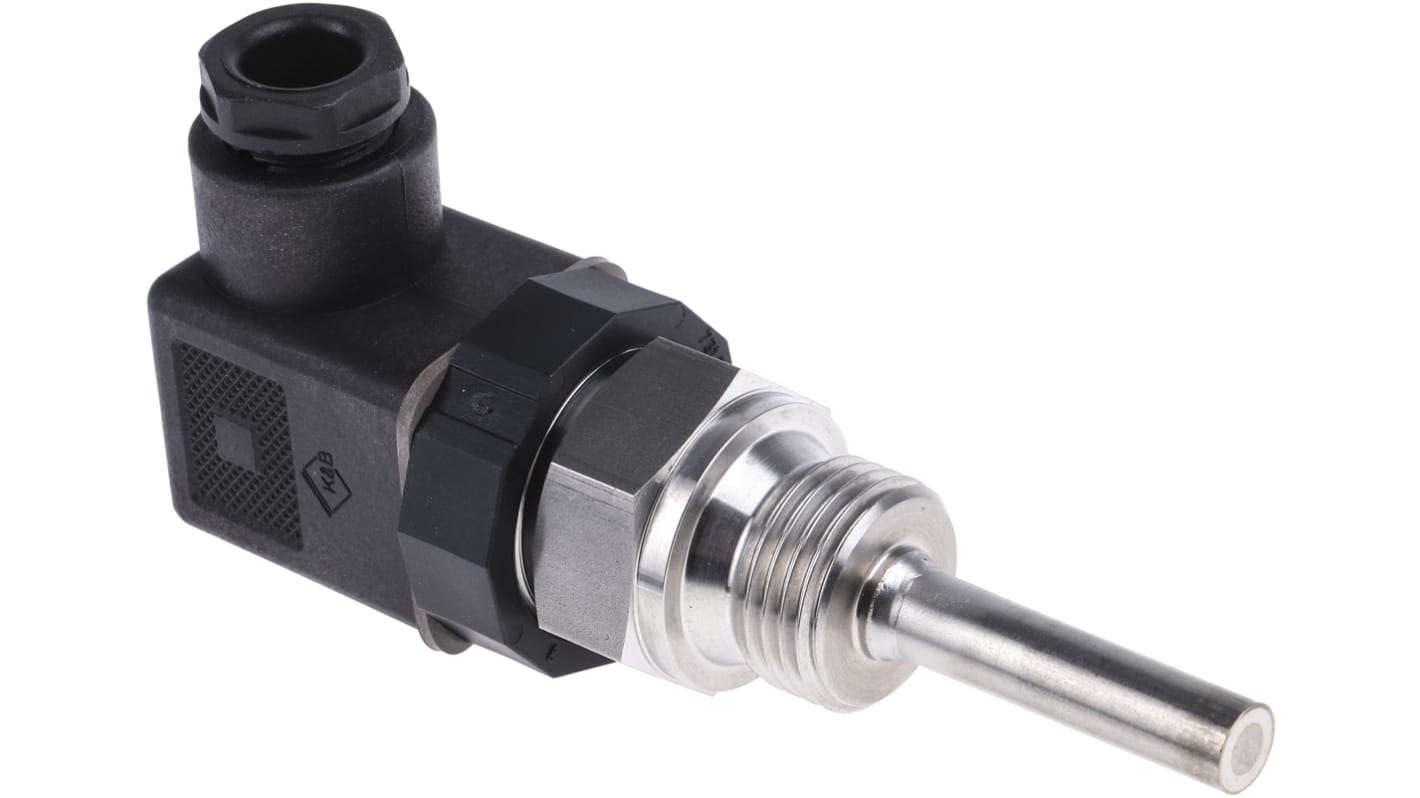

PT100 Probes with DIN Connector
This range of Pt100 probes enables temperature measurement under pressure in motors, compressors, plant engineering and ship building. They are easy to connect with standard DIN connector
Temperature range from -50°C to +300°C
Probe length from 50 to 250mm
Temperature measurement with pressure up to 25 bars
2 wire PT100 Class B type
Process connection: G1/2"
IP65 protection class
Stainless steel
Probe length from 50 to 250mm
Temperature measurement with pressure up to 25 bars
2 wire PT100 Class B type
Process connection: G1/2"
IP65 protection class
Stainless steel
사양
속성 | 값 |
---|---|
Sensor Type | PT100 |
Probe Length | 50mm |
Probe Diameter | 8mm |
Minimum Temperature Sensed | -50°C |
Maximum Temperature Sensed | +270°C |
Termination Type | Standard Plug |
Probe Material | Stainless Steel |
Process Connection | G1/2 |
Cable Entry Size | PG 9 |
Number Of Wires | 2 |
Accuracy | Class B |
Response Time | 45 s (Water) |
