- RS 제품 번호:
- 170-2807
- 제조사 부품 번호:
- VCF4-1001
- 제조업체:
- TE Connectivity
210 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(5개가 1봉지안에)
₩2,451.083
수량 | 한팩당 | Per Bag* |
5 - 5 | ₩2,451.083 | ₩12,258.864 |
10 - 15 | ₩2,390.711 | ₩11,951.832 |
20 + | ₩2,352.764 | ₩11,765.543 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 170-2807
- 제조사 부품 번호:
- VCF4-1001
- 제조업체:
- TE Connectivity
제정법과 컴플라이언스
- COO (Country of Origin):
- US
제품 세부 사항

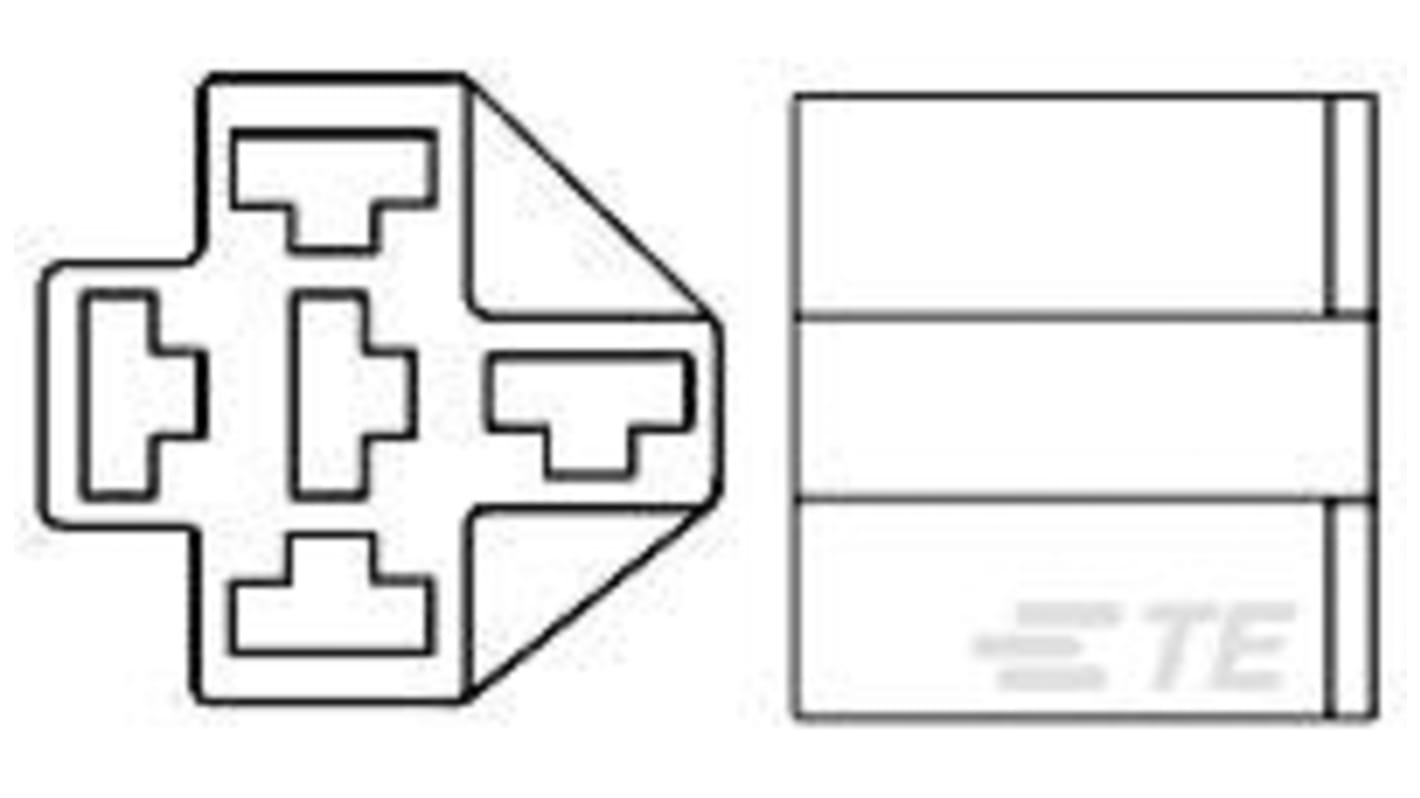

TE Connectivity Mini ISO PI Automotive Relays
TE Connectivity Mini ISO series automotive relays feature a non-latching coil with a high expected life cycle. The VF4 series is available in a variety of mounting and terminal types, suitable for automotive applications including headlamps, ignition load etc
Features and Benefits
12V / 24V variants available
Plated brass terminals
PCB pin or plug in QC terminal options
socket, through hole, and chassis mount options
PCB pin or plug in QC terminal options
socket, through hole, and chassis mount options
The range of applications can be classified into resistive loads, capacitive loads and inductive loads. The current curve of resistive loads is specified by the load voltage and load resistance. Capacitive loads have a high inrush current and a low steady current. Therefore lamps are counted to the capacitive loads, because the cold filament has a significantly lower resistance, than the hot filament. Inductive loads are characterized by an exponential current increase and a remarkable switch off arc, induced by the demagnetization of the magnetic circuit of the load. Power supply relays (clamp relays) can switch or feed a mixture of different loads. The circuit design of resistive and capacitive loads is usually a simple switch on and switch off. Motor load circuits are often more complex.
사양
속성 | 값 |
---|---|
For Use With | Mini Relay |
Number of Contacts | 5 |
Termination Type | Quick Connect |
