SFH 9206-5/6 ams OSRAM, SMT Reflective Optical Sensor, Phototransistor Output
- RS 제품 번호:
- 915-4917
- 제조사 부품 번호:
- SFH 9206-5/6
- 제조업체:
- ams OSRAM
50 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(10개가 1팩안에)
₩1,309.199
| 수량 | 한팩당 | 한팩당* |
| 10 - 240 | ₩1,309.199 | ₩13,097.166 |
| 250 - 490 | ₩1,290.225 | ₩12,895.352 |
| 500 + | ₩1,260.902 | ₩12,615.919 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 915-4917
- 제조사 부품 번호:
- SFH 9206-5/6
- 제조업체:
- ams OSRAM
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- MY
제품 세부 사항

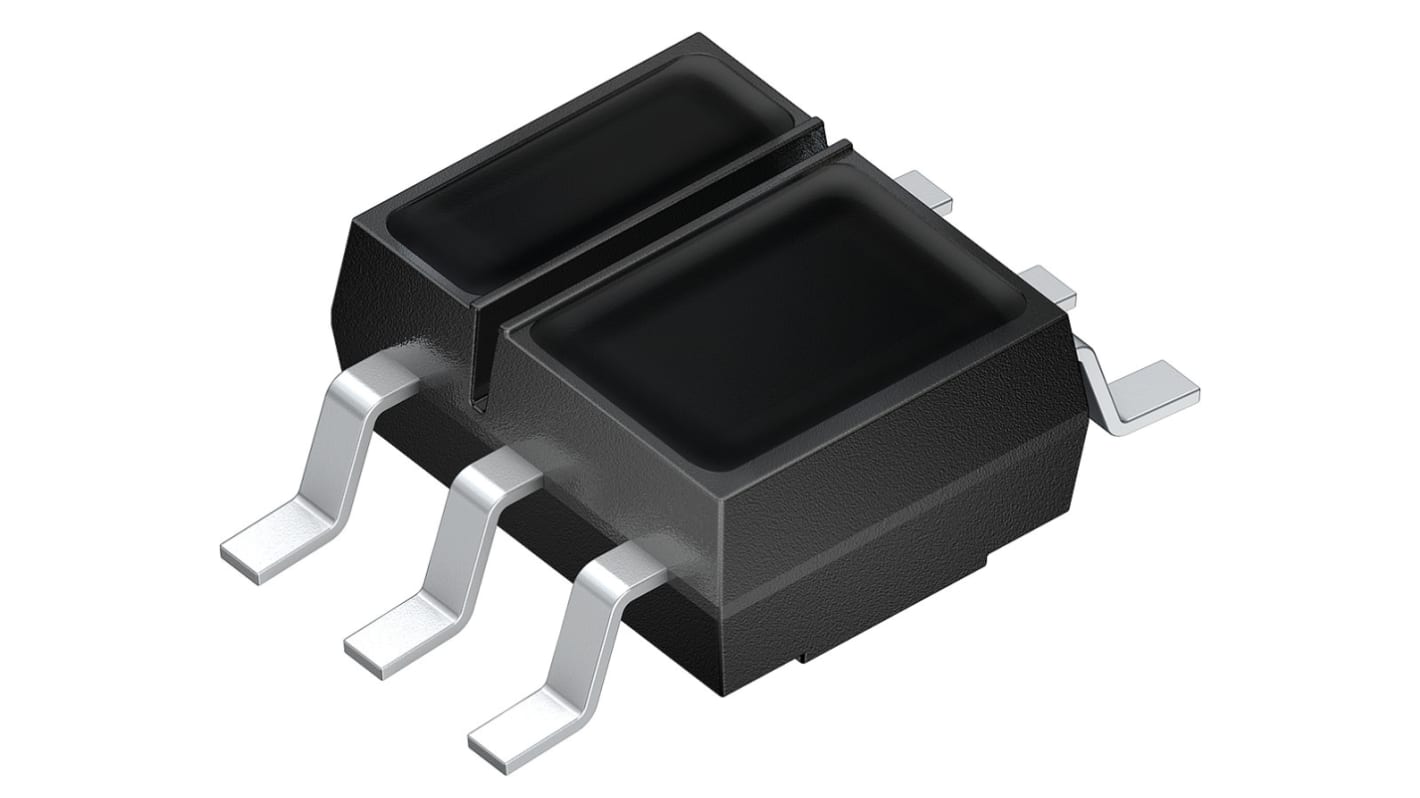

SFH 9206 SMT Reflective Sensors
The SFH 9206 family from OSRAM Opto Semiconductors are reflective sensors with a phototransistor output. They come in a surface-mounted (SMD) package containing and 950 nm LED and a silicon NPN phototransistor. The package also features a daylight filter.
Suitable applications for the SFH 9206 reflective sensors include; position reporting, end position switch, speed regulation and motion transmitters.
Suitable applications for the SFH 9206 reflective sensors include; position reporting, end position switch, speed regulation and motion transmitters.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Reflective Optical Sensors, OSRAM Opto Semiconductors
사양
속성 | 값 |
|---|---|
| Peak Sensor Distance | 1 → 5mm |
| Output Device | Phototransistor |
| Typical Rise Time | 30µs |
| Typical Fall Time | 40µs |
| Number of Pins | 6 |
| Mounting Type | Surface Mount |
| Dimensions | 4.2 x 3.4 x 2.1mm |
| Height | 2.1mm |
| Length | 4.2mm |
| Maximum Operating Temperature | +100°C |
| Minimum Operating Temperature | -40°C |
| Width | 3.4mm |
| Operating Temperature Range | -40 → +100°C |
