- RS 제품 번호:
- 150-4180
- 제조사 부품 번호:
- 5SU1354-6KK25
- 제조업체:
- Siemens
일시 품절-다음 입고 날짜는 05/06/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩246,048.361
수량 | 한팩당 |
1 + | ₩246,048.361 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS 제품 번호:
- 150-4180
- 제조사 부품 번호:
- 5SU1354-6KK25
- 제조업체:
- Siemens
제정법과 컴플라이언스
- COO (Country of Origin):
- RO
제품 세부 사항

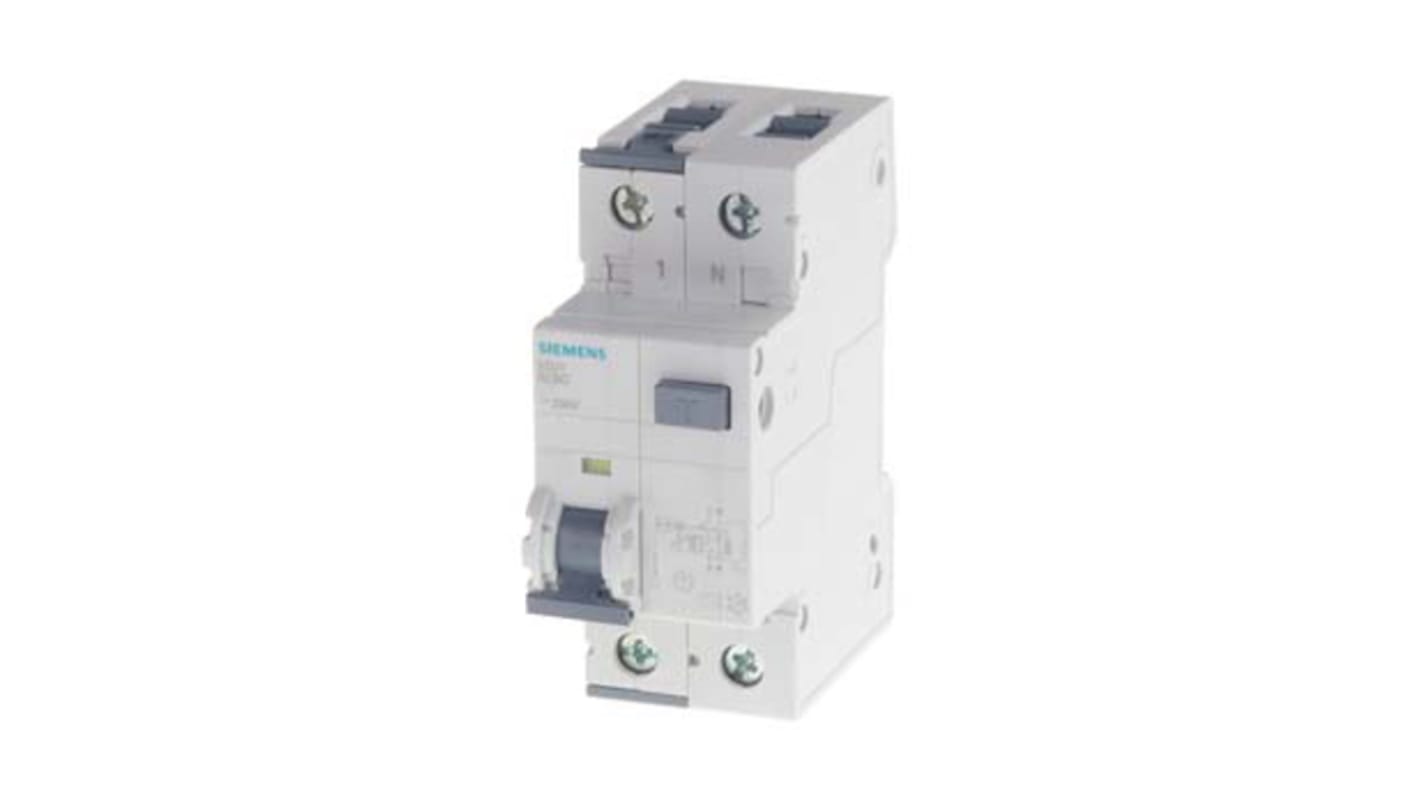

RCBOs are a combination of an RCCB and a miniature circuit breaker in a compact design for personnel, fire and line protection. For personnel protection and fire protection, the residual current part of the type AC trips in the event of sinusoidal AC residual currents, type A also trips in the event of pulsating DC residual currents. In addition, RCBOs type F also detect residual currents with mixed frequencies up to 1 kHz. RCBOs with a rated residual current of maximum 30 mA are used for personnel, material and fire protection, as well as for protection against direct contact.
Clear and visible conductor connection in front of the rear bus bar facilitates controls
Large and easily accessible wiring space enables easy insertion of conductor in the terminals
The surge current withstand capability of over 1 kA ensures safe and reliable operation
All additional components for miniature circuit breakers can be retrofitted on the right-hand side
Large and easily accessible wiring space enables easy insertion of conductor in the terminals
The surge current withstand capability of over 1 kA ensures safe and reliable operation
All additional components for miniature circuit breakers can be retrofitted on the right-hand side
사양
속성 | 값 |
---|---|
Current Rating | 25A |
Number of Poles | 2 |
Trip Sensitivity | 30mA |
Range | Sentron |
Circuit Breaker Type | RCBO |
Series | 5SU1 |
Rated AC Voltage | 230V |
Mounting Style | DIN Rail Mount |
Better World Product | Yes |
Better World Claim | Designed for disassembly, Extended product life |
Break Time | Instantaneous |
Reset Actuator Type | Toggle Switch |
Overall Length | 35.4mm |
Terminal Contact Type | Screw |
Overall Dimensions | 35.4 x 90 x 76.2mm |
Overall Width | 90mm |
Overall Depth | 76.2mm |
Breaking Capacity at Maximum Voltage Rating | 10 kA, 20 kA |
