- RS 제품 번호:
- 672-7032
- 제조사 부품 번호:
- XE1201
- 제조업체:
- Roxburgh EMC
- RS 제품 번호:
- 672-7032
- 제조사 부품 번호:
- XE1201
- 제조업체:
- Roxburgh EMC
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항

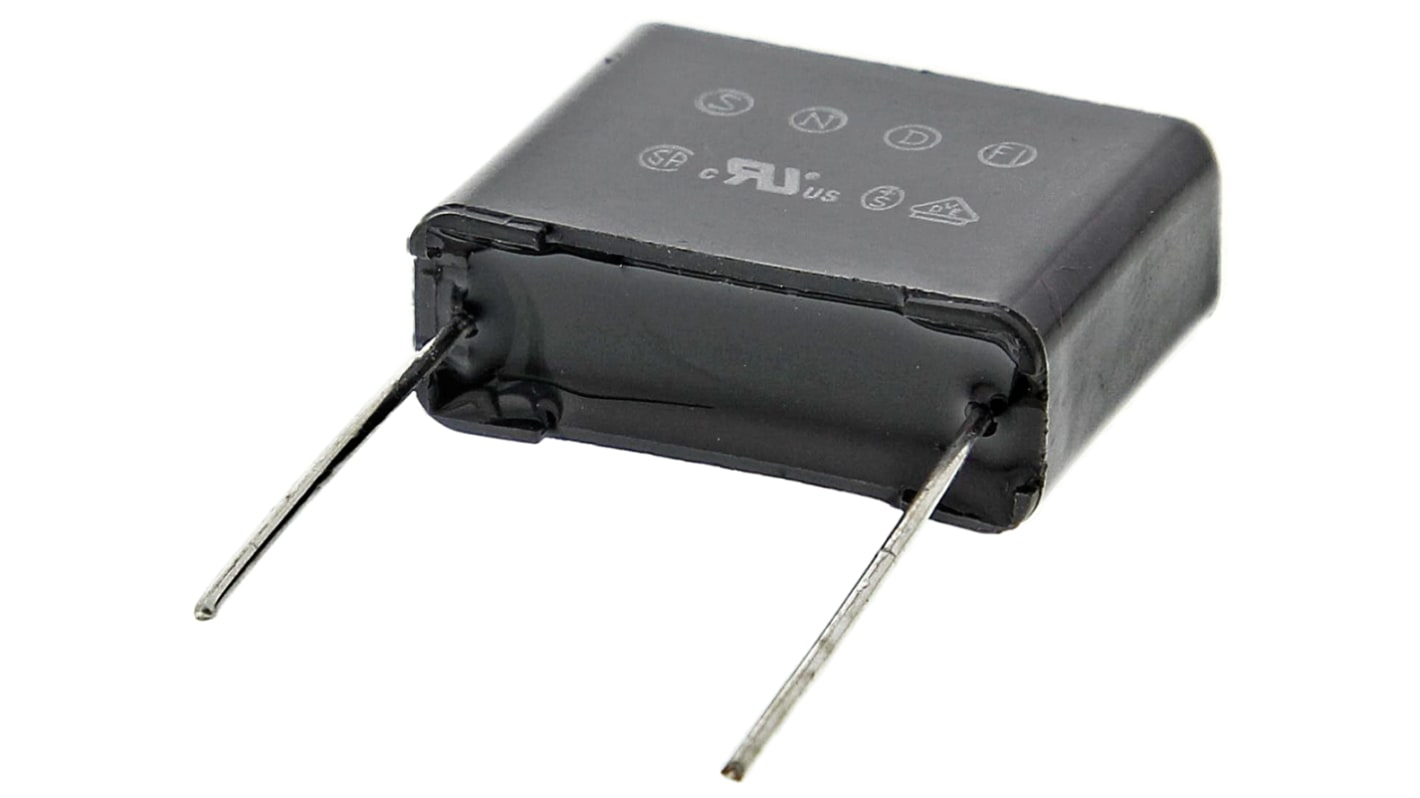

XE/XEB Series
Contact suppressors comprising a resistor and capacitor in series improve contact life
May be connected across a switch or relay contacts to suppress interference generated when switching reactive loads
Self healing construction and self extinguishing case
May be connected across a switch or relay contacts to suppress interference generated when switching reactive loads
Self healing construction and self extinguishing case
Warning
These devices are designed for connecting directly across a mains supply but should NOT be used in positions where failure of the capacitor would expose anyone to electric shock.
사양
속성 | 값 |
---|---|
Series | XE |
Capacitance | 100nF |
Voltage | 250V ac |
Resistance | 120Ω |
Mounting Type | Through Hole |
Dielectric | Metallised Polyester Film |
Number of Elements | 1 |
Capacitance Tolerance | ±20% |
Resistance Tolerance | ±30% |
Dimensions | 23.5 x 8.5 x 17.5mm |
Height | 17.5mm |
Depth | 8.5mm |
Length | 23.5mm |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -40 °C → +85 °C |
Minimum Operating Temperature | -40°C |
