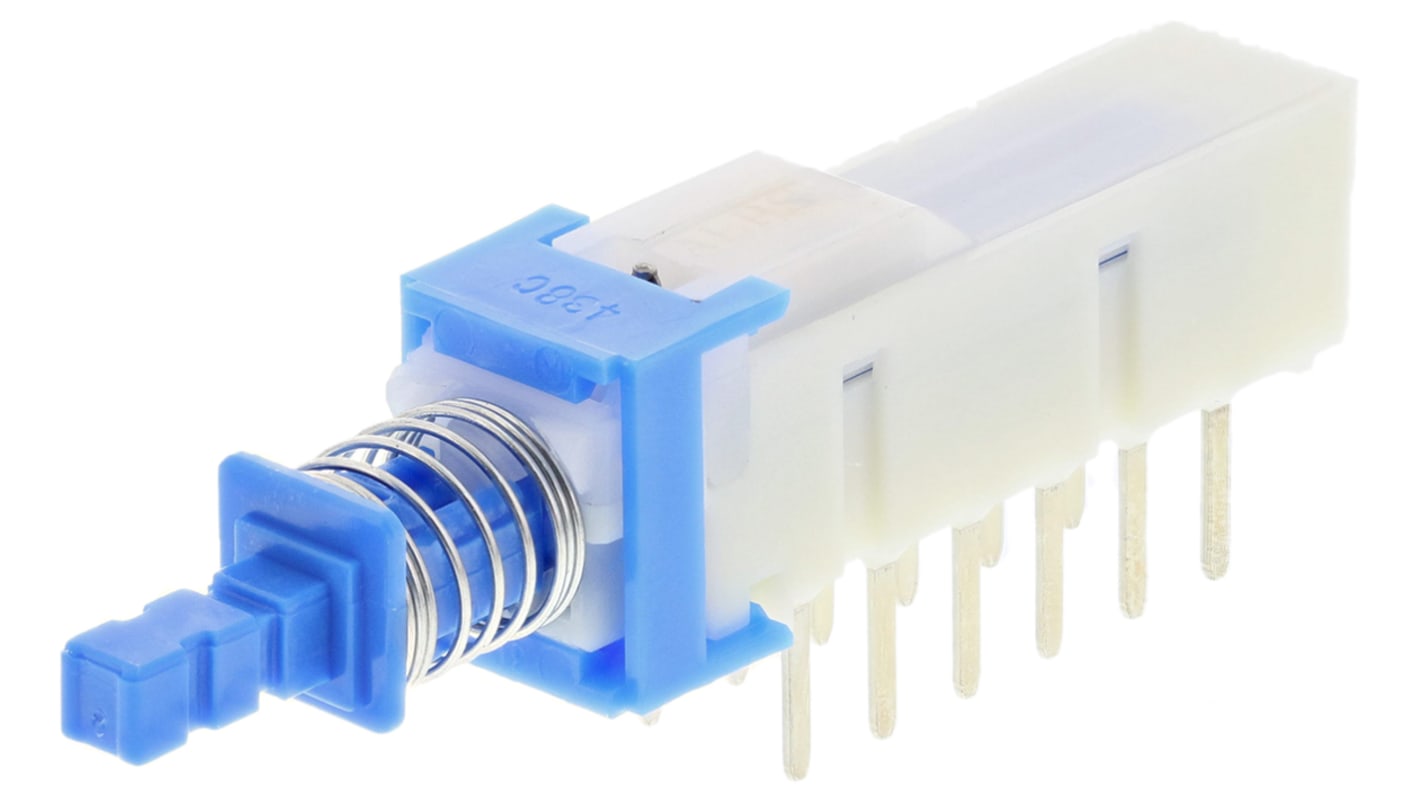

Alps Alpine Push Button Switch, Latching, PCB, DPDT, 30V dc
- RS 제품 번호:
- 758-2108
- 제조사 부품 번호:
- SPUN194700
- 제조업체:
- Alps Alpine
30 <재고있음> 5-9영업일내 홍콩 발송
112 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(2개가 1박스안에)
₩4,422.644
| 수량 | 한팩당 | Per Box* |
| 2 - 98 | ₩4,422.644 | ₩8,845.287 |
| 100 - 198 | ₩4,289.826 | ₩8,579.653 |
| 200 - 498 | ₩4,157.009 | ₩8,314.018 |
| 500 - 998 | ₩4,067.314 | ₩8,136.353 |
| 1000 + | ₩3,981.069 | ₩7,960.414 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 758-2108
- 제조사 부품 번호:
- SPUN194700
- 제조업체:
- Alps Alpine
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항
Alps Push Switches - SPUJ & SPUN Series
From Alps, this SPUJ and SPUN series of Push Switches are non-shorting, horizontal mounted, signal switches suitable for through hole PCB mounting. With a choice of straight or formed snap-in pins,
these Push Switches are also available in momentary (non-lock) or latching (self-lock) action, with two and four pole contact configurations, various switching travel and operating forces.
The SPUJ series have a 2mm travel while the SPUN Push Switches have 2.5mm switch travel. They are rated to 0.1A at 30V dc and 50μA at 3V dc with a 20mΩ contact resistance, 100MΩ minimum insulation resistance and 500V ac withstand voltage for one minute.
these Push Switches are also available in momentary (non-lock) or latching (self-lock) action, with two and four pole contact configurations, various switching travel and operating forces.
The SPUJ series have a 2mm travel while the SPUN Push Switches have 2.5mm switch travel. They are rated to 0.1A at 30V dc and 50μA at 3V dc with a 20mΩ contact resistance, 100MΩ minimum insulation resistance and 500V ac withstand voltage for one minute.
Available in this Series:
• Stock number 758-2114 is a 2 pole Momentary Straight switch
• Stock number 758-2111 is a 2 pole Latching Straight switch
• Stock number 758-2118 is a 4 pole Latching Straight switch
• Stock number 758-2127 is a 4 pole Latching Snap-in switch
• Stock number 758-2095 is a 2 pole Momentary Straight switch
• Stock number 758-2105 is a 2 pole Momentary Snap-in switch
• Stock number 758-2098 is a 2 pole Latching Straight switch
• Stock number 758-2091 is 2 pole Latching Snap-in switch
• Stock number 758-2108 is a 4 pole Latching Straight switch
• Stock number 758-2102 is a 4 pole Latching Snap-in switch
• Stock number 758-2114 is a 2 pole Momentary Straight switch
• Stock number 758-2111 is a 2 pole Latching Straight switch
• Stock number 758-2118 is a 4 pole Latching Straight switch
• Stock number 758-2127 is a 4 pole Latching Snap-in switch
• Stock number 758-2095 is a 2 pole Momentary Straight switch
• Stock number 758-2105 is a 2 pole Momentary Snap-in switch
• Stock number 758-2098 is a 2 pole Latching Straight switch
• Stock number 758-2091 is 2 pole Latching Snap-in switch
• Stock number 758-2108 is a 4 pole Latching Straight switch
• Stock number 758-2102 is a 4 pole Latching Snap-in switch
Dimensions:
• SPUJ 2 pole = 25mm overall depth, 8.8mm height, 7.5mm width
• SPUJ 4 pole = 32.5mm overall depth, 8.8mm height, 7.5mm width
• SPUN 2 pole = 42mm overall depth, 13mm height, 10mm width
• SPUN 4 pole = 54mm overall depth, 13mm height, 10mm width
• SPUJ 4 pole = 32.5mm overall depth, 8.8mm height, 7.5mm width
• SPUN 2 pole = 42mm overall depth, 13mm height, 10mm width
• SPUN 4 pole = 54mm overall depth, 13mm height, 10mm width
Alps Push Switches
사양
속성 | 값 |
|---|---|
| Switch Operation | Latching |
| Illuminated | No |
| Mounting Type | PCB |
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Voltage Rating | 30V dc |
| Contact Current Rating | 100 mA @ 30 V dc |
| Manufacturer Part No. | SPUN194700 |
| Terminal Type | Straight Through Hole |
