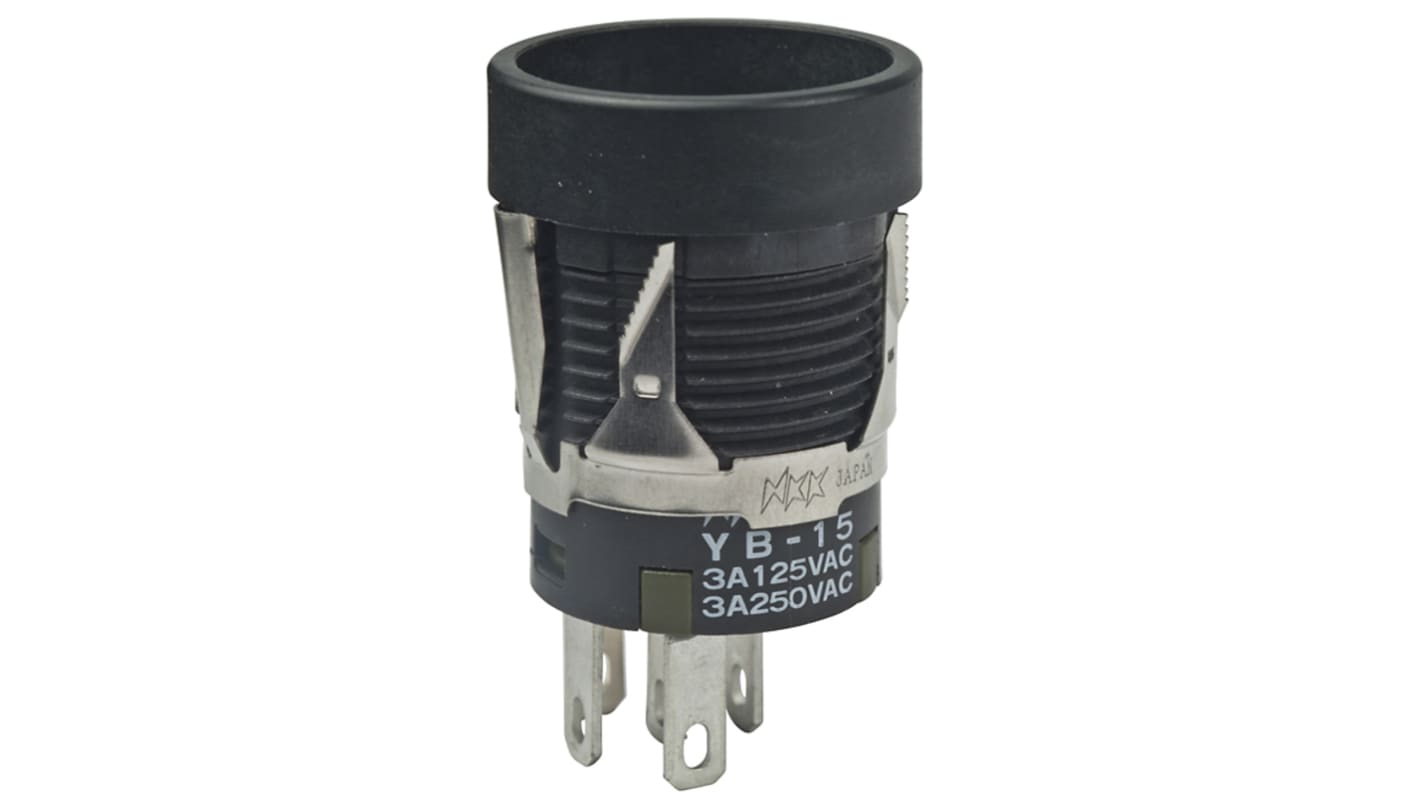

NKK Switches Push Button Switch, On-(On), Panel Mount, 15mm Cutout, SPDT, IP65
- RS 제품 번호:
- 181-7073
- 제조사 부품 번호:
- YB15MKW01
- 제조업체:
- NKK Switches
일시 품절-다음 입고 날짜는 08/08/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩17,111.008
| 수량 | 한팩당 |
| 1 - 4 | ₩17,111.008 |
| 5 - 49 | ₩16,424.498 |
| 50 + | ₩15,741.437 |
- RS 제품 번호:
- 181-7073
- 제조사 부품 번호:
- YB15MKW01
- 제조업체:
- NKK Switches
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- PH
제품 세부 사항
3A Power Level & 0.4VA Logic Level, Snap-in and Bushing Mount, Single and Bicolour LED Illumination, Square, Round and Rectangular Cap Options,
Full face or spot illumination with incandescent lamps or multi-element LEDs, with or without resistors.
Choice of super-bright LEDs in white, green, and blue or bright red, amber, and green LEDs.
Non-illuminated models available
Full face or spot illumination with incandescent lamps or multi-element LEDs, with or without resistors.
Choice of super-bright LEDs in white, green, and blue or bright red, amber, and green LEDs.
Non-illuminated models available
사양
속성 | 값 |
|---|---|
| Switch Operation | On-(On) |
| Panel Cut Out Diameter | 15mm |
| Mounting Type | Panel Mount |
| Contact Configuration | SPDT |
| Push Button Style | Round |
| IP Rating | IP65 |
| Contact Current Rating | 3 A |
| Contact Material | Silver |
| Contact AC Voltage Rating | 125V |
| Manufacturer Part No. | YB15MKW01 |
| Contact DC Voltage Rating | 30V |
| Case Colour | Black |
| Terminal Type | Solder Lug |
