- RS 제품 번호:
- 181-7047
- 제조사 부품 번호:
- JL15SKSBDP2
- 제조업체:
- NKK Switches
일시 품절-다음 입고 날짜는 16/08/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩43,277.741
수량 | 한팩당 |
1 - 4 | ₩43,277.741 |
5 - 49 | ₩41,545.941 |
50 + | ₩39,817.592 |
- RS 제품 번호:
- 181-7047
- 제조사 부품 번호:
- JL15SKSBDP2
- 제조업체:
- NKK Switches
제정법과 컴플라이언스
- COO (Country of Origin):
- PH
제품 세부 사항

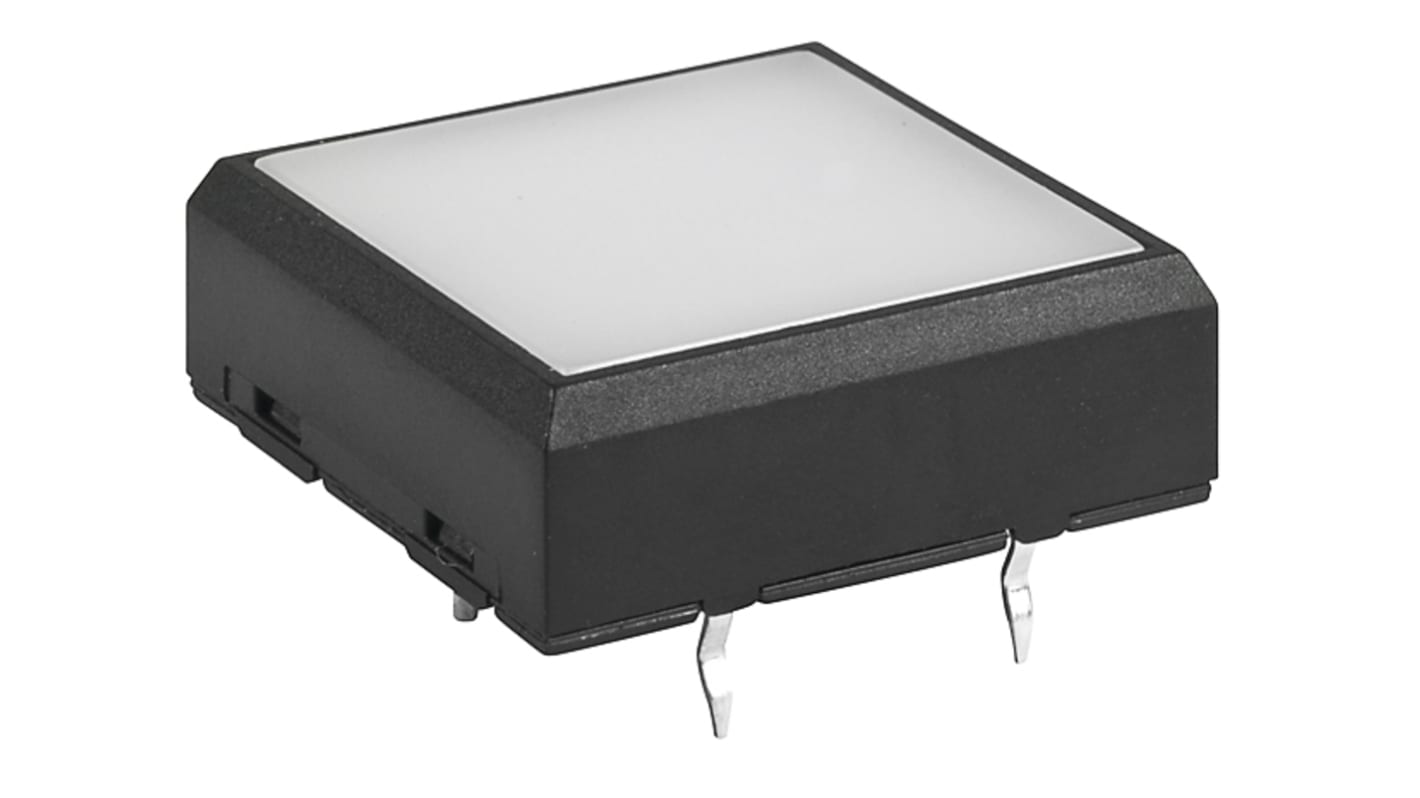

Bright, full-face illumination with choice of red, green, or amber LEDs. Multiple LED arrays and interior reflectors enhance illumination of the large, .75" (19mm) square actuator surface.
Distinctive design allows full-face illumination in extra low profile of 0.31" (7.85mm) from PCB to top of switch. Dome contact gives crisp tactile and audible feedback with short stroke and assures high reliability and long life of 1,000,000 operations.
Crimped terminals provide a spring-type action to ensure secure mounting and prevent dislodgment during the soldering process.
Streamlined housing dimensions provide for compact, side-by-side mounting on a standard grid. Terminal spacing conforms to standard .100" (2.54mm) PCB grid.
Distinctive design allows full-face illumination in extra low profile of 0.31" (7.85mm) from PCB to top of switch. Dome contact gives crisp tactile and audible feedback with short stroke and assures high reliability and long life of 1,000,000 operations.
Crimped terminals provide a spring-type action to ensure secure mounting and prevent dislodgment during the soldering process.
Streamlined housing dimensions provide for compact, side-by-side mounting on a standard grid. Terminal spacing conforms to standard .100" (2.54mm) PCB grid.
사양
속성 | 값 |
---|---|
Switch Operation | Off-(On) |
Illuminated | Yes |
Mounting Type | Through Hole |
Contact Configuration | SPST |
Push Button Style | Square |
LED Colour | Amber |
Contact Current Rating | 50 A |
Contact Material | Silver |
Manufacturer Part No. | JL15SKSBDP2 |
Contact DC Voltage Rating | 24V |
Terminal Type | PC Pin |
