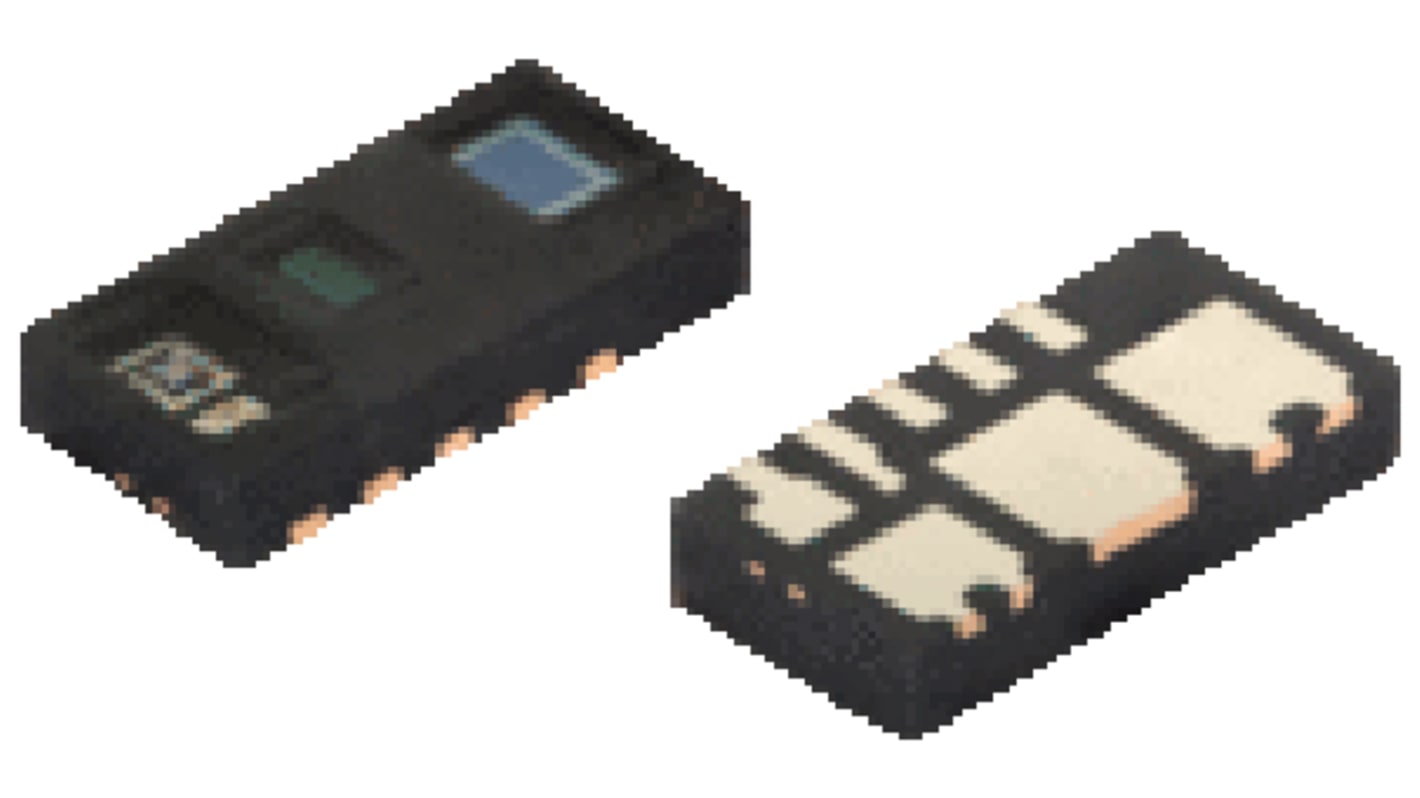

VCNL4020C-GS08 Vishay, VCNL4020C, 20mm 2.5 V to 3.6 V 10-Pin SMD

The VCNL4020C is a fully integrated biosensor and ambient light sensor. Fully integrated means that the infrared emitter is included in the package. It has 16 bit resolution. It includes a signal processing IC and features standard I 2C communication interface. It features an interrupt function.

Package type:surface-mount
Package form:SMD
Dimensions (L x W x H in mm):4.90 x 2.40 x 0.83
Integrated modules:Infrared emitter (IRED), ambient light sensor (ALS), photodiode (PD), and signal conditioning IC
Interrupt function
Supply voltage range VDD:2.5 V to 3.6 V
Supply voltage range IR anode:2.5 V to 5 V
Communication via I2C interface
I2C bus H-level range:1.7 V to 5 V
Floor life:72 h, MSL4
Low standby current consumption:1.5μA
Optical Biosensors Function
Built-in infrared emitter and broader sensitivity
photodiode allows to also work with green and red LEDs
16 bit effective resolution ensures excellent cross talk immunity
