SMC Multi channel controller PSE200, PNP x 5, IP40, IP65, 40mA, 1.5V
- RS 제품 번호:
- 537-2675
- 제조사 부품 번호:
- PSE201-A4C
- 제조업체:
- SMC
단종
- RS 제품 번호:
- 537-2675
- 제조사 부품 번호:
- PSE201-A4C
- 제조업체:
- SMC
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- FR
제품 세부 사항

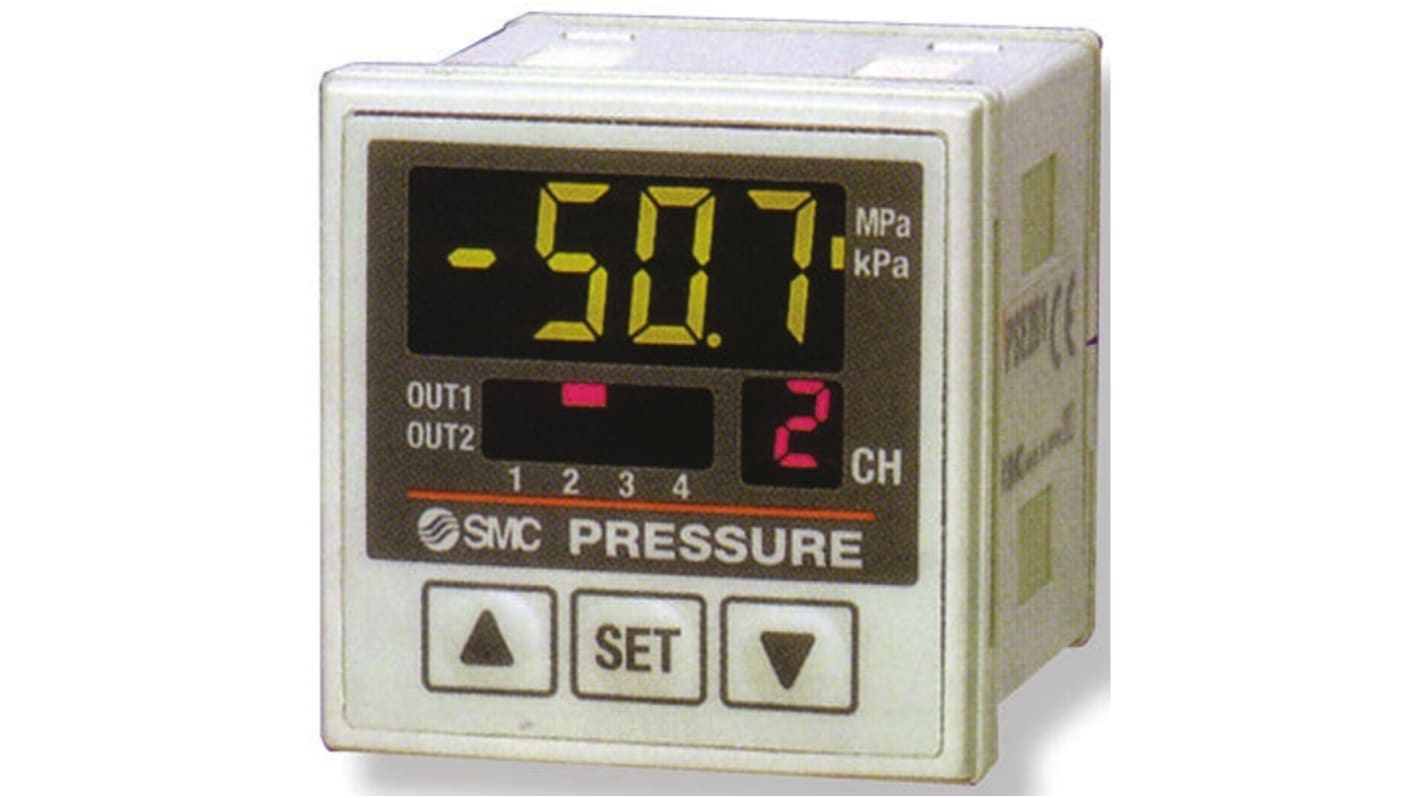

Multi-channel Pressure Sensor and Controller
Multi-channel digital pressure sensor controller and display unit.
Capacity to connect up to 4 pressure sensors
Five switching outputs (2 for channel 1, one for channels 2 to 4)
Vacuum and positive pressure measurement/control
0.5% FS measurement display accuracy
Auto preset and Auto shift functions
IP65 environmental rating when panel mounted
e-con sensor connector
Five switching outputs (2 for channel 1, one for channels 2 to 4)
Vacuum and positive pressure measurement/control
0.5% FS measurement display accuracy
Auto preset and Auto shift functions
IP65 environmental rating when panel mounted
e-con sensor connector
Note
사양
속성 | 값 |
|---|---|
| Display Type | Digital |
| Number of Switching Outputs | 5 |
| Manufacturer Series | PSE200 |
| IP Rating | IP40, IP65 |
| Supply Current | 40mA |
| Supply Voltage | 1.5V |
| Dimensions | 40.1 x 40 x 36.8mm |
| Height | 36.8mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | 0°C |
| Length | 40.1mm |
| Width | 40mm |
