- RS 제품 번호:
- 845-6984
- 제조사 부품 번호:
- TAH-30-683
- 제조업체:
- Cosel
일시 품절-다음 입고 날짜는 30/08/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩212,533.554
수량 | 한팩당 |
1 + | ₩212,533.554 |
- RS 제품 번호:
- 845-6984
- 제조사 부품 번호:
- TAH-30-683
- 제조업체:
- Cosel
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항

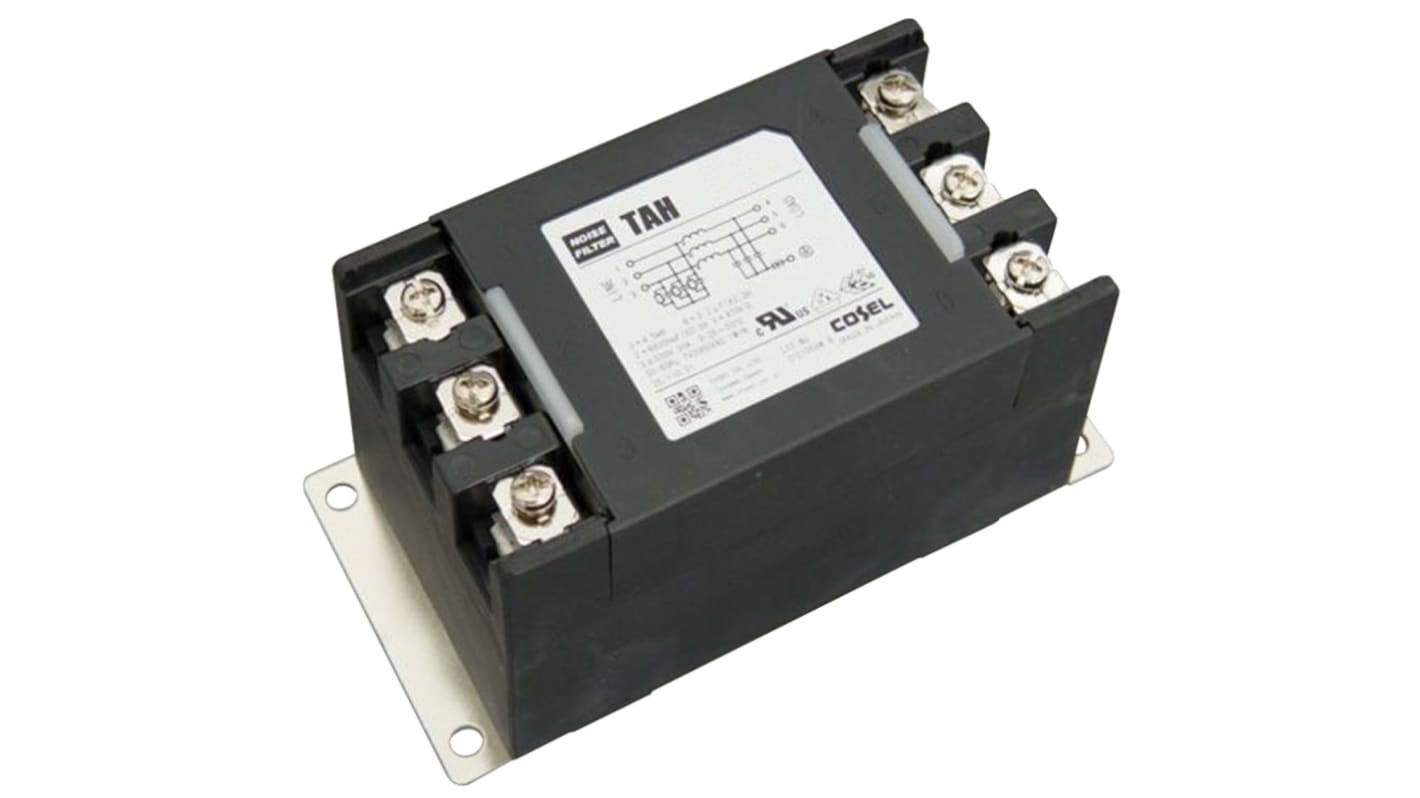

Cosel – TAH Series
The TAH series is a three phase noise filter designed for applications requiring an ultra-high attenuation type filter. They are suitable for many possible applications and feature easy connect push down style terminal blocks.
Features:
Ultra high attenuation of common mode noise from 10kHz to 1MHz
Three phase 500 Vac
Quick and easy push-down terminal
Just connect the wires, push down and tighten the screws with a screwdriver
DIN rail installation type (Optional)
Ultra high attenuation of common mode noise from 10kHz to 1MHz
Three phase 500 Vac
Quick and easy push-down terminal
Just connect the wires, push down and tighten the screws with a screwdriver
DIN rail installation type (Optional)
Standards
UL1283, CSA C22.2 No.8 (C-UL), DIN EN60939 VDE0565 Teil 3-1, ENEC
Noise Filter - Cosel
사양
속성 | 값 |
---|---|
Maximum Current Rating | 30A |
Maximum Voltage Rating | 500 V ac |
Mounting Type | Panel Mount |
Termination Style | Screw |
Number of Phases | 3 |
Series | TAH |
Number of Stages | Single Stage |
Operating Frequency | 10 kHz → 1MHz |
Length | 128mm |
Depth | 63mm |
Capacitance | 68nF |
Height | 66mm |
Dimensions | 128 x 63 x 66mm |
Minimum Operating Temperature | -40°C |
Leakage Current | 2.5 mA |
Maximum Operating Temperature | +85°C |
Resistance | 100MΩ |
