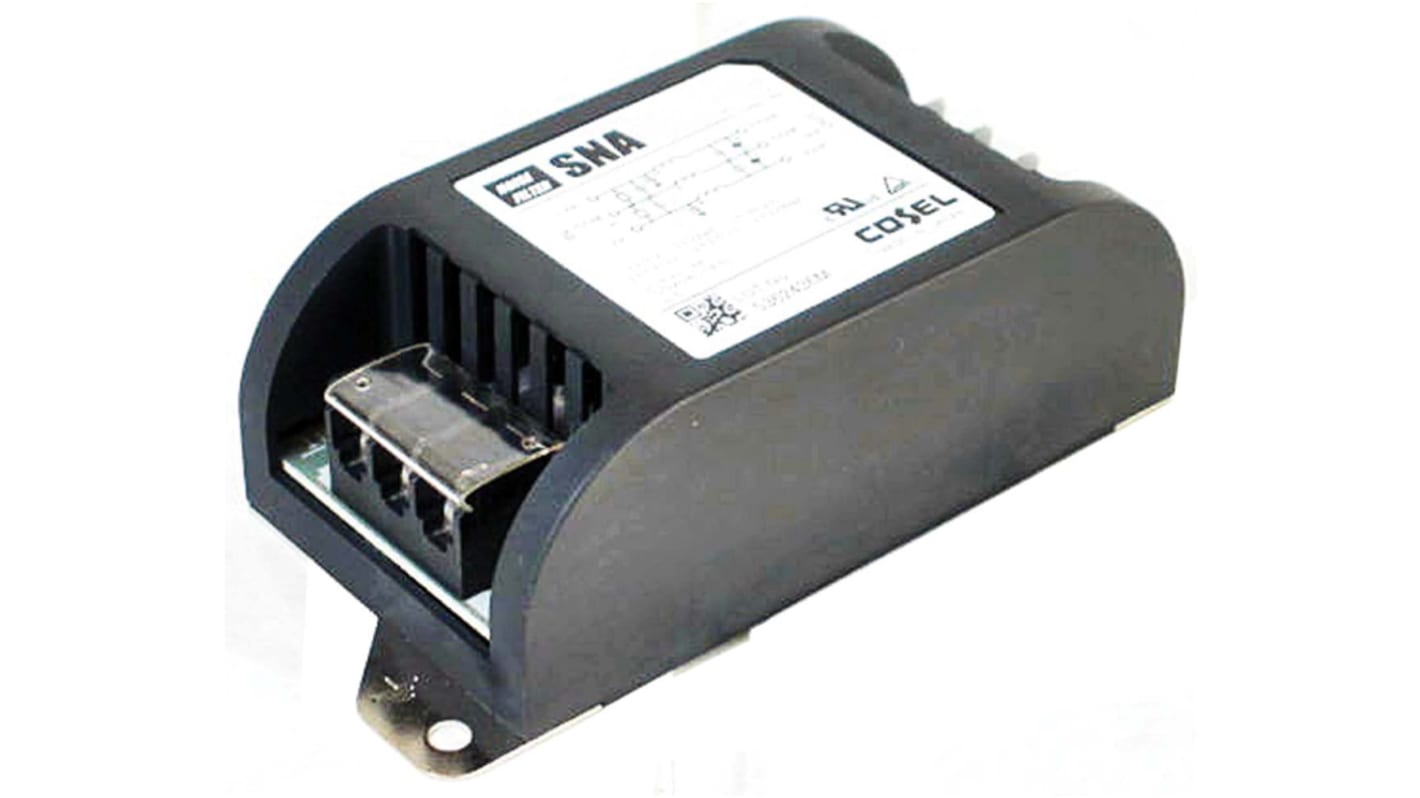

Cosel, SNA 6A ±50 V dc, Panel Mount RFI Filter, Screw
- RS 제품 번호:
- 845-6921
- 제조사 부품 번호:
- SNA-06-223
- 제조업체:
- Cosel
일시 품절-다음 입고 날짜는 14/05/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩36,179.778
| 수량 | 한팩당 |
| 1 + | ₩36,179.778 |
- RS 제품 번호:
- 845-6921
- 제조사 부품 번호:
- SNA-06-223
- 제조업체:
- Cosel
참조 문서
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- JP
제품 세부 사항
Cosel – SNA Series (1-6A)
The SNA series has been designed as a ripple noise attenuation type filter for switch mode power supplies (Vdc). They are most suited to applications utilising an analogue circuit.
Features:
±50 Vdc
Best filter for switch mode power supplies of analogue circuits (ex. power supply filter for an operational amplifier)
DIN rail installation type (Optional)
±50 Vdc
Best filter for switch mode power supplies of analogue circuits (ex. power supply filter for an operational amplifier)
DIN rail installation type (Optional)
Standards
UL60950-1, C-UL(CSA60950-1), EN60950-1
Noise Filter - Cosel
사양
속성 | 값 |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | ±50 V dc |
| Mounting Type | Panel Mount |
| Termination Style | Screw |
| Series | SNA |
| Number of Stages | Single Stage |
| Length | 117mm |
| Depth | 52mm |
| Height | 35mm |
| Capacitance | 22nF |
| Dimensions | 117 x 52 x 35mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +71°C |
| Resistance | 50MΩ |
| Standards Met | EN60950-1 |
