- RS 제품 번호:
- 845-6808
- 제조사 부품 번호:
- NAC-16-472
- 제조업체:
- Cosel
- RS 제품 번호:
- 845-6808
- 제조사 부품 번호:
- NAC-16-472
- 제조업체:
- Cosel
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항

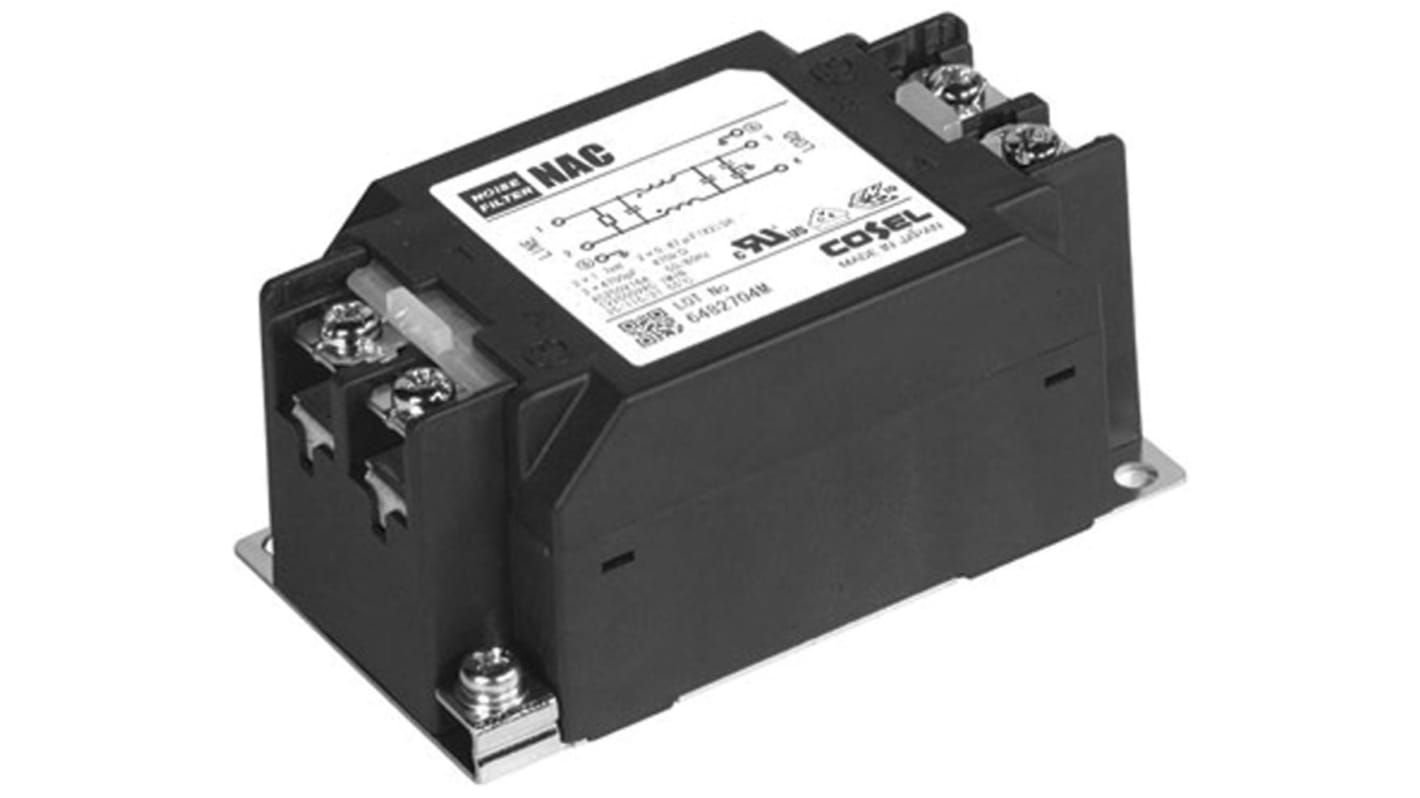

Cosel - NAC Series
The NAC series is a single phase noise filter designed for applications with a high-attenuation type of common mode noise from 150 kHz to 1 MHz. Maintenance and instillation time is reduced as they feature quick and easy push-down terminal. Connect the wires, push down and tighten the screws with a screwdriver.
Featues and Benefits:
High attenuation type of common mode noise from 150 kHz to 1 MHz
Single Phase 250 V ac
Selectable leakage current
DIN Rail installation type (Optional)
Push down type terminal block
Single Phase 250 V ac
Selectable leakage current
DIN Rail installation type (Optional)
Push down type terminal block
Standards
UL1283, CSA C22.2 No.8 (cUL), DIN EN60939 VDE0565 Teil 3-1, ENEC
Noise Filter - Cosel
사양
속성 | 값 |
---|---|
Maximum Current Rating | 16A |
Maximum Voltage Rating | 250 V ac/dc |
Mounting Type | Panel Mount |
Termination Style | Screw |
Number of Phases | 1 |
Series | NAC |
Number of Stages | Single Stage |
Operating Frequency | 150 kHz → 1MHz |
Length | 92mm |
Depth | 53mm |
Height | 43mm |
Capacitance | 4.7nF |
Dimensions | 92 x 53 x 43mm |
Leakage Current | 0.5 mA |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Resistance | 100MΩ |
