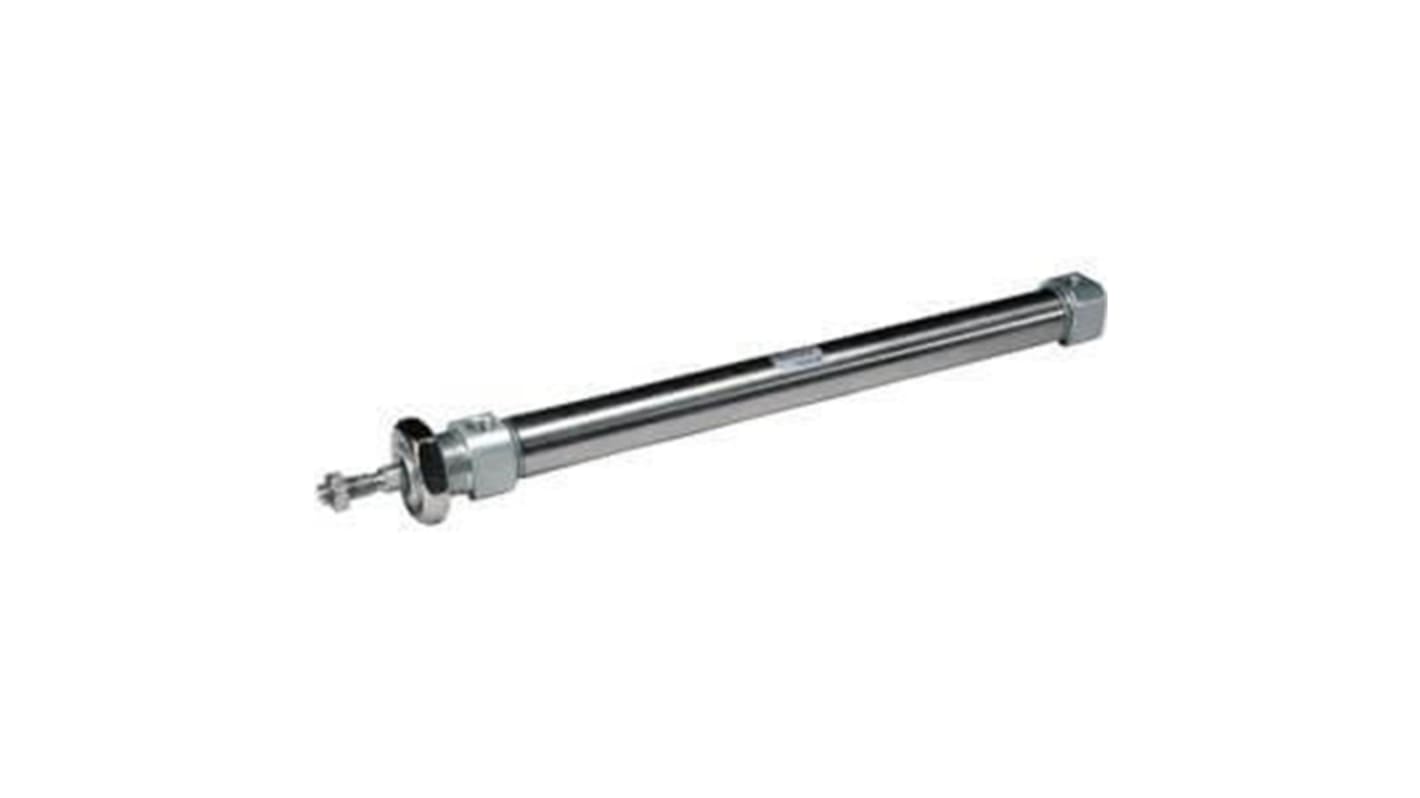

SMC 150 mm Pneumatic Cylinder - C85 Series, Double Acting Acting

RS 제품 번호:: 232-8727
제조사 부품 번호:: CD85KN25-150-B
제조업체:: SMC

SMC 150 mm Pneumatic Cylinder - C85 Series, Double Acting Acting

본 제품군 열람하기

Subtotal (1 unit)*

₩181,122.96

일시적 품절

2026년 4월 23일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩181,122.96

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 232-8727
제조사 부품 번호:: CD85KN25-150-B
제조업체:: SMC

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SMC
	Series	C85
	Product Type	Pneumatic Cylinder
	Action Type	Double Acting
	Mount Type	Through Hole
	Cushioning Type	Rubber Bumper
	Body Material	Aluminium Alloy
	Stroke Length	150mm
	Maximum Piston Speed	1500mm/s
	Rod Type	Single
	Piston Rod Gender	Female
	Piston Rod Thread Standard	Metric
	Maximum Operating Temperature	60°C
	Standards/Approvals	RoHS

	모두 선택
	브랜드 SMC
	Series C85
	Product Type Pneumatic Cylinder
	Action Type Double Acting
	Mount Type Through Hole
	Cushioning Type Rubber Bumper
	Body Material Aluminium Alloy
	Stroke Length 150mm
	Maximum Piston Speed 1500mm/s
	Rod Type Single
	Piston Rod Gender Female
	Piston Rod Thread Standard Metric
	Maximum Operating Temperature 60°C
	Standards/Approvals RoHS

COO (Country of Origin):: CZ

The SMC C85 series pneumatic air cylinder conforms to ISO 6432 and CETOP RP52P. It is available in bore sizes from 8mm to 25mm with standard strokes ranging from 10mm to 300mm. A unique rod packing design prevents entry of dust and the effectiveness of the seal is such that it is suitable for use in extremely dusty environments. With abrasion resistant packing's and replaceable nose seals, it offers exceptional service life.

High quality bronze bush in clevis bearing extends the life of cylinder

Double swaging of the end covers of the barrel provides an absolutely air tight union

Easy accurate mounting

Minimized side clearance
