Festo 500 mm Pneumatic Cylinder - 19226 Double Acting Acting

RS 제품 번호:: 121-4667
제조사 부품 번호:: DSNU-25-200-P-A
제조업체:: Festo

Festo 500 mm Pneumatic Cylinder - 19226 Double Acting Acting

Subtotal (1 unit)*

₩102,309.60

재고있음

12 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩102,309.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 121-4667
제조사 부품 번호:: DSNU-25-200-P-A
제조업체:: Festo

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Festo
	Product Type	Pneumatic Cylinder
	Action Type	Double Acting
	Model Number	19226
	Mount Type	Front, Flange, Swivel, Foot, Direct, Rear
	Cushioning Type	Elastic
	Stroke Length	500mm
	Length	341.5mm
	Maximum Piston Speed	100mm/s
	Piston Rod Gender	Male/Female
	Piston Rod Thread Standard	Metric
	Maximum Operating Temperature	80°C
	Standards/Approvals	ISO 6432, CE marking to EU Explosion Protection Directive (ATEX), ATEX certification II 2GD, Germanischer Lloyd
	Distrelec Product Id	301-68-650

	모두 선택
	브랜드 Festo
	Product Type Pneumatic Cylinder
	Action Type Double Acting
	Model Number 19226
	Mount Type Front, Flange, Swivel, Foot, Direct, Rear
	Cushioning Type Elastic
	Stroke Length 500mm
	Length 341.5mm
	Maximum Piston Speed 100mm/s
	Piston Rod Gender Male/Female
	Piston Rod Thread Standard Metric
	Maximum Operating Temperature 80°C
	Standards/Approvals ISO 6432, CE marking to EU Explosion Protection Directive (ATEX), ATEX certification II 2GD, Germanischer Lloyd
	Distrelec Product Id 301-68-650

COO (Country of Origin):: DE

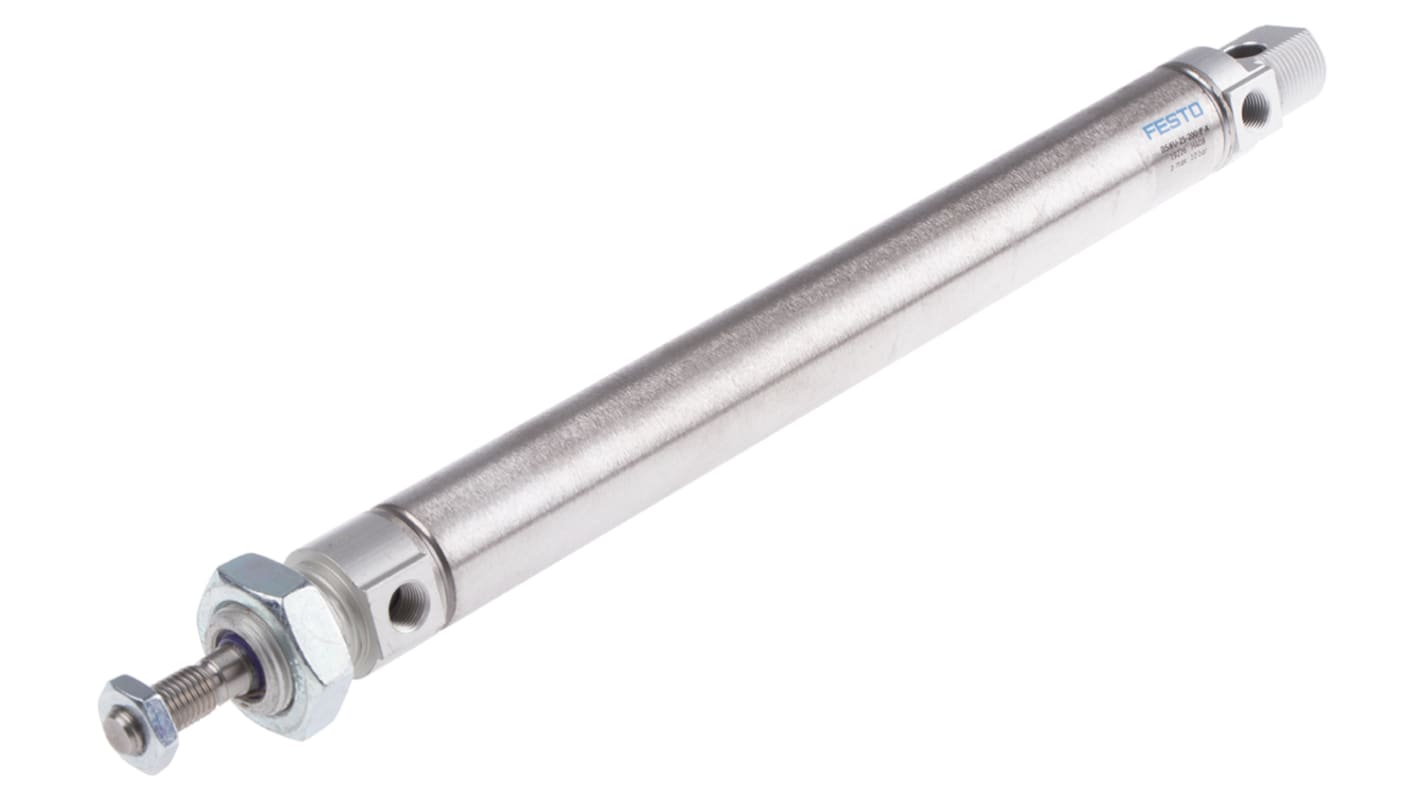

Festo Pneumatic Cylinder, M10 Piston Rod Thread, Wrought Aluminium Alloy Construction - DSNU-25-200-P-A

Use this pneumatic cylinder from Festo in your air-controlled industrial equipment to get loads moving in the right direction. It's a double-acting device, so the forward and reverse thrust of its piston is controlled by compressed air pushing through its two ports. The cylinder's wrought aluminium alloy housing keeps it in shape to handle the impact and corrosion that come with harsh environments. Thanks to a return stroke force of 274.4N and advance stroke force of 294.5N, it's a sturdy choice for heavy-duty applications.

Features & Benefits

• Can be installed with a proximity sensor for automated operation

• Flexible cushioning rings and plates at both ends prevent noise and vibration for improved performance

• Mountable in any position for versatility

• G1/8 threaded port for simple, time-saving installation

Applications

• Measurement and instrumentation devices

• Robotics and automation systems

• Water treatment plants

What's the temperature tolerance of this pneumatic cylinder?

As the unit operates in a wide temperature range of -20°C to -80°C, you can trust it to work safely in demanding environments.

How much pressure can the cylinder withstand?

This product handles between 1 and 10 bar of input pressure, so you can use it with both low-pressure and high-pressure equipment.
