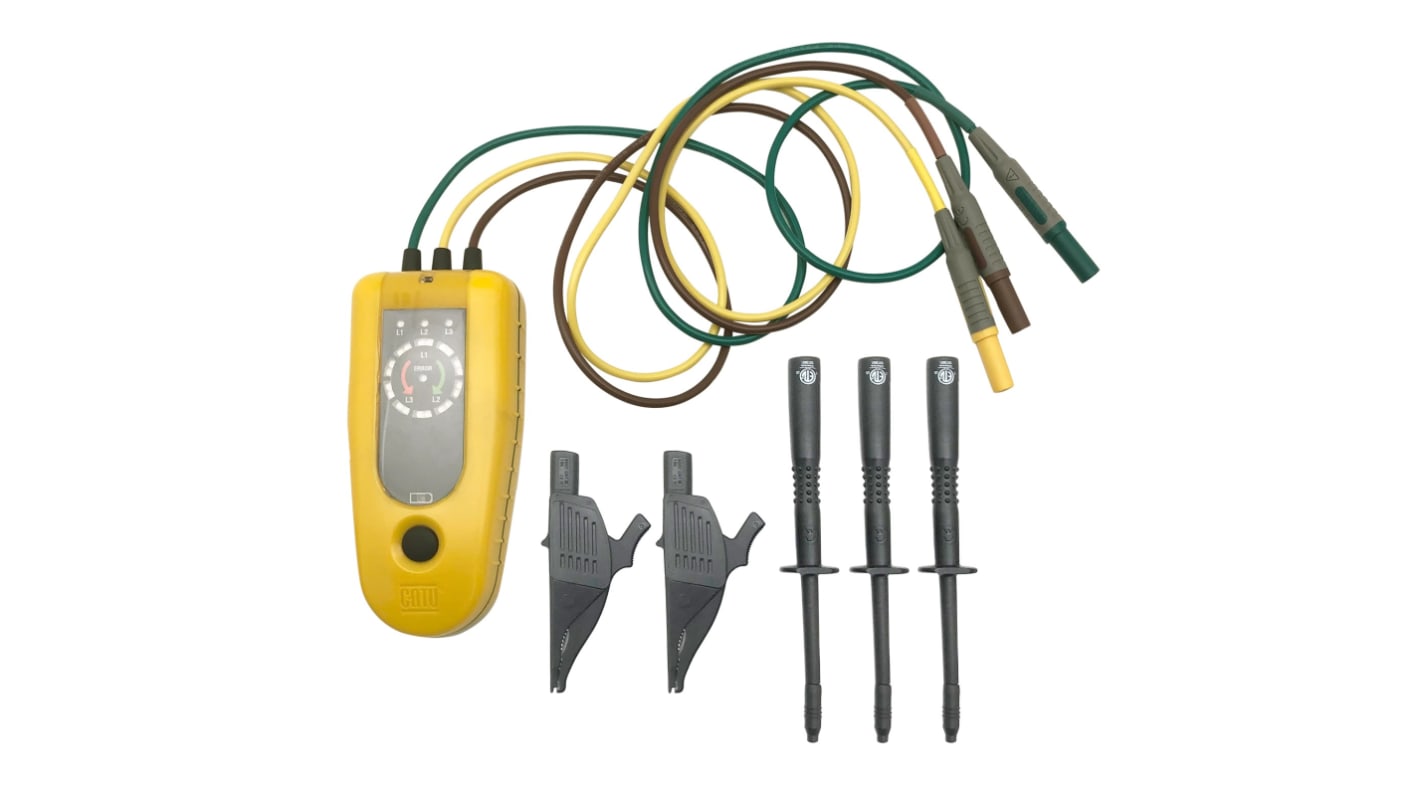

Catu MS-152 Phase Rotation Tester, 60Hz Max, 400V Max
- RS 제품 번호:
- 188-3957
- 제조사 부품 번호:
- MS-153
- 제조업체:
- Catu
- RS 제품 번호:
- 188-3957
- 제조사 부품 번호:
- MS-153
- 제조업체:
- Catu
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- FR
제품 세부 사항
Phase order indicator
Rotating fields indicated via LED.
Rotation direction indicated by "OK" and "Reverse" arrows.
Fault detection LEDs for connection errors, cut or absent phase or neutral amongst the phases.
Rotation direction indicated by "OK" and "Reverse" arrows.
Fault detection LEDs for connection errors, cut or absent phase or neutral amongst the phases.
Application
• Phase rotation indicator activated from 85 V.
• Signaling via the successive lighting of diodes symbolising rotation.
• Works on generating unit.
• Signaling via the successive lighting of diodes symbolising rotation.
• Works on generating unit.
Features
The diodes indicate :
o clockwise rotation: mark with arrow OK,
o Anti clockwise rotation indicated by the red arrow "INVERSE"
o Fault: the DEFECT diode (DEFAUT) indicates an error of connection such as the cut or absence of phase or the presence of neutral between phases
o clockwise rotation: mark with arrow OK,
o Anti clockwise rotation indicated by the red arrow "INVERSE"
o Fault: the DEFECT diode (DEFAUT) indicates an error of connection such as the cut or absence of phase or the presence of neutral between phases
Composition
• 3 probes IP2X with retractable protector with 1.20 m flexible cable.
• 2 crocodile clamps.
• 1 carrying bag with stray.
• 2 crocodile clamps.
• 1 carrying bag with stray.
사양
속성 | 값 |
|---|---|
| Connection Type | Test Probe |
| Overvoltage Category | CAT III 400V |
| Dimensions | 100 x 60 x 25mm |
| Weight | 100g |
| Height | 25mm |
| Length | 100mm |
| Maximum Frequency | 60Hz |
| Width | 60mm |
| Minimum Voltage | 90V |
| Model Number p | MS-152 |
| Maximum Voltage | 400V |
| Minimum Frequency | 50 Hz |
