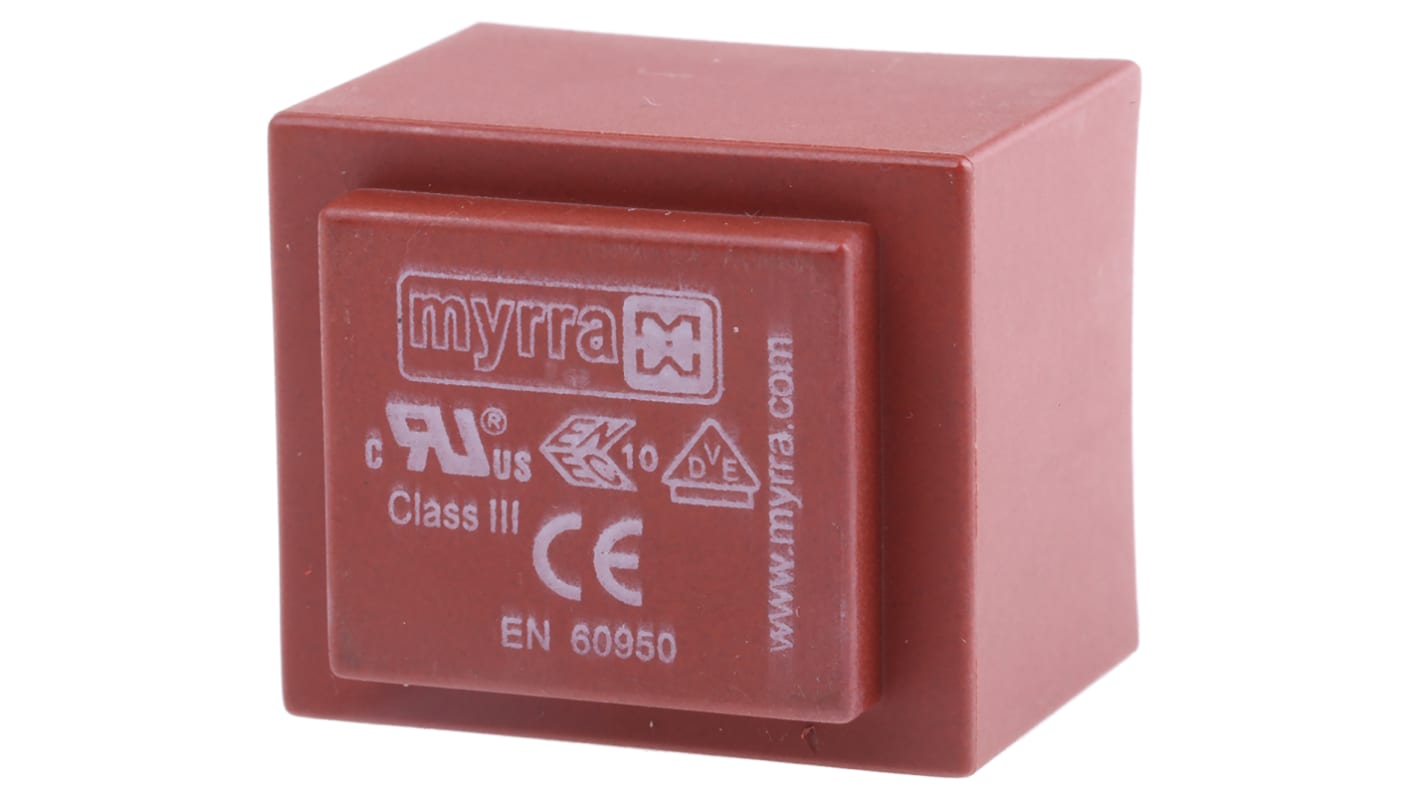

Myrra 2 x 12V ac 2 Output Through Hole PCB Transformer, 2VA

RS 제품 번호:: 173-9737
제조사 부품 번호:: 44129
제조업체:: Myrra

Myrra 2 x 12V ac 2 Output Through Hole PCB Transformer, 2VA

26 <재고있음> 5-9영업일내 홍콩 발송

130 <재고있음> 5-9영업일내 홍콩 발송

추가완료!

단가 개당

₩16,955.767

수량	한팩당
1 - 24	₩16,955.767
25 - 49	₩16,602.163
50 - 99	₩16,091.592
100 - 249	₩15,700.04
250 +	₩15,361.959

RS 제품 번호:: 173-9737
제조사 부품 번호:: 44129
제조업체:: Myrra

참조 문서

PCB Mount Transformers- EI Range 2VA

제정법과 컴플라이언스

해당 안됨

COO (Country of Origin):: FR

제품 세부 사항

Type EI 30 - 1 VA → 2.3 VA series 44000 transformers

From Myyra, the 44000 Series of type EI transformers are professional safety transformers featuring an insulation of above 4000V. Inherently short circuit proof and comprising of non-flammable and self-extinguishing materials, the 44000 series of transformers are extrememly reliable.

Features and Benefits:

• Professional safety transformers with insulation above 4000V.
• For installation on printed circuit boards (according to European grid).
• Coupling in series or parallel.
• Vacuum-filled with resin to ensure materials withstand aging.
• Unit and 100% control on automated line.
• Secondary voltages are nominal load voltages on resistive loads.

Standards

UL 94-V0; VDE 0551; IEC 742

Approvals

UL, VDE

Encapsulated – Toroidal

Note

Fixing screws not provided

사양

속성	값
Secondary Voltage Rating	2 x 12V ac
Power Rating	2VA
Primary Voltage Rating	230V ac
Number of Outputs	2
Length	32.6mm
Width	27.6mm
Depth	27.3mm
Dimensions	32.6 x 27.6 x 27.3mm
Weight	100g
Mounting Type	Through Hole
Maximum Temperature	+70°C
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
