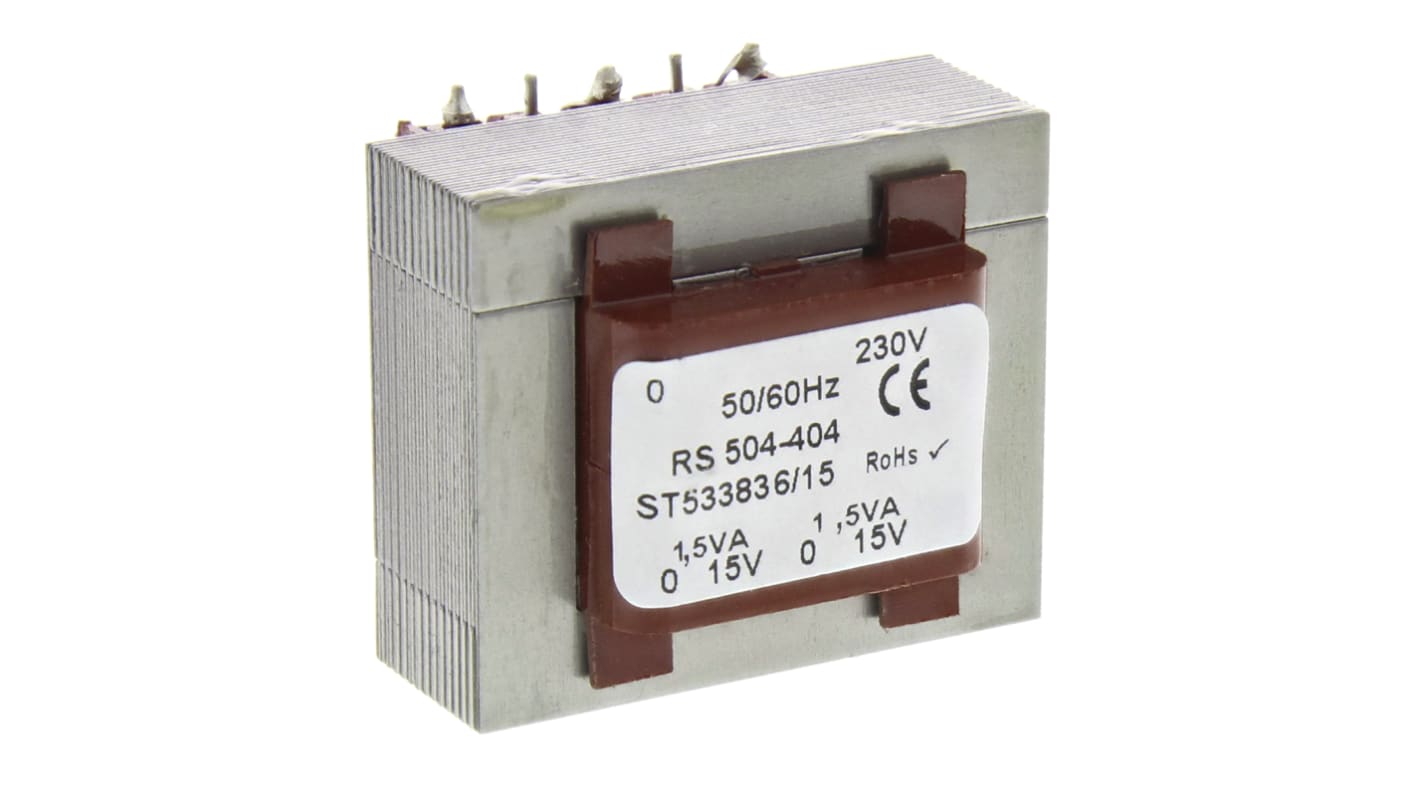

RS PRO 15V ac 2 Output Through Hole PCB Transformer, 3VA
- RS 제품 번호:
- 504-404
- 제조업체:
- RS PRO
25 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩37,235.416
| 수량 | 한팩당 |
| 1 - 9 | ₩37,235.416 |
| 10 - 24 | ₩35,746.828 |
| 25 - 49 | ₩34,258.239 |
| 50 + | ₩33,513.082 |
- RS 제품 번호:
- 504-404
- 제조업체:
- RS PRO
제정법과 컴플라이언스
- COO (Country of Origin):
- PL
제품 세부 사항
PCB Mounting, Flame Retardant Transformer with Thermal Fuse
Thermal fuse in primary providing overload and short circuit protection
Flame retardant materials to UL94-V0
Fully shrouded windings
Extra pins for secure board mounting
Designed and tested in accordance with EN 61558 (EN 60742) EN 60950
Flame retardant materials to UL94-V0
Fully shrouded windings
Extra pins for secure board mounting
Designed and tested in accordance with EN 61558 (EN 60742) EN 60950
Approvals
8888
Standards
EN 61558 (EN 60742); EN 60950
Open Frame - Laminated
PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Double section metric bobbin construction
Full varnish impregnation
Full varnish impregnation
사양
속성 | 값 |
|---|---|
| Secondary Voltage Rating | 15V ac |
| Power Rating | 3VA |
| Primary Voltage Rating | 230V ac |
| Number of Outputs | 2 |
| Length | 38mm |
| Width | 35mm |
| Depth | 30mm |
| Dimensions | 38 x 35 x 30mm |
| Weight | 140g |
| Mounting Type | Through Hole |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
