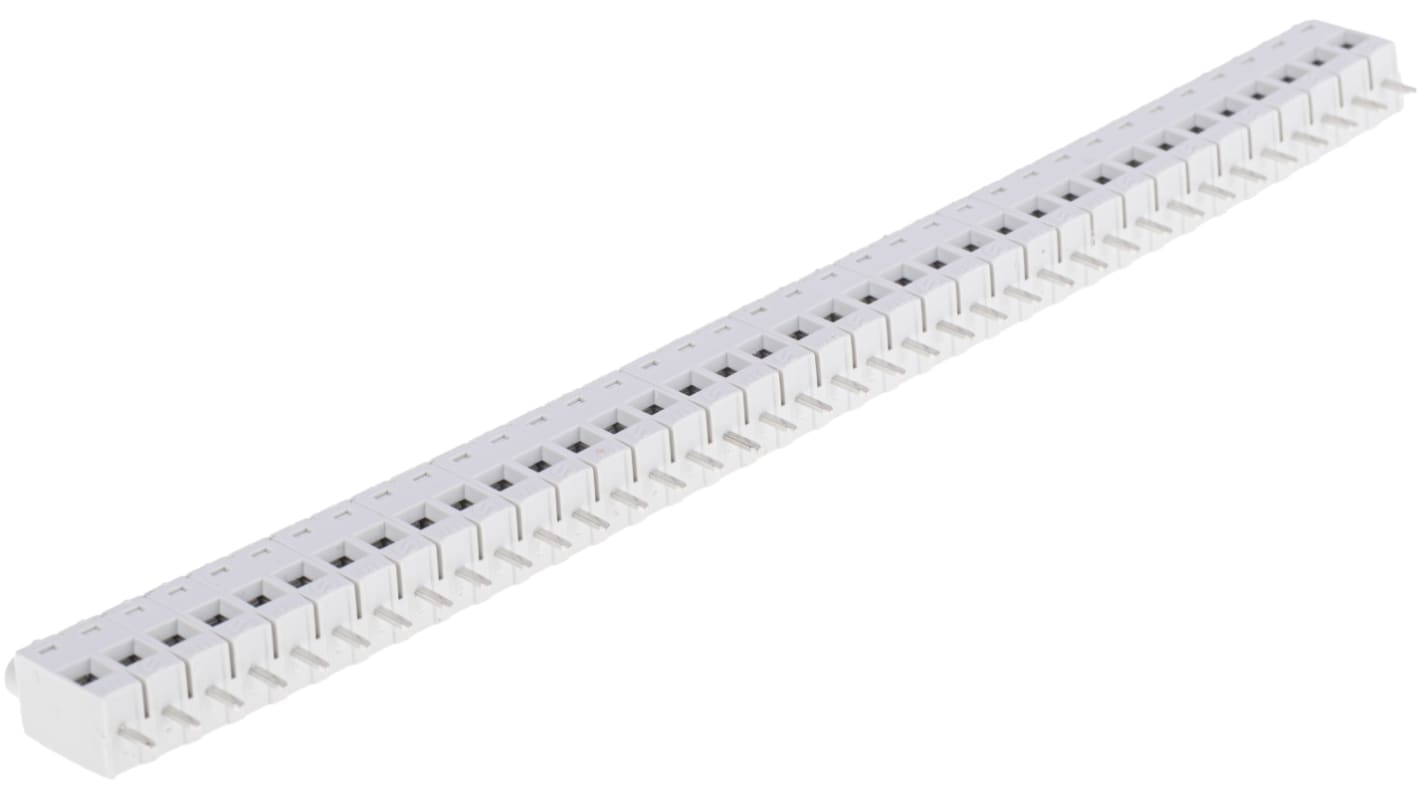

CAMDENBOSS PCB Terminal Block, 36-Contact, 5mm Pitch, Through Hole Mount, 1-Row, Screw Termination
- RS 제품 번호:
- 425-522
- 제조사 부품 번호:
- CTB7000/36
- 제조업체:
- CAMDENBOSS
316 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩18,846.257
| 수량 | 한팩당 |
| 1 - 74 | ₩18,846.257 |
| 75 - 399 | ₩18,094.201 |
| 400 + | ₩17,338.695 |
- RS 제품 번호:
- 425-522
- 제조사 부품 번호:
- CTB7000/36
- 제조업체:
- CAMDENBOSS
참조 문서
제정법과 컴플라이언스
제품 세부 사항
Cut to Length Screw Terminals
36-way PCB mounting rising clamp screw terminals which can be cut to length easily
Flame retardant polycarbonate with 3.5mm² cable entry
Available in horizontal and vertical types
Flame retardant polycarbonate with 3.5mm² cable entry
Available in horizontal and vertical types
Approvals
8888
5.0mm Pitch PCB Terminal Blocks
사양
속성 | 값 |
|---|---|
| Number of Contacts | 36 |
| Pitch | 5mm |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Gender | Male |
| Termination Method | Screw |
| Type | PCB Terminal Block |
| Current Rating | 13A |
| Body Orientation | Straight |
| Voltage Rating | 380 V |
| Material | PC |
| Length | 180mm |
| Depth | 15.5mm |
| Width | 8.5mm |
