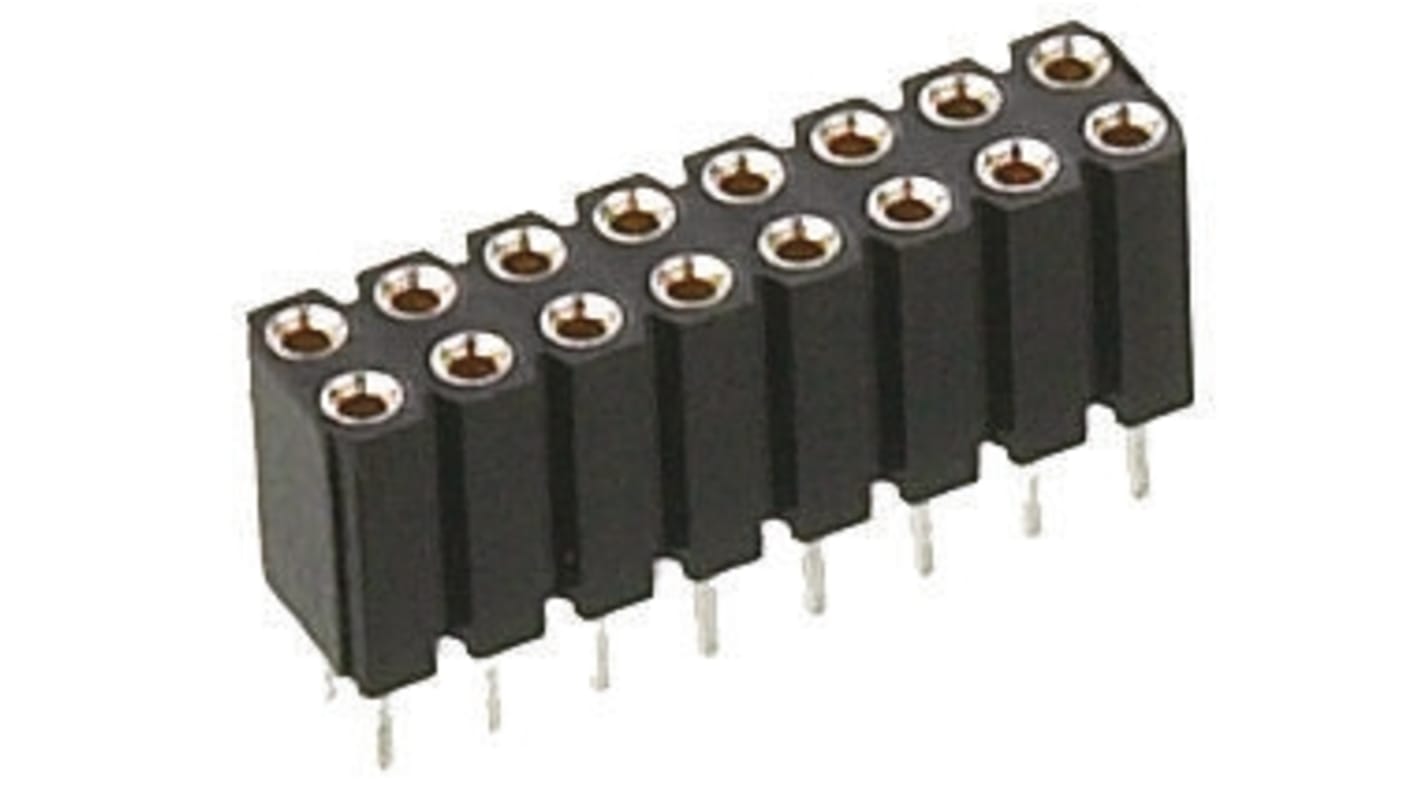

Preci-Dip 803 Series Straight PCB Mount PCB Socket, 18-Contact, 2-Row, 2.54mm Pitch, Solder Termination
- RS 제품 번호:
- 702-2919P
- 제조사 부품 번호:
- 803-87-018-10-012101
- 제조업체:
- Preci-Dip
일시 품절-다음 입고 날짜는 01/07/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개(박스에 담겨 공급됨)
₩2,690.844
| 수량 | 한팩당 |
| 125 - 370 | ₩2,690.844 |
| 375 - 995 | ₩2,606.324 |
| 1000 - 1995 | ₩2,552.852 |
| 2000 + | ₩2,497.655 |
- RS 제품 번호:
- 702-2919P
- 제조사 부품 번호:
- 803-87-018-10-012101
- 제조업체:
- Preci-Dip
제정법과 컴플라이언스
- COO (Country of Origin):
- CH
제품 세부 사항
2.54 mm IC Sockets Ø 0.76 mm pin
Swiss Preci-dip Socket Connectors both Through Hole and SMD mountings.
Sockets have Tin plated Brass sleeves with Flash Gold plated Beryllium Copper (4 finger) contact clips
Right Angle SMD mounting are cranked pin type
Straight SMD mounting are Gull-Wing type
80*-**-***-10-012*** Series are Low Profile straight headers
Right Angle SMD mounting are cranked pin type
Straight SMD mounting are Gull-Wing type
80*-**-***-10-012*** Series are Low Profile straight headers
Standards
UL 94V-0
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Number of Contacts | 18 |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Type | Board to Board |
| Mounting Type | PCB Mount |
| Body Orientation | Straight |
| Termination Method | Solder |
| Current Rating | 12A |
| Voltage Rating | 100 V ac, 150 V dc |
| Series | 803 |
| Contact Material | Beryllium Copper |
