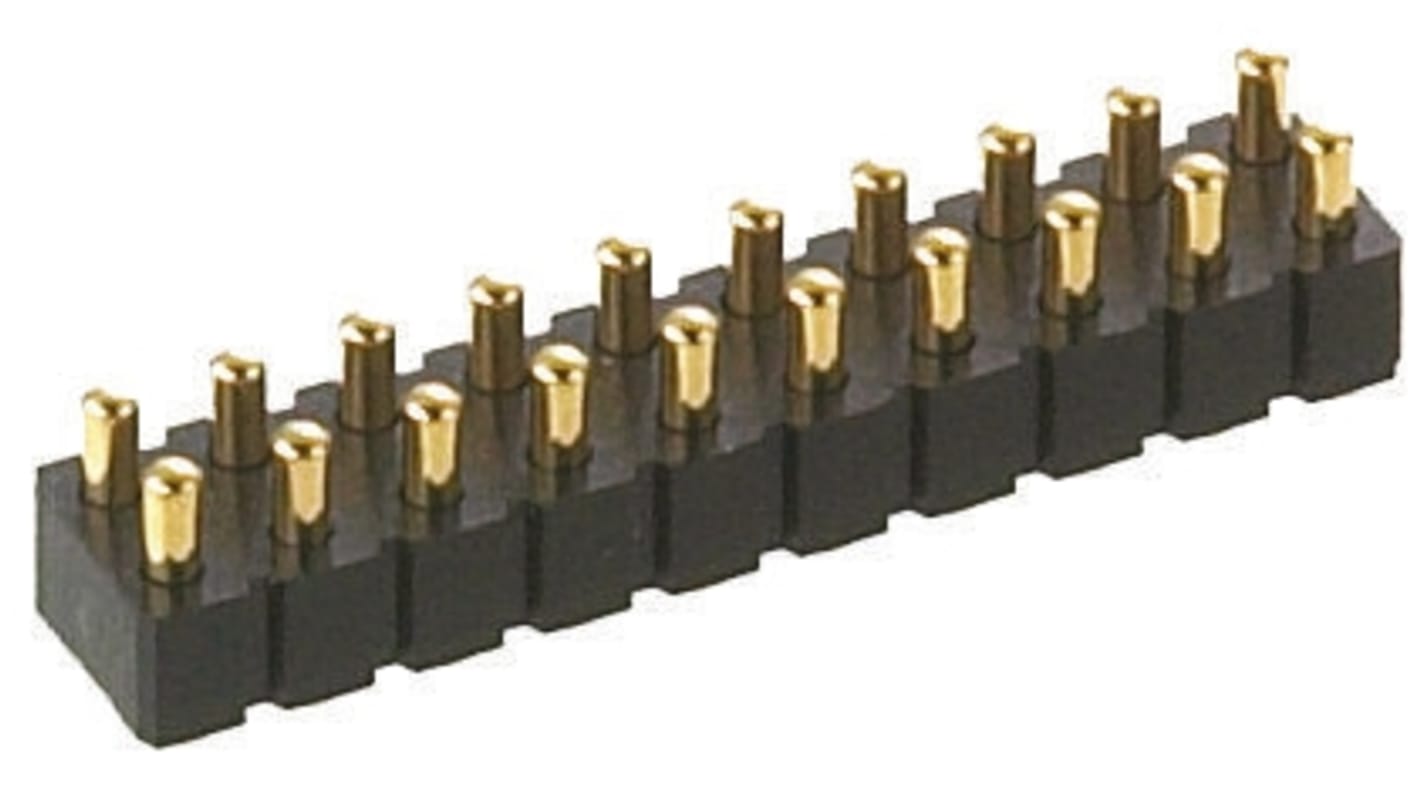

Preci-Dip Straight Surface Mount Spring Loaded Connector, 14 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded
- RS 제품 번호:
- 702-4551P
- 제조사 부품 번호:
- 813-SS-014-30-003191
- 제조업체:
- Preci-Dip
일시 품절-다음 입고 날짜는 03/07/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당(릴로 공급됨) 150pcs 이하는 STRIP 포장
₩18,882.48
| 수량 | 한팩당 |
| 1 + | ₩18,882.48 |
- RS 제품 번호:
- 702-4551P
- 제조사 부품 번호:
- 813-SS-014-30-003191
- 제조업체:
- Preci-Dip
제정법과 컴플라이언스
- COO (Country of Origin):
- CH
제품 세부 사항
2.54 mm DIL Spring-Loaded Contacts, Surface Mount Pad
These Preci-dip DIL 813-S1 Series low resistance modular connectors have spring-loaded contacts (SLC) with surface mount pads.
The Height dimension gives the initial height of the spring-loaded contacts
The plastic body height is 4 mm
The plunger stroke length is 1.4 mm
The plastic body height is 4 mm
The plunger stroke length is 1.4 mm
Note
For counterpart SMT DIL Pad Connectors see stock number 702-0420 typical
Standards
UL 94V-0
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Preci-dip Spring-Loaded Connectors
A perfect alternative to conventional connection solutions. The electrical multipoint connection between the mobile piston and the clip guarantees low, stable electrical resistance values without micro-discontinuities, even when the piston is moving or vibrating, thus assuring maximum reliability.
사양
속성 | 값 |
|---|---|
| Pitch | 2.54mm |
| Number of Contacts | 14 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Brass |
| Current Rating | 3.5A |
| Voltage Rating | 100 V ac, 150 V dc |
| Gender | Male |
