Preci-Dip Straight Through Hole Pin Header, 9 Contact(s), 1.27mm Pitch, 1 Row(s), Unshrouded
- RS 제품 번호:
- 702-0143P
- 제조사 부품 번호:
- 850-80-009-10-001101
- 제조업체:
- Preci-Dip
140 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개(봉지에 담겨 공급됨)
₩2,963.378
| 수량 | 한팩당 |
| 125 - 370 | ₩2,963.378 |
| 375 - 995 | ₩2,854.71 |
| 1000 - 1995 | ₩2,794.338 |
| 2000 + | ₩2,733.967 |
- RS 제품 번호:
- 702-0143P
- 제조사 부품 번호:
- 850-80-009-10-001101
- 제조업체:
- Preci-Dip
제정법과 컴플라이언스
- COO (Country of Origin):
- CH
제품 세부 사항

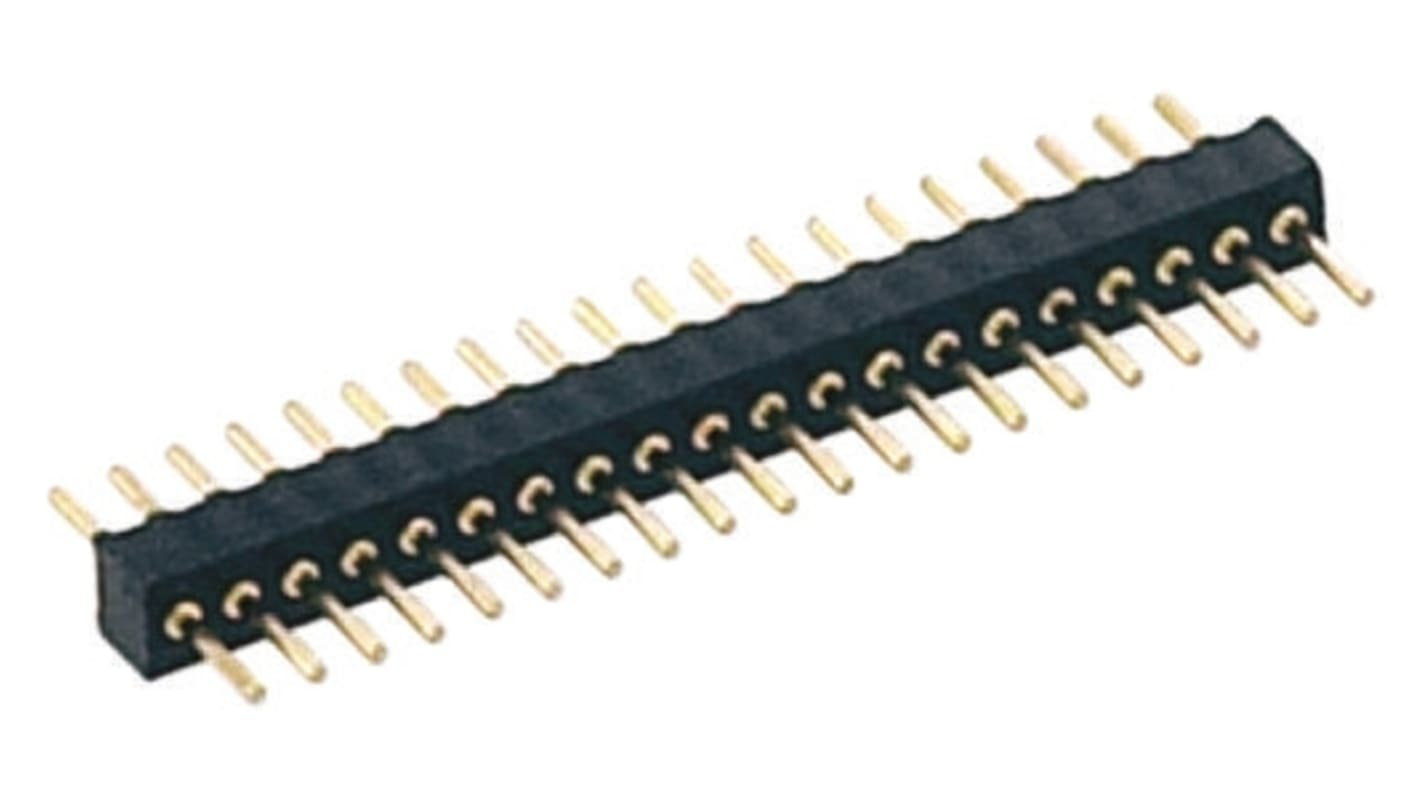

1.27 mm IC Pin Connectors Ø 0.41 mm pin
These Swiss Preci-dip IC Ultraminiature PCB Pin Connectors are solder tail Through Hole or SMD perpendicular mount headers.
The SIL straight Through Hole headers have a Body height of 2.2 mm and Tail length of 2.9 mm
The DIL straight Through Hole headers have a Body height of 2.1 mm and Tail length of 3 mm
The SMD perpendicular mount headers are Gull-Wing type
All have Brass Tin plated terminations
The DIL straight Through Hole headers have a Body height of 2.1 mm and Tail length of 3 mm
The SMD perpendicular mount headers are Gull-Wing type
All have Brass Tin plated terminations
Standards
UL 94V-0
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Pitch | 1.27mm |
| Number of Contacts | 9 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Unshrouded |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Tin |
| Contact Material | Brass |
| Current Rating | 1.0A |
| Voltage Rating | 100 V ac, 150 V dc |
| Gender | Male |
