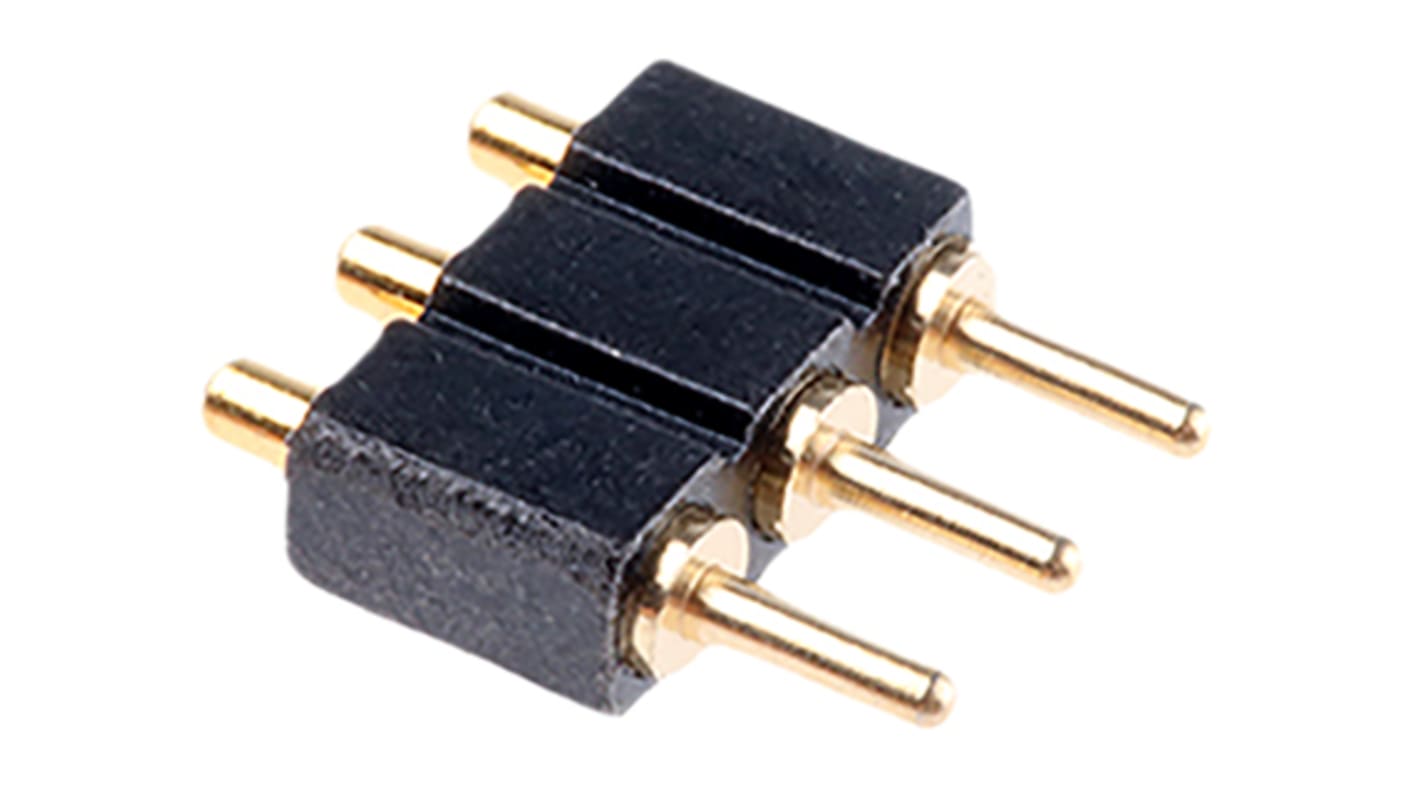

Preci-Dip Straight Through Hole Spring Loaded Connector, 3 Contact(s), 2.54mm Pitch, 1 Row(s), Shrouded
- RS 제품 번호:
- 701-9950
- 제조사 부품 번호:
- 811-S1-003-10-014101
- 제조업체:
- Preci-Dip
일시 품절-다음 입고 날짜는 05/07/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩3,453.25
| 수량 | 한팩당 |
| 1 - 24 | ₩3,453.25 |
| 25 - 74 | ₩3,349.756 |
| 75 - 199 | ₩3,244.537 |
| 200 - 399 | ₩3,173.816 |
| 400 + | ₩3,104.82 |
- RS 제품 번호:
- 701-9950
- 제조사 부품 번호:
- 811-S1-003-10-014101
- 제조업체:
- Preci-Dip
제정법과 컴플라이언스
- COO (Country of Origin):
- CH
제품 세부 사항
2.54 mm SIL Spring-Loaded Contacts, Through Hole
These Preci-dip SIL 813-S1 Series low resistance modular connectors have spring-loaded contacts (SLC) with through hole mounting into the PCB.
The Height dimension gives the initial height of the spring-loaded contacts
The plastic body height is 4 mm
The plunger stroke length is 1.4 mm
The plastic body height is 4 mm
The plunger stroke length is 1.4 mm
Note
Standards
UL 94V-0
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Preci-dip Spring-Loaded Connectors
A perfect alternative to conventional connection solutions. The electrical multipoint connection between the mobile piston and the clip guarantees low, stable electrical resistance values without micro-discontinuities, even when the piston is moving or vibrating, thus assuring maximum reliability.
사양
속성 | 값 |
|---|---|
| Pitch | 2.54mm |
| Number of Contacts | 3 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Brass |
| Current Rating | 3.5A |
| Voltage Rating | 100 V ac, 150 V dc |
| Gender | Male |
