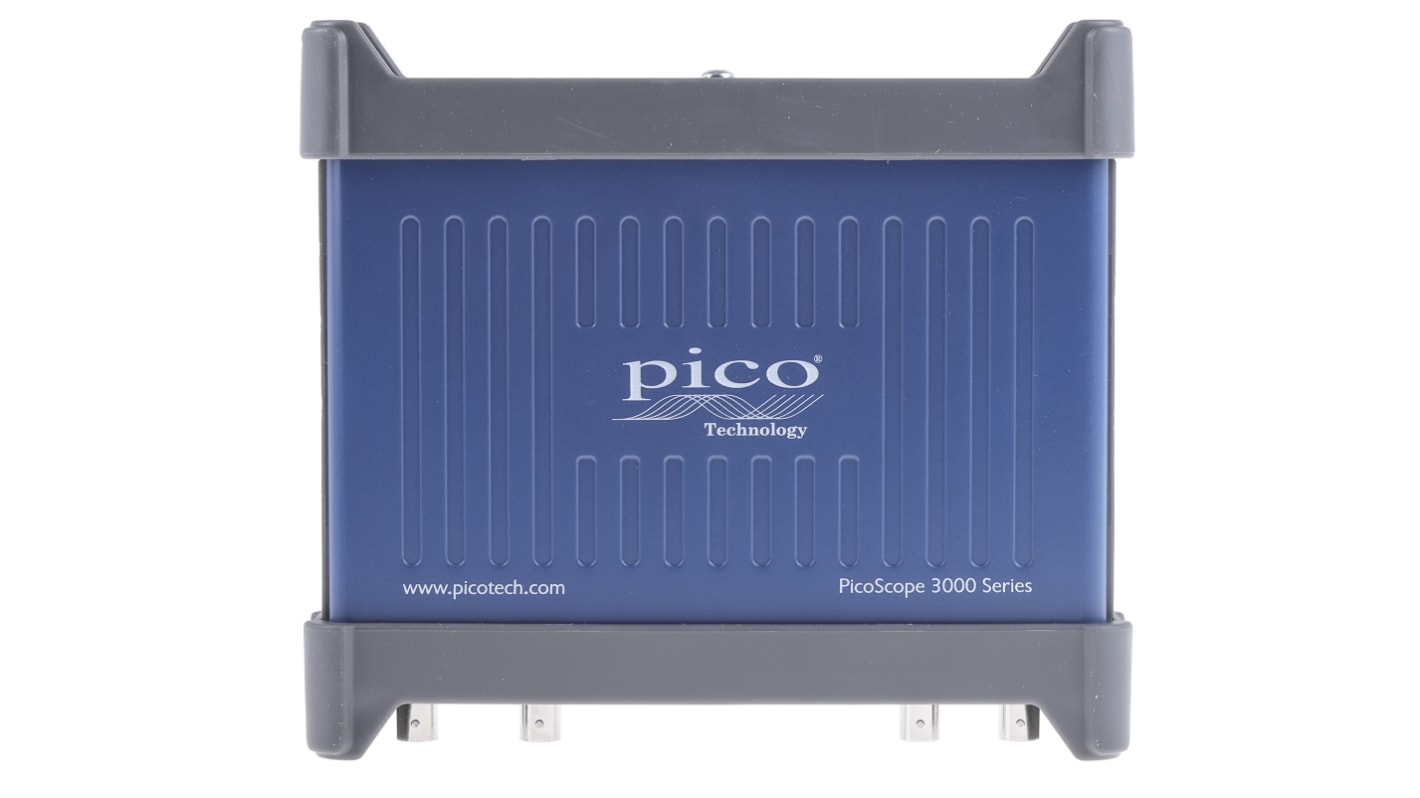

Pico Technology 3203D PicoScope 3000 Series Analogue PC Based Oscilloscope, 2 Analogue Channels, 50MHz
- RS 제품 번호:
- 846-3402
- 제조사 부품 번호:
- PicoScope 3203D
- 제조업체:
- Pico Technology
- RS 제품 번호:
- 846-3402
- 제조사 부품 번호:
- PicoScope 3203D
- 제조업체:
- Pico Technology
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항
Pico Technology Oscilloscopes
The Pico Technology 3000 series has a bandwidth of 50MHz. It is a 4-channel PC based, compact, USB-connected complete portable test system, which plugs into a laptop. It is compatible with PicoScope6 software to offer advanced and cost-effective solutions. This oscilloscope displays waveforms in a resizable window on the user's PC screen, creating an uncluttered space for multiple high-resolution analogues and digital traces. Saving, sharing and analysing waveforms is quick and simple using PC networking, storage and processing facilities. It also includes math channels, automatic measurements with statistics, spectrum analysis and colour persistence display mode and has built-in advanced digital triggering with pulse width, window, dropout, channel logic, digital pattern and other qualifiers, masks limit testing and alarms. Serial decoding supports SPI, I2C, I2S, RS-232/UART, CAN, LIN and FlexRay protocols on up to 20 analogue and digital channels, even with a mixture of protocols at the same time.
Supplied with:
Switchable x1/x10 probes (1 per analogue channel) in carrying case, Quick Start guide, software and reference CD, USB cables, power adaptor (with 4 analogue channel models only)
.
Supplied with:
Switchable x1/x10 probes (1 per analogue channel) in carrying case, Quick Start guide, software and reference CD, USB cables, power adaptor (with 4 analogue channel models only)
.
Features and Benefits
1GS/s real-time sampling
512MS buffer memory
100,000 waveforms per second
Arbitrary waveform generator
USB 3.0 connected and powered
Serial decoding and mask testing as standard
Hardware-accelerated update rates
512MS buffer memory
100,000 waveforms per second
Arbitrary waveform generator
USB 3.0 connected and powered
Serial decoding and mask testing as standard
Hardware-accelerated update rates
Applications
Design
Test
Education
Servicing
Monitoring
Fault finding
Repairs
Test
Education
Servicing
Monitoring
Fault finding
Repairs
Certifications
EN 61010-1:2010
WEEE certified
EN61326-1:2006
FCC Part 15 Subpart B
WEEE certified
EN61326-1:2006
FCC Part 15 Subpart B
사양
속성 | 값 |
---|---|
Bandwidth | 50MHz |
Digital/Analogue | Analogue |
Number of Analogue Channels | 2 |
Oscilloscope Type | PC Based |
Series | PicoScope 3000 |
Power Source | Mains |
Interface | CAN, IIC, LIN, RS232, SPI, UART, USB |
Minimum Vertical Sensitivity | 4mV/div |
Maximum Vertical Sensitivity | 4V/div |
Minimum Time Base | 1ns/div |
Vertical Resolution | 8 bit |
Weight | 500g |
Dimensions | 190 x 170 x 40mm |
