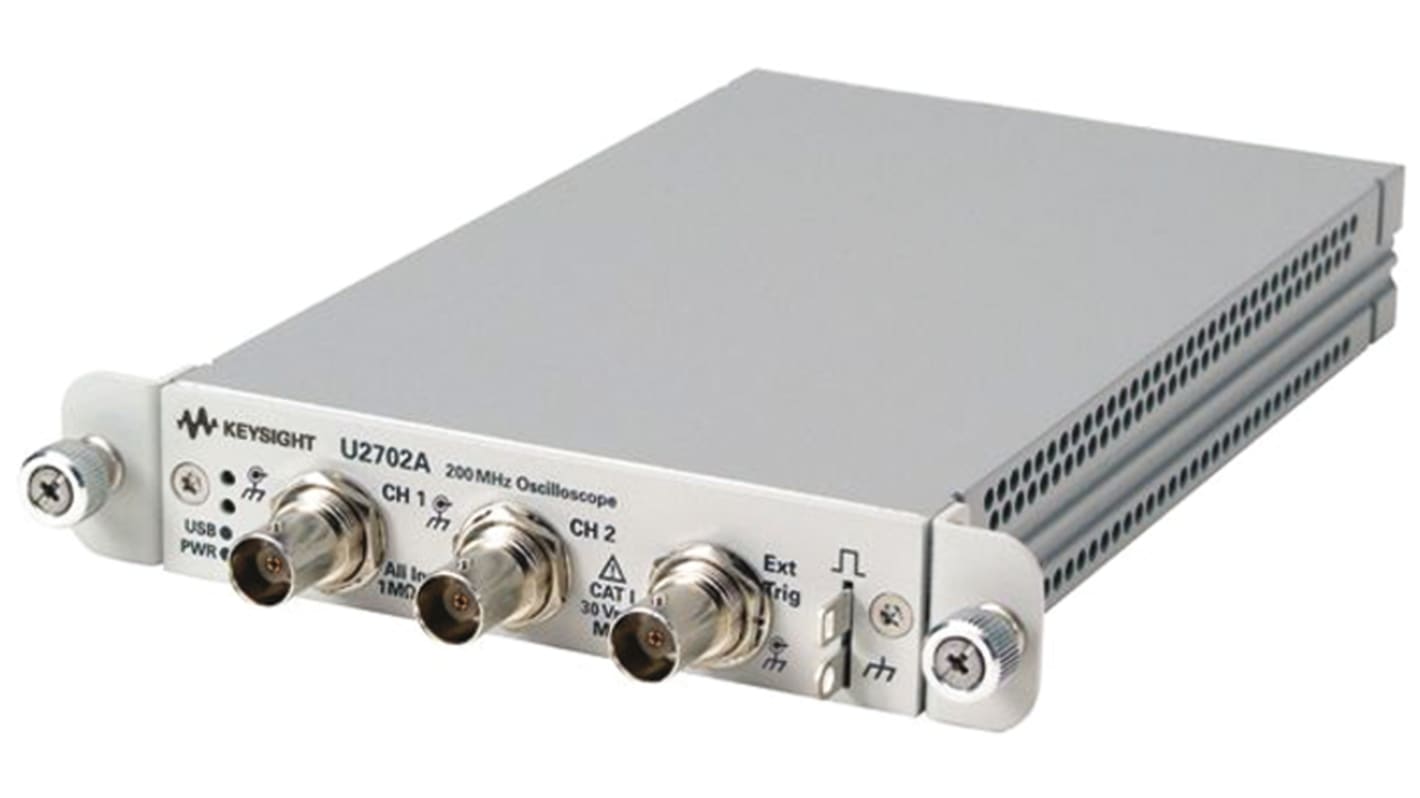

Keysight Technologies U2702A U2700A Series Analogue PC Based Oscilloscope, 2 Analogue Channels, 200MHz
- RS 제품 번호:
- 686-2081
- 제조사 부품 번호:
- U2702A
- 제조업체:
- Keysight Technologies
개 07/06/2024(일/월/년)에 홍콩에 입고되며, 그 후 1-2 영업일 이내에 발송.
추가완료!
단가 개당
₩4,651,261.846
수량 | 한팩당 |
1 + | ₩4,651,261.846 |
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 686-2081
- 제조사 부품 번호:
- U2702A
- 제조업체:
- Keysight Technologies
제정법과 컴플라이언스
제외
- COO (Country of Origin):
- MY
제품 세부 사항
Keysight Technologies modular Oscilloscope
The Keysight Technologies 200MHz USB modular oscilloscope enables waveform math functions, which enables easy waveform calculation. It has 2 analogue channels. This device is uniquely designed to accommodate your needs for flexibility with the dual-play function. Dual-play functionality allows you to use the oscilloscope as a standalone or to scale up the test system in a card cage with additional scopes or with Agilents other USB modular product offerings, thus providing a complete solution for system development.
Supplied with:
12V, 2A AC/DC power adaptor, power cord, USB Standard-A to Mini-B interface cable, 10:1 1.2m passive probe 150MHz (U2701A) or 300MHz (U2702A), L-mount kit (for use with modular product chassis 686-2075), Automation-Ready CD-ROM, USB Modular Products Quick Start Guide, Reference CD-ROM and Quick Reference Card, Certificate of Calibration.
Being several instruments in one small unit, PC-based oscilloscopes are lighter and more portable than traditional test equipment. A field engineer can thereby carry a complete electronics lab loaded onto a notebook computer.
PC Based Instruments:
Compact and portable
Can provide a large and detailed colour display on your PC monitor
Simultaneous views of scope, spectrum analyser and meter modes
The analogue intensity and digital colour display modes
Signal storage is limited only by the PC's memory
Supplied with:
12V, 2A AC/DC power adaptor, power cord, USB Standard-A to Mini-B interface cable, 10:1 1.2m passive probe 150MHz (U2701A) or 300MHz (U2702A), L-mount kit (for use with modular product chassis 686-2075), Automation-Ready CD-ROM, USB Modular Products Quick Start Guide, Reference CD-ROM and Quick Reference Card, Certificate of Calibration.
Being several instruments in one small unit, PC-based oscilloscopes are lighter and more portable than traditional test equipment. A field engineer can thereby carry a complete electronics lab loaded onto a notebook computer.
PC Based Instruments:
Compact and portable
Can provide a large and detailed colour display on your PC monitor
Simultaneous views of scope, spectrum analyser and meter modes
The analogue intensity and digital colour display modes
Signal storage is limited only by the PC's memory
Features and Benefits
Bandwidth is 200MHz
The sample rate is 1GSa/s per channel and 2GSa/s per half-channel
Input impedance is 1Mohm
Max. memory depth is 32Mpts
Compatibility with wide range of application development environments
Compatibility with Hi-Speed USB 2.0 and USBTMC-USB488 standards
Advanced triggering, including edge, pulse width and TV
Fast Fourier transfer (FFT) and waveform math functions
enables easy waveform calculation
8-bit resolution
Four math functions, including FFTs standard
Operating temperature ranges between 0°C and 50°C
Compact and portable size of 117mmx 180mm x 41mm (including rubber bumpers)
The sample rate is 1GSa/s per channel and 2GSa/s per half-channel
Input impedance is 1Mohm
Max. memory depth is 32Mpts
Compatibility with wide range of application development environments
Compatibility with Hi-Speed USB 2.0 and USBTMC-USB488 standards
Advanced triggering, including edge, pulse width and TV
Fast Fourier transfer (FFT) and waveform math functions
enables easy waveform calculation
8-bit resolution
Four math functions, including FFTs standard
Operating temperature ranges between 0°C and 50°C
Compact and portable size of 117mmx 180mm x 41mm (including rubber bumpers)
Certifications
IEC 61000/EN 61000 compatible
Canada: ICES-001:2004
Australia/New Zealand: AS/NZS
USA: UL61010-1: 2004 approved
Canada: ICES-001:2004
Australia/New Zealand: AS/NZS
USA: UL61010-1: 2004 approved
사양
속성 | 값 |
---|---|
Bandwidth | 200MHz |
Digital/Analogue | Analogue |
Number of Analogue Channels | 2 |
Oscilloscope Type | PC Based |
Series | U1600 |
Interface | USB |
Power Source | AC Adapter |
Minimum Vertical Sensitivity | 2mV/div |
Maximum Vertical Sensitivity | 5V/div |
Minimum Time Base | 1ns/div |
Sample Rate Random | 1 Gsps |
Record Length | 64M points/ch |
Dimensions | 180 x 117 x 41mm |
Weight | 534g |
Vertical Resolution | 8 bit |
Maximum Time Base | 50s/div |
Safety Category | CAT I 30V |
Rise Time | 1.75ns |
