- RS 제품 번호:
- 704-8138
- 제조사 부품 번호:
- SGD 24-M
- 제조업체:
- Lascar
- RS 제품 번호:
- 704-8138
- 제조사 부품 번호:
- SGD 24-M
- 제조업체:
- Lascar
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항

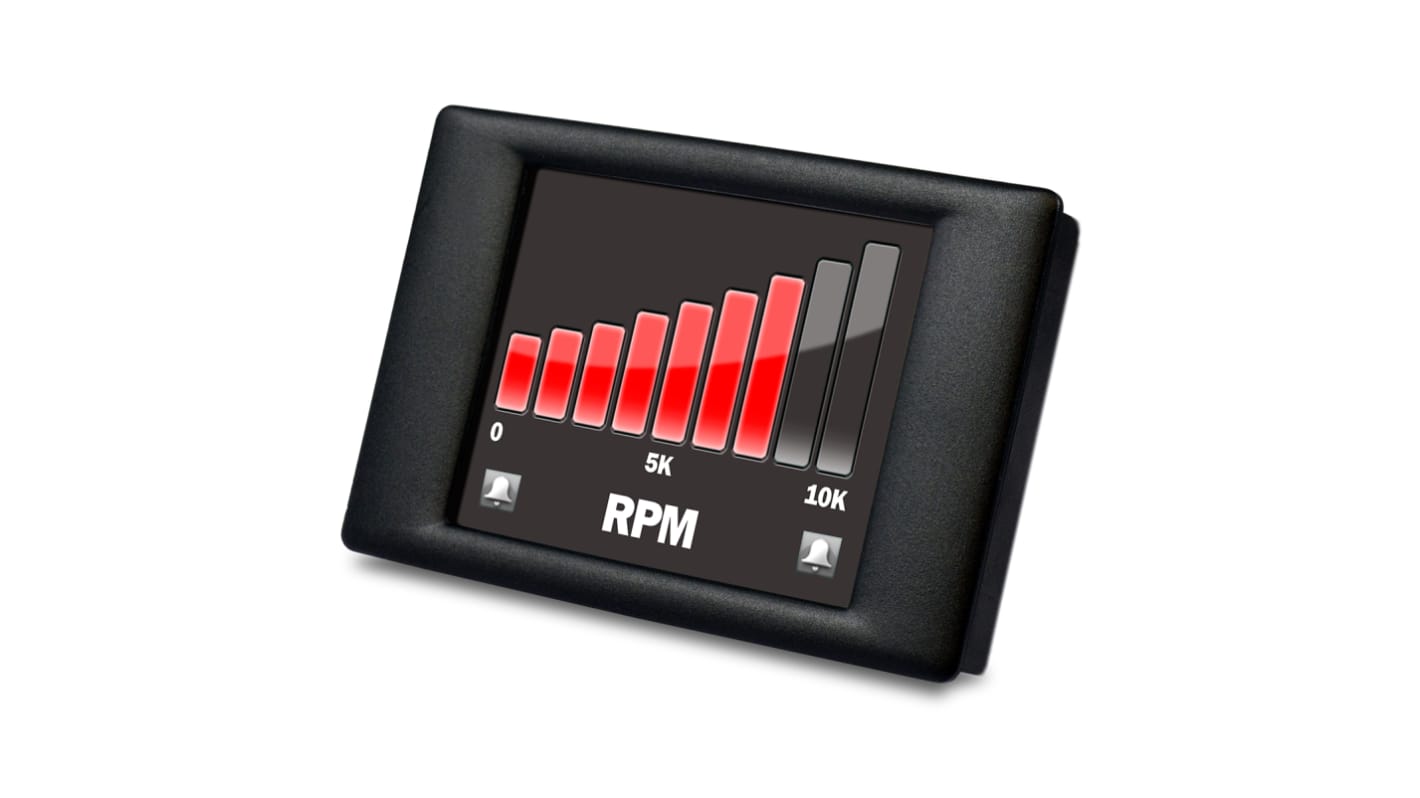

2.4" Programmable TFT Panel Meter
The SGD 24-M PanelPilot compatible smart graphics display features dual analogue inputs, alarm outputs and a 2.4" colour touchscreen display with USB programming interface. Using the PanelPilot software (available for Windows 7, 8.1 and 10) users can configure their device, choosing from a variety of voltmeter types including bar-graphs, tank level, analogue style and tend graphs.
Users can customise the colours, text labels, splash screen and input voltage scaling through the software and upload to SGD 24-M through a USB connection.
Users can customise the colours, text labels, splash screen and input voltage scaling through the software and upload to SGD 24-M through a USB connection.
Features and Benefits
2.4" colour TFT screen
Multiple voltmeter configurations included free
Easily program the display via the USB
Wide operating voltage of 4V - 30V d.c.
Measures voltage from 0 - 40V d.c.
Multiple voltmeter configurations included free
Easily program the display via the USB
Wide operating voltage of 4V - 30V d.c.
Measures voltage from 0 - 40V d.c.
Applications
Medical & Healthcare Equipment
Process Control & Automation
Scientific Equipment
Automotive
Energy Management Equipment
HVAC
Industrial Equipment
Process Control & Automation
Scientific Equipment
Automotive
Energy Management Equipment
HVAC
Industrial Equipment
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
CE certified
BS EN 61340-5-1:2007
CE certified
사양
속성 | 값 |
---|---|
Properties Measured | Voltage |
Display Type | LED |
Cutout Height | 46mm |
Cutout Width | 74mm |
Depth | 16.4mm |
Minimum Temperature | 0°C |
Maximum Temperature | +40°C |
Measurement Range | 0 to 40V d.c. |
Series | PanelPilot |
Meter Type | Digital |
