- RS 제품 번호:
- 197-7456
- 제조사 부품 번호:
- 508-00-20-00
- 제조업체:
- Parker
단종
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 197-7456
- 제조사 부품 번호:
- 508-00-20-00
- 제조업체:
- Parker
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- GB
제품 세부 사항

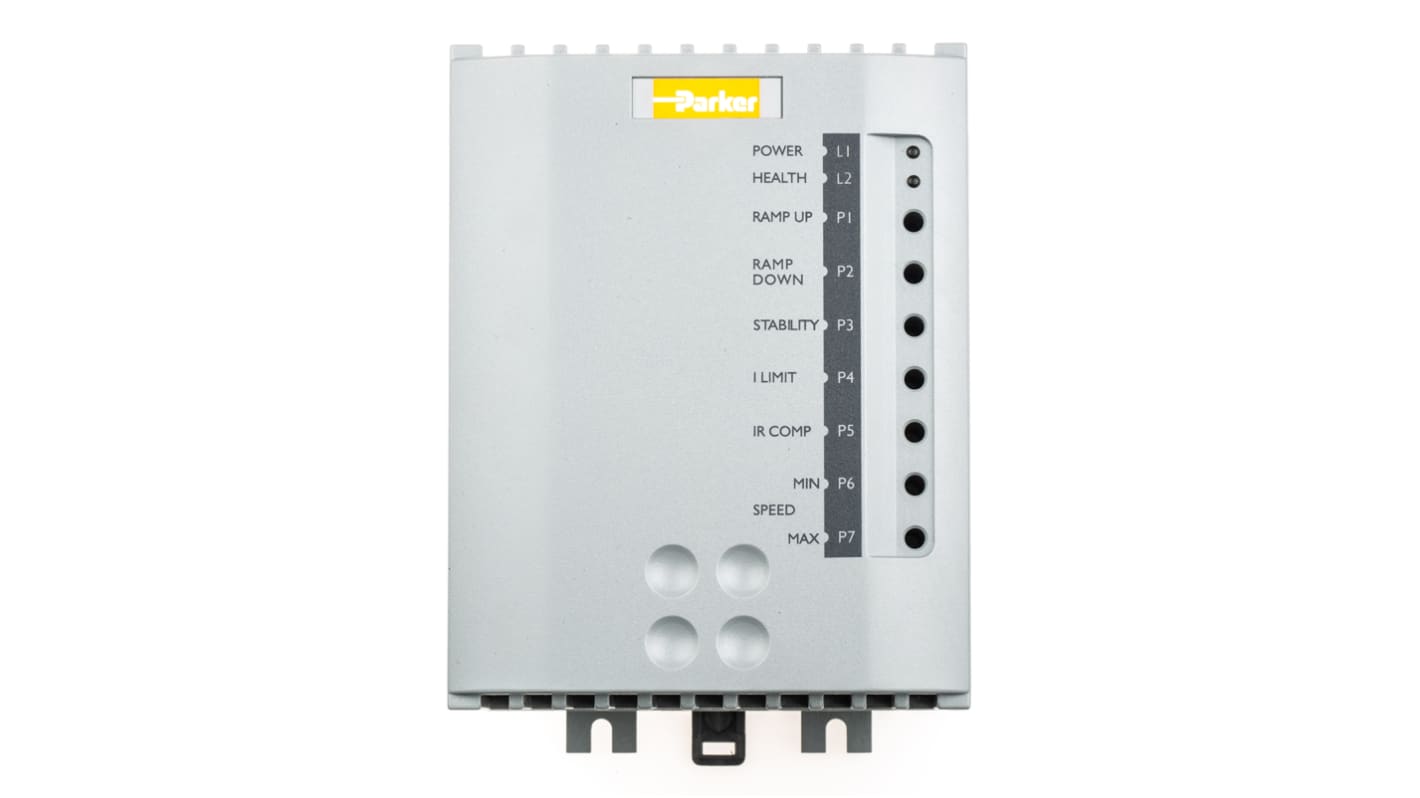

SSD 506, 507 & 508 Speed Controllers
Compact non-isolated motor speed control modules for dc. shunt wound and permanent magnet field motors.
DIN rail mounting
Suitable for 110//120 or 220/240V single phase ac. supplies (switch selectable)
Fully isolated heatsink
Control signals available for zero speed, drive health and speed trim
Adjustable speed ramp up and ramp down times (1-15 secs)
Adjustable motor maximum and minimum speed limits
Adjustable armature current limit (0-100%)
Adjustable I.R. compensation (for armature voltage feedback control)
Switch selectable speed range
Switch selectable feedback mode either tacho-generator or armature voltage
Torque control of the motor is achieved by regulation of the armature current
Stall timer will isolate the motor current after 15 seconds to prevent the motor overheating
Inbuilt protection devices, high energy transient suppression, fuseless overcurrent protection above 200% overload
IP20 protection rating
Suitable for 110//120 or 220/240V single phase ac. supplies (switch selectable)
Fully isolated heatsink
Control signals available for zero speed, drive health and speed trim
Adjustable speed ramp up and ramp down times (1-15 secs)
Adjustable motor maximum and minimum speed limits
Adjustable armature current limit (0-100%)
Adjustable I.R. compensation (for armature voltage feedback control)
Switch selectable speed range
Switch selectable feedback mode either tacho-generator or armature voltage
Torque control of the motor is achieved by regulation of the armature current
Stall timer will isolate the motor current after 15 seconds to prevent the motor overheating
Inbuilt protection devices, high energy transient suppression, fuseless overcurrent protection above 200% overload
IP20 protection rating
Note
The mains supply must be fused.
사양
속성 | 값 |
---|---|
Phase | 1 |
Supply Voltage | 110 → 120 V ac, 220 → 240 V ac |
Current Rating | 12 A |
Voltage Rating | 210 V dc |
