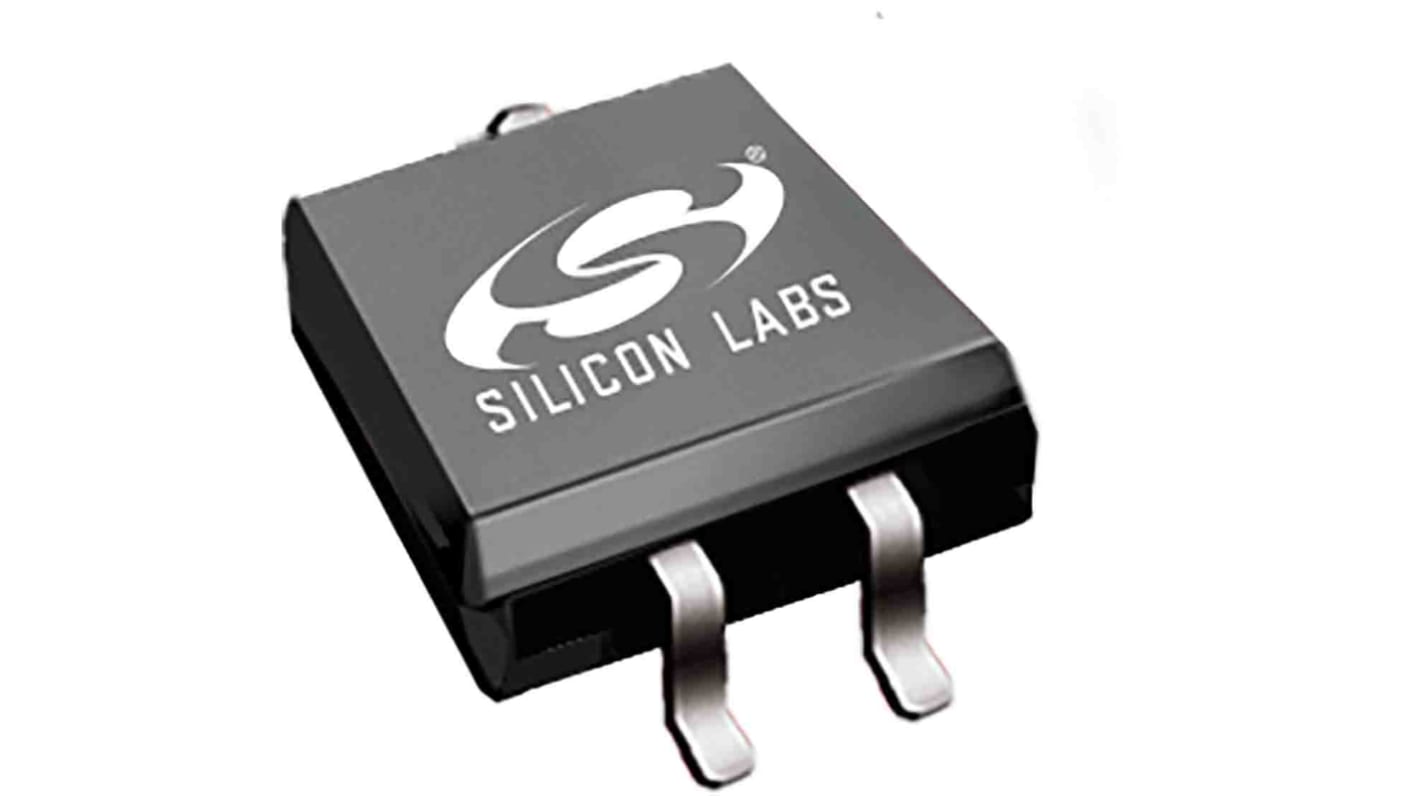

Silicon Labs Surface Mount Hall Effect Sensor, SOT-23, 3-Pin
- RS 제품 번호:
- 196-1381P
- 제조사 부품 번호:
- SI7201-B-32-IV
- 제조업체:
- Silicon Labs
일시 품절-다음 입고 날짜는 08/10/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당(테이프로 공급됨)
₩1,114.285
| 수량 | 한팩당 |
| 75 - 125 | ₩1,114.285 |
| 150 + | ₩1,090.137 |
- RS 제품 번호:
- 196-1381P
- 제조사 부품 번호:
- SI7201-B-32-IV
- 제조업체:
- Silicon Labs
제정법과 컴플라이언스
- COO (Country of Origin):
- PH
제품 세부 사항
The Si7201-32-IV , Omnipolar Switch Magnetic Sensor is designed to simplify magnetic switch/latch needs. The low power and high sensitivity of this device make it ideally suited for many applications. The Si7201-32-IV supports a wide temperature range of -40 to +125 °C.
Applications:
Replacement of reed switches in consumer, and security applications
Position sensing of HVAC knob, door locks, windows, and other mechanical devices
BLDC motor control
Camera image stabilization, zoom, and autofocus
Fluid level sensing
Control knobs and selector switches
General-purpose mechanical position sensing
Replacement of reed switches in consumer, and security applications
Position sensing of HVAC knob, door locks, windows, and other mechanical devices
BLDC motor control
Camera image stabilization, zoom, and autofocus
Fluid level sensing
Control knobs and selector switches
General-purpose mechanical position sensing
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Sensor Type | Hall Effect Sensors |
| Mounting Type | Surface Mount |
| Magnetic Type | Latch |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Supply Voltage | 1.71 V |
| Package Type | SOT-23 |
| Pin Count | 3 |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
