- RS 제품 번호:
- 144-6544
- 제조사 부품 번호:
- Si7210-B-04-IVR
- 제조업체:
- Silicon Labs
일시 품절-다음 입고 날짜는 11/10/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(5개가 1팩안에)
₩1,630.031
수량 | 한팩당 | 한팩당* |
5 - 745 | ₩1,630.031 | ₩8,151.877 |
750 - 1495 | ₩1,593.808 | ₩7,972.488 |
1500 + | ₩1,561.035 | ₩7,801.723 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 144-6544
- 제조사 부품 번호:
- Si7210-B-04-IVR
- 제조업체:
- Silicon Labs
참조 문서
제정법과 컴플라이언스
제품 세부 사항
Si7210 I2C Hall Effect Magnetic Sensors
The Si7210 family of Hall-effect magnetic sensors from Silicon Labs features an I2C interface which enables full configurability of the sensor operate and release points and allows measurement of the magnetic field strength. The Si7210 sensor integrates a chopper-stabilized Hall element, low-noise amplifier, 13-bit ADC and comparator in a single compact package with I2C functionality.
Digital I2C Interface with 4 selectable addresses
Optional Digital Alert output
Optional ratiometric analogue output
Optional Tamper detect versions
Wide 1.7 to 5.5 V operating voltage range
Industry-leading sensitivity allows use with larger air gaps and smaller magnets
Low power consumption to improve operating life in battery powered applications

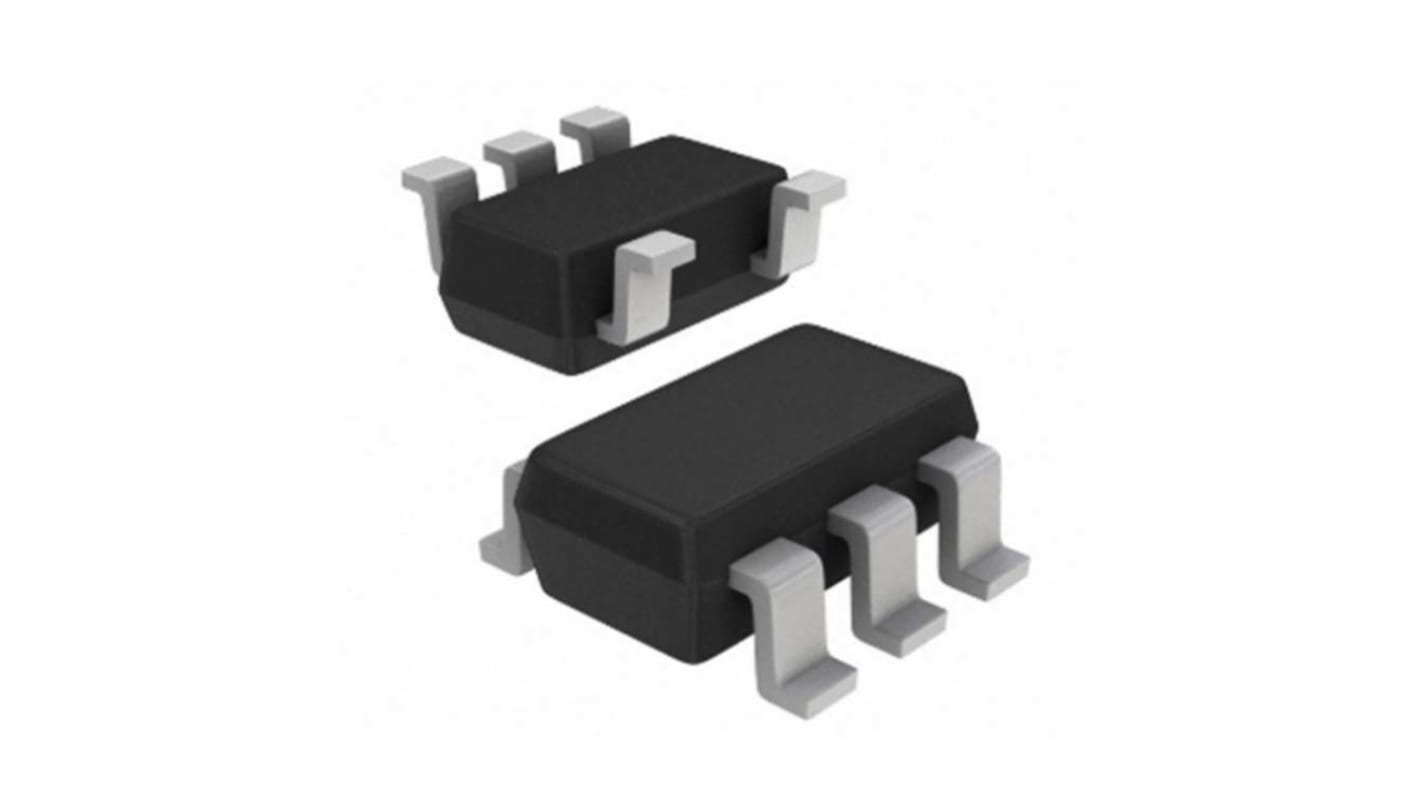

Compact 5-pin SOT23 package
AEC-Q100 Qualified for automotive applications
Optional Digital Alert output
Optional ratiometric analogue output
Optional Tamper detect versions
Wide 1.7 to 5.5 V operating voltage range
Industry-leading sensitivity allows use with larger air gaps and smaller magnets
Low power consumption to improve operating life in battery powered applications
Compact 5-pin SOT23 package
AEC-Q100 Qualified for automotive applications
The Si7210 family of Hall effect magnetic sensors from Silicon Labs combines a chopper-stabilized Hall element with a low-noise analog amplifier, 13-bit analog-to-digital converter, and an I 2C interface. Leveraging Silicon Labs' proven CMOS design techniques, the Si7210 family incorporates digital signal processing to provide precise compensation for temperature and offset drift. Compared with existing Hall effect sensors, the Si7210 family offers industry-leading sensitivity, which enables use with larger air gaps and smaller magnets.
High-Sensitivity Hall Effect Sensor
High-Precision 13-bit Signal Path
Output Bandwidth up to 20 kHz
Sensitivity Drift < ±5% over 0-70 °C
Optional Digital Alert Output
Optional Ratiometric Analog Output
Temperature Sensor Data also available
High-Precision 13-bit Signal Path
Output Bandwidth up to 20 kHz
Sensitivity Drift < ±5% over 0-70 °C
Optional Digital Alert Output
Optional Ratiometric Analog Output
Temperature Sensor Data also available
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Hall Effect Sensors, Silicon Labs
사양
속성 | 값 |
---|---|
Sensor Type | Hall Effect Sensors |
Mounting Type | Surface Mount |
Maximum Operating Supply Voltage | 5.5 V |
Minimum Operating Supply Voltage | 1.7 V |
Package Type | SOT-23 |
Pin Count | 5 |
Maximum Operating Temperature | +125 °C |
Minimum Operating Temperature | -40 °C |
Automotive Standard | AEC-Q100 |
