- RS 제품 번호:
- 814-1187
- 제조사 부품 번호:
- BMF 204K-PS-C-2A-SA2-S49-00,3
- 제조업체:
- BALLUFF
현재 시스템 에러로 재고 수량 확인이 불가합니다. krenquiry@rs-components.com 에 문의하시거나 잠시후에 다시 시도해주시기 바랍니다.
추가완료!
단가 개당
₩85,261.807
수량 | 한팩당 |
1 + | ₩85,261.807 |
- RS 제품 번호:
- 814-1187
- 제조사 부품 번호:
- BMF 204K-PS-C-2A-SA2-S49-00,3
- 제조업체:
- BALLUFF
참조 문서
제정법과 컴플라이언스
제품 세부 사항

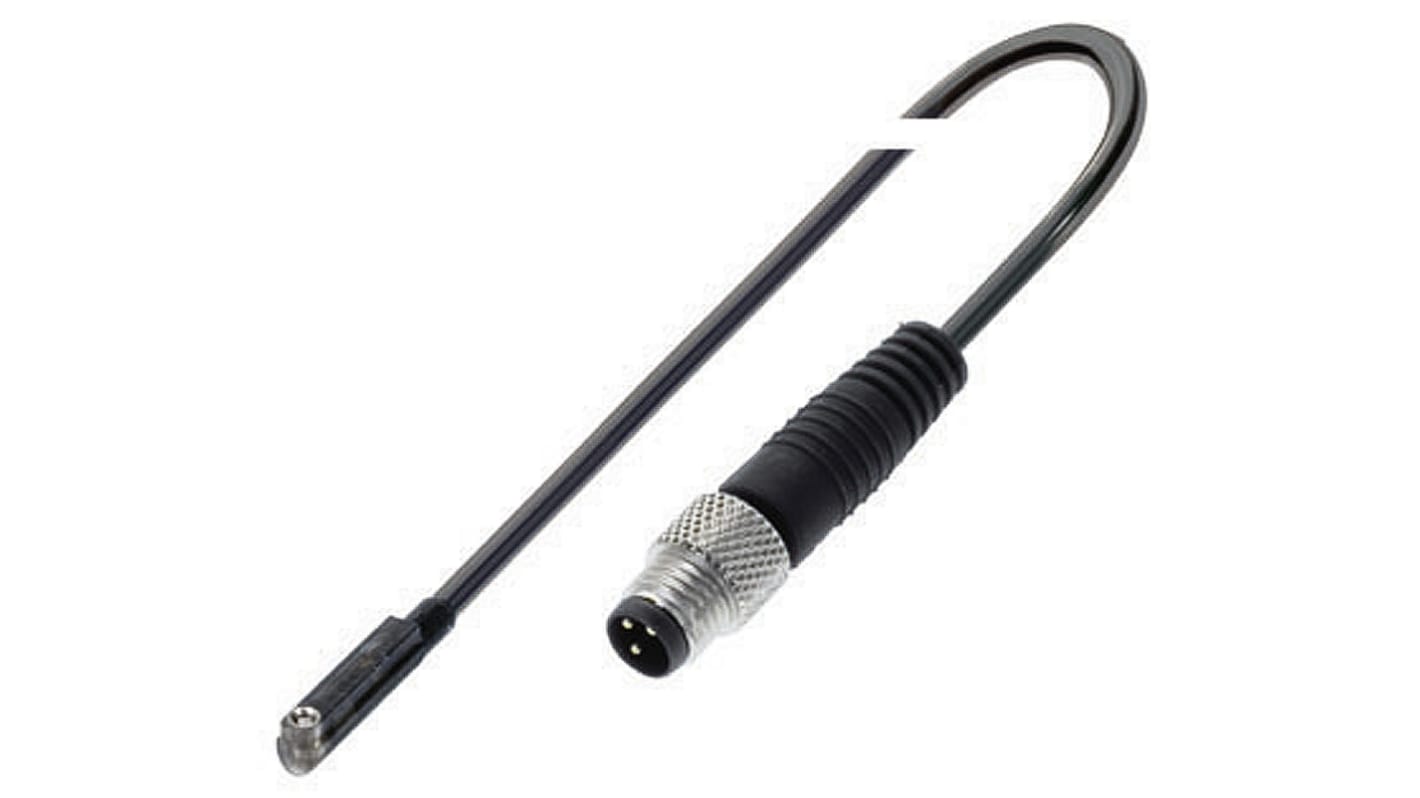

BMF Pneumatic Cylinder Position Sensors
This range of magnetic position sensors from the BALLUFF BFM series are specifically designed to detect the position of the piston along a pneumatic cylinder with in industrial environments.
Features and benefits
0.3 m pre-cabled
M12 or M8 connector
3 wire DC configuration
Short-circuit protected
Includes function indicator
사양
속성 | 값 |
---|---|
Supply Voltage | 10 → 30 V dc |
IP Rating | IP67 |
Overall Height | 16.8mm |
Overall Width | 3.65mm |
Overall Depth | 4.5mm |
Minimum Operating Temperature | -25°C |
Mounting Type | Cable Mount |
Maximum Operating Temperature | +85°C |
Switching Frequency | 7 kHz |
