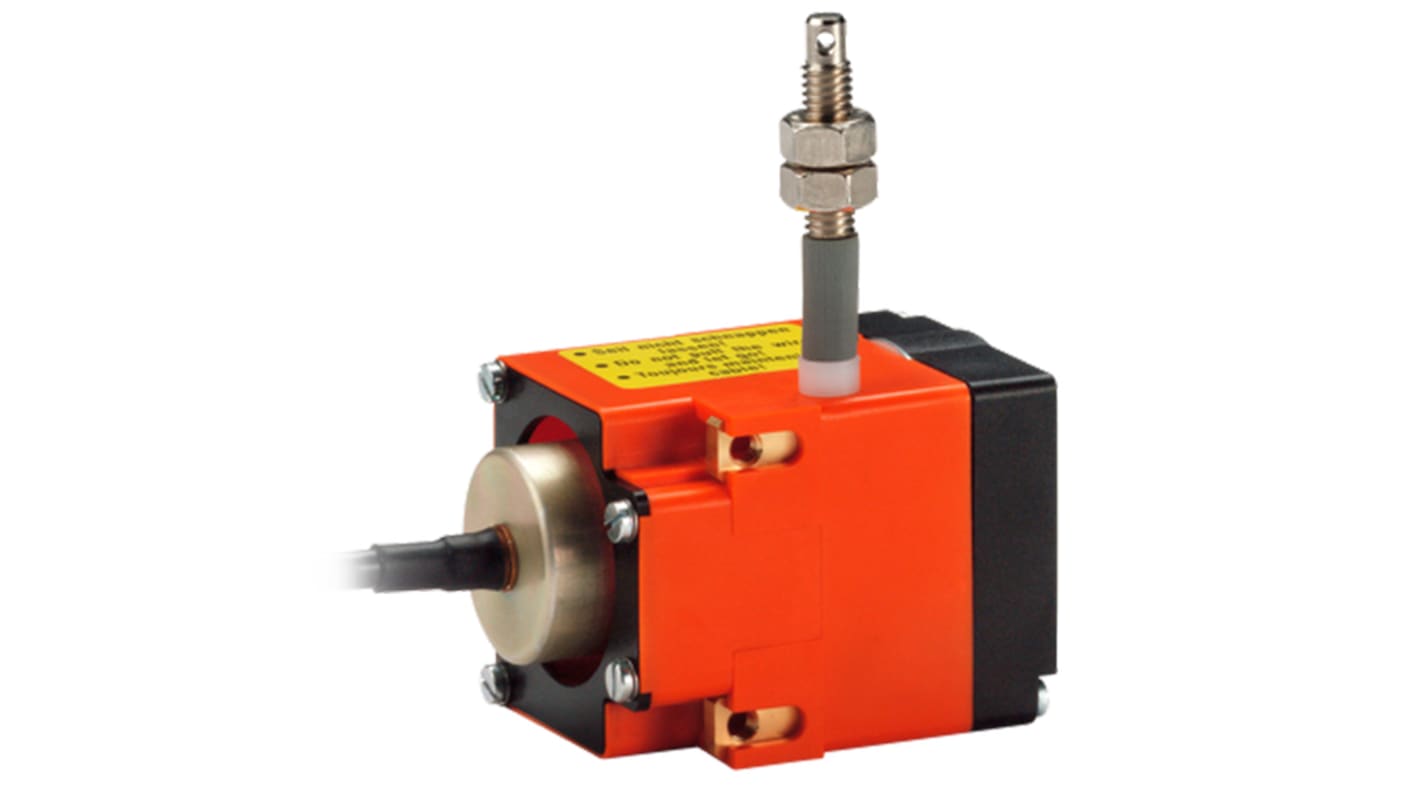

Kübler Linear Measuring Linear Measuring Encoder, Push Pull Signal
- RS 제품 번호:
- 447-6271
- 제조사 부품 번호:
- D5.2501.2441.1000
- 제조업체:
- Kübler
- RS 제품 번호:
- 447-6271
- 제조사 부품 번호:
- D5.2501.2441.1000
- 제조업체:
- Kübler
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
Miniature cable pull sensor, incremental
Temperature and ageing compensation
Short-circuit proof outputs
Reverse polarity protection at operating voltage input
1000 pulses/revolution
Output circuit as controller with inversion
Measured length up to 2000 mm
Robust design
Dimensions: 74 x 40 x 40 mm
Including steel cable
Short-circuit proof outputs
Reverse polarity protection at operating voltage input
1000 pulses/revolution
Output circuit as controller with inversion
Measured length up to 2000 mm
Robust design
Dimensions: 74 x 40 x 40 mm
Including steel cable
Cable pull sensor for length or distance measurement in machine and plant construction.
Standards
CE in accordance with EN50082-2, EN50081-2 and EN55011 Class B
사양
속성 | 값 |
|---|---|
| Encoder Technology | Linear Measuring |
| Output Signal Type | Push Pull |
| Supply Voltage | 8 → 24 V dc |
| IP Rating | IP64 |
| Overall Height | 40mm |
| Overall Width | 55mm |
| Overall Depth | 40mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
| Switching Frequency | 160 kHz |
